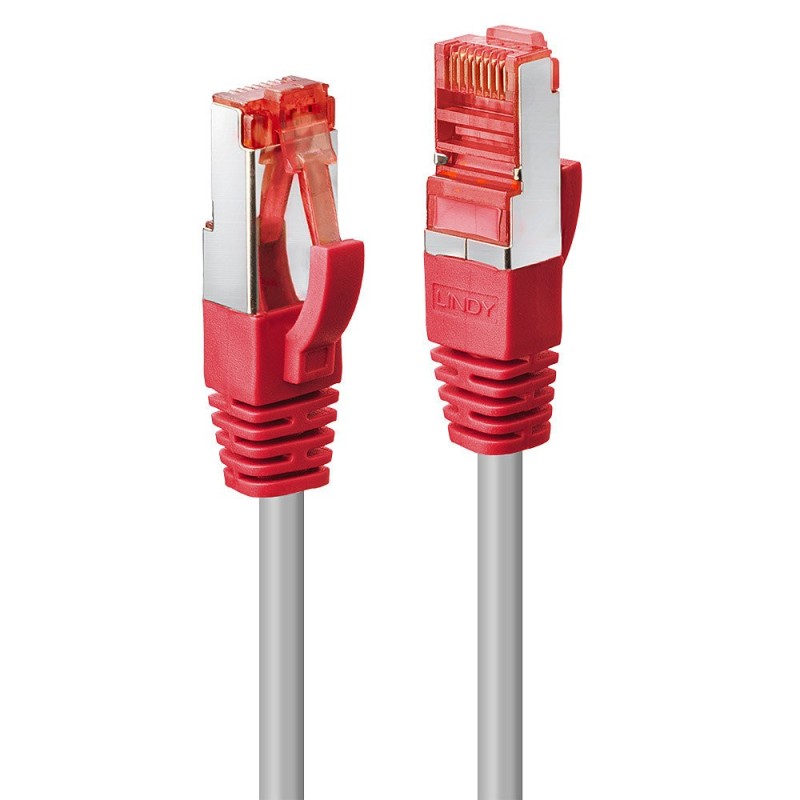

47838 - 813441

Cat.6 S/FTP network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
These cables feature a crossover connection allowing two devices of the same type (PC_s, network switches) to connect to each other. Intentionally crossed wiring in the cable connects the transmission signals at one end of the cable to the receiving end.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.

Lindy 47838. Cable length: 78.7" (2 m), Cable standard: Cat6, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Nickel/Gold, Product color: Gray

Cable length	78.7" (2 m)
Cable standard	Cat6
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Product color	Gray
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Nickel/Gold
Connector shielding	Yes
Connector shield material	Aluminum
Jacket material	Polyvinyl chloride (PVC)
Conductor material	Copper
AWG wire size	27
Frequency	250 MHz
Bend radius (min)	2.91" (7.4 cm)
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 75 °C
Certification	RoHS, REACH, UL, California Proposition 65
Outer diameter	0.244" (6.2 mm)
Connector 1 dimensions (WxDxH)	0.457 x 0.898 x 0.327" (11.6 x 22.8 x 8.3 mm)
Connector 2 dimensions (WxDxH)	0.457 x 0.898 x 0.327" (11.6 x 22.8 x 8.3 mm)
Package type	Polybag
Harmonized System (HS) code	84733080
