Description

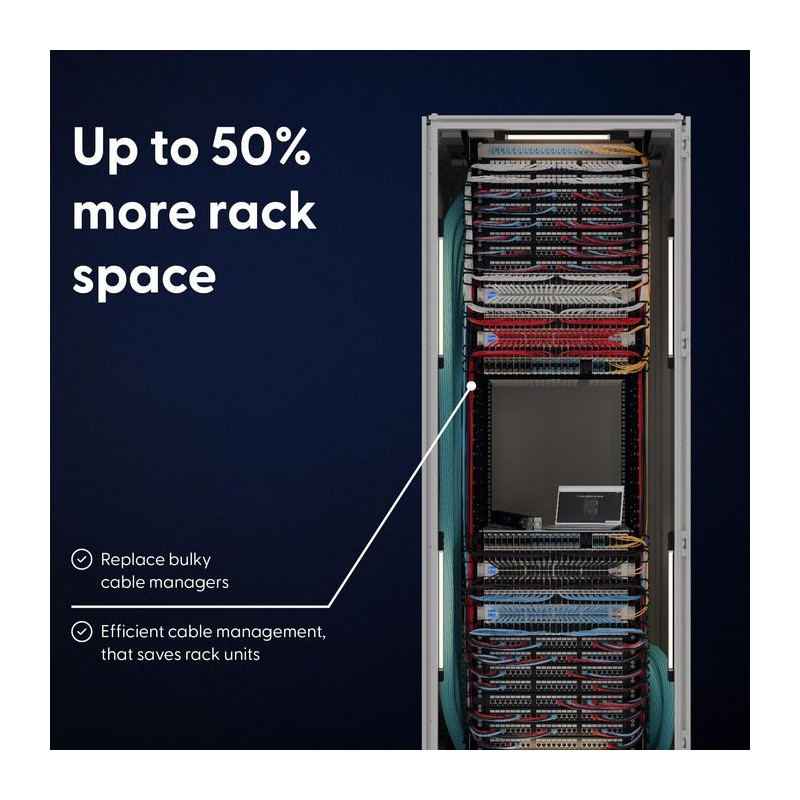

The patchbox.one is the ultimate cable management solution for your network rack. With 24 retractable cables, it keeps your rack organized in the long term, making your IT more cost-efficient. With this all-in-one solution, you can use up to 50% more rack space, reduce server downtimes drastically and make installation, maintenance & troubleshooting up to 10x faster. Our Cat.6a Cables meet the ISO standards, and you can power devices with PoE (STP) and PoE++ (UTP) or choose the most flexible and bend-insensitive Fiber Optic Cables available, made from Corning® ClearCurve® Fiber. Our Cat.6a cables are available in 8 different colours (black, blue, red, green, yellow, white, grey, purple) and our Fiber Optic Cables as OS2 and OM4 with LC-LC and LC-SC connectors.
- • Keep your rack forever organized • Up to 10x faster installation & troubleshooting • Up to 50% more space • ISO/IEC 11801 Channel Class Ea • 10-Year Warranty on PATCHBOX & Cables
Specifications
Features
| AWG wire size | 30 |
| Bend radius (min) | 1.2 cm |
| Cable length | 0.8 m |
| Cable shape | Flat |
| Cable shielding | U/UTP (UTP) |
| Cable standard | Cat6a |
| Certification | ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel |
| Conductor material | Copper |
| Connector 1 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 | RJ-45 |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Data transfer rate | 10000 Mbit/s |
| Housing material | Acrylonitrile butadiene styrene (ABS)/Polyoxymethylene (POM)/Steel |
| Jacket material | Polyvinyl chloride (PVC) |
| Networking standards | IEEE 802.3bt |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -20 - 60 °C |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Product colour | Violet |
| Rack capacity | 8U |
| Type | Cable management panel |
Packaging content
| Cables included | LAN (RJ-45) |
| Packaging content | 1 x patchbox.one / Frame/2 x /dev/mount/24 x patchbox.one / Cassette / 8RU / UTP / Violet/6 x Patchcatch |
| Quantity per pack | 1 pc(s) |
Vendor information
| Brand Name | PATCHBOX |
| Warranty | 10 |
Product Details
P36UTPXC6AX24V
1 Item
New
Data sheet
- Packaging content
- 1 x patchbox.one / Frame/2 x /dev/mount/24 x patchbox.one / Cassette / 8RU / UTP / Violet/6 x Patchcatch
- Netzwerkstandards
- IEEE 802.3bt
- Stromversorgung über Ethernet (PoE)
- Yes
- Cable shape
- Flat
- Kabel enthalten
- LAN (RJ-45)
- Zertifizierung
- ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel
- Jackenmaterial
- Polyvinyl chloride (PVC)
- Kabelabschirmung
- U/UTP (UTP)
- Kabelstandard
- Cat6a
- Leitermaterial
- Copper
- Gehäusematerial
- Acrylonitrile butadiene styrene (ABS)/Polyoxymethylene (POM)/Steel
- Rack-Kapazität
- 8U
- Beschichtung der Steckerkontakte
- Gold
- Kabellänge
- 0.8 m
- Stecker 1
- RJ-45
- Stecker 1 Geschlecht
- Male
- Stecker 2
- RJ-45
- Stecker 2 Geschlecht
- Male
- AWG-Drahtgröße
- 30
- Typ
- Cable management panel
- Brand Name
- PATCHBOX
- Warranty
- 10
- Betriebstemperatur (TT)
- -20 - 60 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 10 - 90 %
- Datenübertragungsrate
- 10000 Mbit/s
- Menge pro Packung
- 1 Stück(e)
- Produktfarbe
- Violet
- Biegeradius (min)
- 1.2 cm
- Power over Ethernet (PoE) type supported
- PoE++ (4PPoE)
Specific References
- EAN13
- 4262427630703
- MPN
- PONEX8UTPVI
