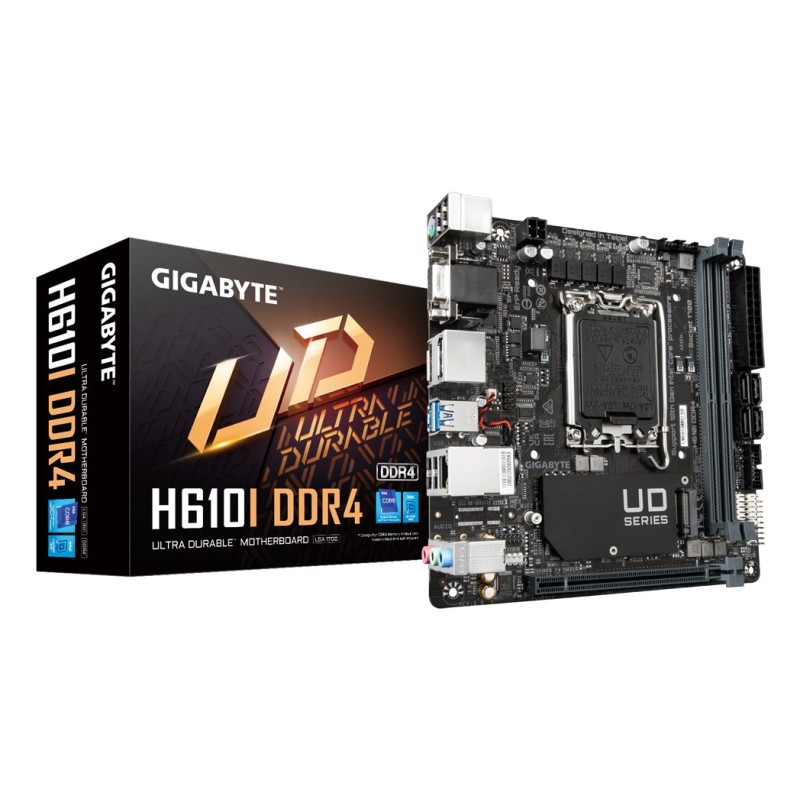

H610I_DDR4

Data sheet

Product color

Brown

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Component for

PC

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

Microphone in

Yes

Headphone outputs

3

VGA (D-Sub) ports quantity

1

DisplayPorts quantity

2

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Harmonized System (HS) code

84733020

Processor manufacturer

Intel

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G

Number of memory slots

2

Memory slots type

DIMM

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DVI-D ports quantity

0

PS/2 ports quantity

1

Wi-Fi

No

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Number of battery cells

1

Memory channels

Dual-channel

Maximum internal memory supported by processor

64 GB

Maximum resolution

4096 x 2304 pixels

Width

6.69" (170 mm)

Height

1.38" (35 mm)

Country of origin

China

Supported storage drive interfaces

M.2, SATA III

Depth

6.69" (170 mm)

Package weight

25.1 oz (711 g)

Warranty period

3 year(s)

Package width

8.74" (222 mm)

Package depth

7.09" (180 mm)

Package height

2.56" (65 mm)

USB connector type

USB Type-A

HDMI version

2.0

DisplayPort version

1.2

Cables included

SATA

Battery type

CR2032

Battery weight

0.106 oz (3 g)

Batteries included

Yes

Total number of SATA connectors

4

Number of HDDs supported

4

Maximum internal memory

64 GB

Bundled software

Norton Internet Security (OEM version), LAN bandwidth management software

Number of displays supported

3

DirectX version

12.0

HDCP

Yes

Supported processor sockets

LGA 1700

Ethernet interface type

Gigabit Ethernet

Supported memory types

DDR4-SDRAM

Supported memory clock speeds

2133,2400,2666,2933,3000,3200 MHz

Quantity per shipping (inner) case

1 pc(s)

Audio output channels

7.1 channels

ECC сompatibility

ECC & Non-ECC

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

Motherboard form factor

mini ITX

Motherboard chipset family

Intel

Motherboard chipset

Intel H610 Express

Number of M.2 (M) slots

1

BIOS type

UEFI AMI

ACPI version

5.0

Front panel audio connector

Yes

TPM connector

Yes

BIOS memory size

256 Mbit

Parallel processing technology support

Not supported

Clear CMOS jumper

Yes

Chassis intrusion connector

Yes

Serial port headers

1

12V power connector

Yes

System Management BIOS (SMBIOS) version

2.7

PCI Express x16 slots

1

PC health monitoring

Fan, Temperature, Voltage

Supported storage drive types

HDD & SSD

Number of storage drives supported

5

RGB LED pin header

Yes

Desktop Management Interface (DMI) version

2.7

Supported memory clock speed (max)

3200 MHz

Lithium weight per battery

0.00247 oz (0.0700 g)

Specific References

UPC

889523031490

EAN13

4719331834562

MPN

H610I DDR4
