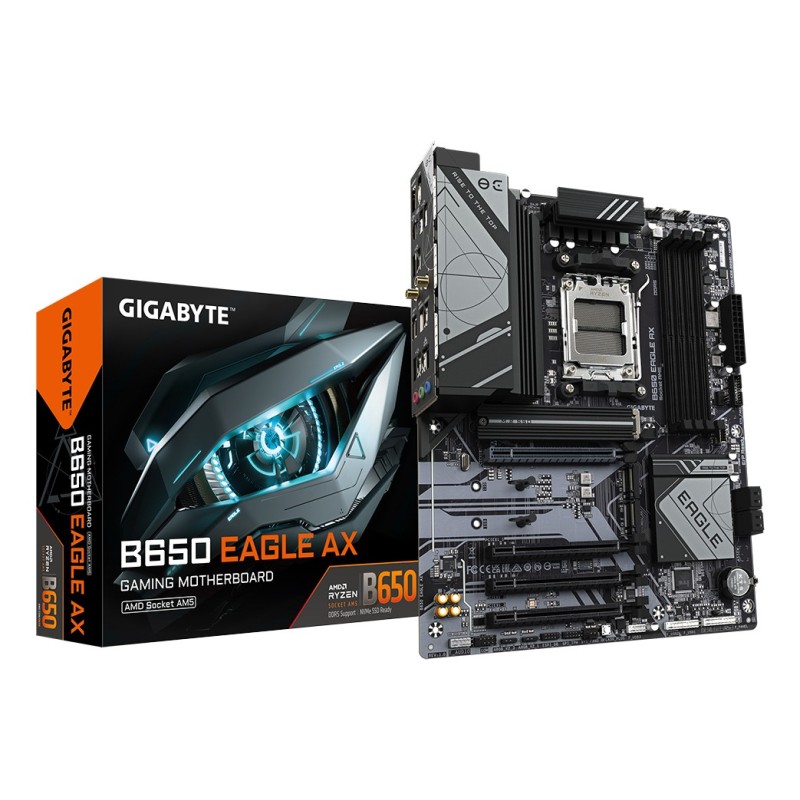

B650_EAGLE_AX

Data sheet

Product color

Brown

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Component for

PC

USB 2.0 ports quantity

6

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

HDMI ports quantity

1

Microphone in

Yes

Headphone outputs

1

VGA (D-Sub) ports quantity

0

DisplayPorts quantity

1

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Number of memory slots

4

Memory slots type

DIMM

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DVI-D ports quantity

0

PS/2 ports quantity

1

Wi-Fi

Yes

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Number of battery cells

1

Memory channels

Dual-channel

Maximum resolution

4096 x 2160 pixels

Width

12" (305 mm)

Height

1.38" (35 mm)

Country of origin

China

Power source type

ATX

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 10

Depth

9.61" (244 mm)

Package weight

4.28 lbs (1.94 kg)

Warranty period

3 year(s)

Package width

13.2" (335 mm)

Package depth

10.6" (270 mm)

Package height

3.15" (80 mm)

HDMI version

2.1

DisplayPort version

1.4

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Bluetooth

Yes

Bluetooth version

5.3

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Battery type

CR2032

Battery weight

0.106 oz (3 g)

Batteries included

Yes

Number of HDDs supported

4

Maximum internal memory

256 GB

Bundled software

Norton Internet Security (OEM version)
LAN bandwidth management software

DirectX version

12.0

HDCP

Yes

Supported processor sockets

Socket AM5

Ethernet interface type

Gigabit Ethernet

Supported memory types

DDR5-SDRAM

Supported memory clock speeds

7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz

Line-in

Yes

Quantity per shipping (inner) case

1 pc(s)

Audio output channels

7.1 channels

ECC сompatibility

Non-ECC

Unbuffered memory

Yes

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of SATA III connectors

4

Front panel connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

3

EPS power connector (8-pin)

Yes

LAN controller

Realtek RTL8111H

Motherboard form factor

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

PCI Express x16 (Gen 3.x) slots

3

Number of M.2 (M) slots

3

BIOS type

UEFI AMI

ACPI version

5.0

Screws included

Yes

Front panel audio connector

Yes

TPM connector

Yes

Audio chip

Realtek ALC897

BIOS memory size

256 Mbit

Parallel processing technology support

Not supported

PCI Express x16 (Gen 4.x) slots

1

Clear CMOS jumper

Yes

Serial port headers

1

12V power connector

Yes

System Management BIOS (SMBIOS) version

2.7

RAID support

Yes

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Supported storage drive types

HDD & SSD

Number of storage drives supported

7

Discrete graphics support

Yes

RGB LED pin header

Yes

WiFi-AP antenna jack

2

Desktop Management Interface (DMI) version

2.7

WLAN controller model

Realtek RTL8852CE

Supported memory clock speed (max)

7600 MHz

Lithium weight per battery

0.00247 oz (0.0700 g)

Antenna included

Yes

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

Maximum internal memory per slot

64 GB

Number of water pump connectors

2

Number of RGB LED pin headers

4

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

Number of CPU fan connectors

2

Specific References

UPC

889523041703

EAN13

4719331860158

MPN

B650 EAGLE AX
