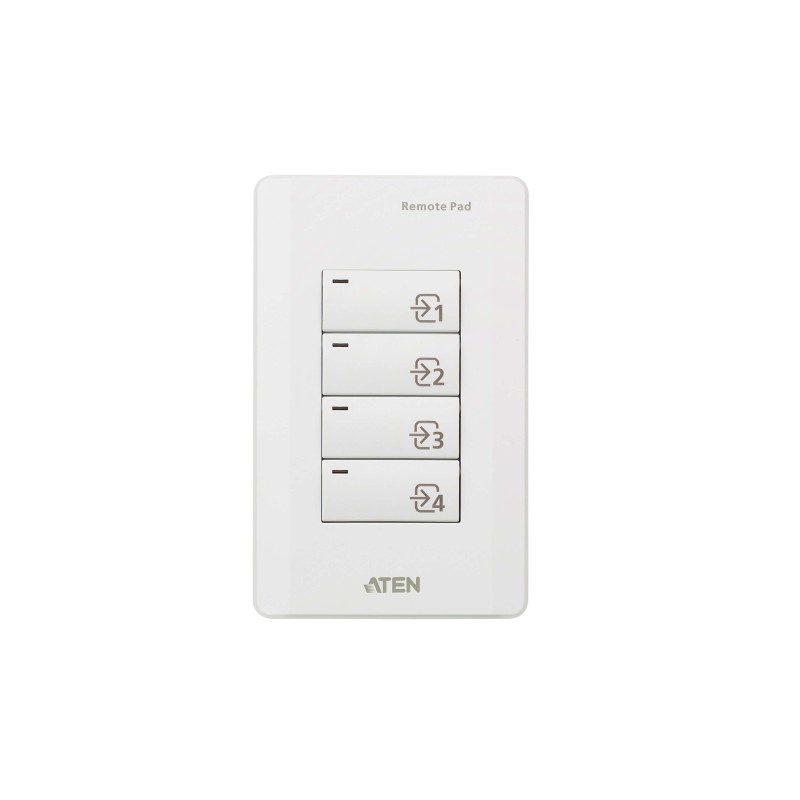

The VPK104 is a 4-button contact closure remote pad designed for use with VP1420/VP1421 Presentation Matrix Switch. By connecting the contact closure ports between the remote pad and a presentation switch, the VPK104 provides a convenient interface to switch the input sources for a video presentation switch from a wall-mounted faceplate. The VPK104 is an easy and affordable solution, perfect to serve as the control interface in a meeting room, class room, or lecture room.
ATEN VPK104-AT. Product type: Remote control, Product color: White, Compatible products: Aten VP1420/VP1421. Connectivity technology: Wired. Width: 4.58" (116.3 mm), Depth: 2.78" (70.6 mm), Height: 1.88" (47.8 mm). Quantity per master (outer) case: 5 pc(s), Master (outer) case weight: 3.97 lbs (1.8 kg), Master (outer) case length: 12.8" (325 mm). Package width: 2.32" (59 mm), Package depth: 9.41" (239 mm), Package height: 6.3" (160 mm)
Product type Remote control Product color White LED indicators Yes Compatible products Aten VP1420/VP1421 Housing material Plastic Connectivity technology Wired Width 4.58" (116.3 mm) Depth 2.78" (70.6 mm) Height 1.88" (47.8 mm) Weight 4.94 oz (140 g) Operating temperature (T-T) 0 - 50 °C Operating relative humidity (H-H) 0 - 80% Storage temperature (T-T) -20 - 60 °C Storage relative humidity (H-H) 0 - 80% Quantity per master (outer) case 5 pc(s) Master (outer) case weight 3.97 lbs (1.8 kg) Master (outer) case length 12.8" (325 mm) Master (outer) case width 9.84" (250 mm) Master (outer) case height 6.89" (175 mm) Master (outer) case net weight 24.7 oz (700 g) Harmonized System (HS) code 85299097 Package width 2.32" (59 mm) Package depth 9.41" (239 mm) Package height 6.3" (160 mm) Package weight 10.2 oz (290 g) Quantity 1 User guide Yes
Product Details
Reference
VPK104-AT
Availability date:
2026-02-02
Condition
New
Data sheet
Product color
White
Quantity per pack
1
Connectivity technology
Wired
Weight
4.94 oz (140 g)
Harmonized System (HS) code
85299097
Compatible products
Aten VP1420/VP1421
Width
4.58" (116.3 mm)
Height
1.88" (47.8 mm)
Depth
2.78" (70.6 mm)
Package weight
10.2 oz (290 g)
Master (outer) case width
9.84" (250 mm)
Master (outer) case length
12.8" (325 mm)
Master (outer) case height
6.89" (175 mm)
Master (outer) case weight
3.97 lbs (1.8 kg)
Quantity per master (outer) case
5 pc(s)
Package width
2.32" (59 mm)
Package depth
9.41" (239 mm)
Package height
6.3" (160 mm)
Product type
Remote control
LED indicators
Yes
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
User guide
Yes
Housing material
Plastic
Master (outer) case net weight
24.7 oz (700 g)
Specific References
UPC
672792011337
EAN13
4719264649585
MPN
VPK104-AT
