CHF234.6
tax incl.
CHF217.0
tax excl.
In stock
CHF37.0
tax incl.
CHF34.2
tax excl.
In stock
Description

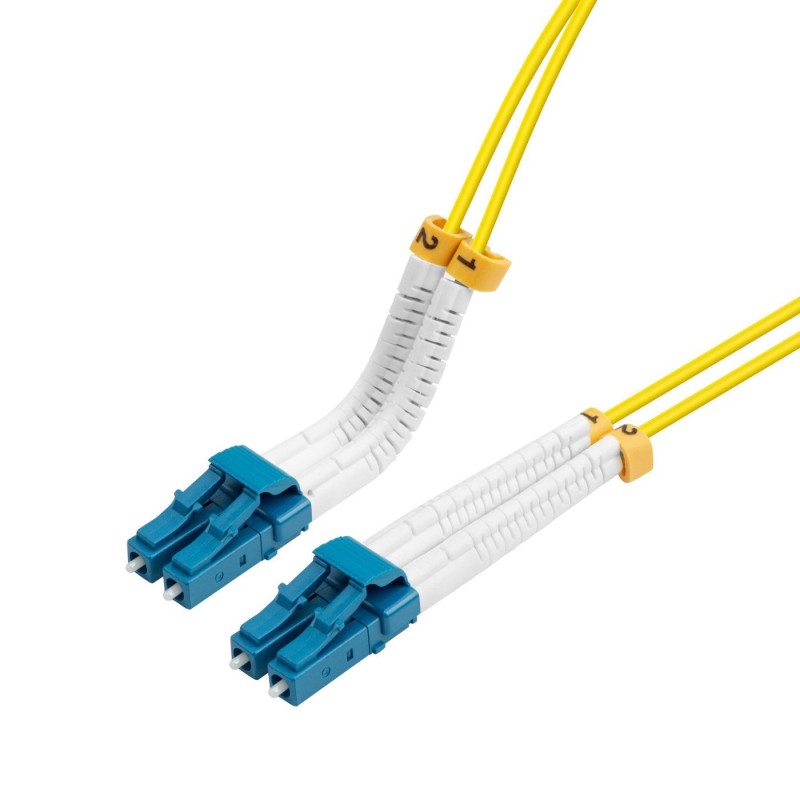

The Lanview Bendable series is engineered for flexible cable management, able to bend and sustain any angle from a straight line to 90 degrees. The boot, shaped around a single stainless-steel wire, is easily adjustable by hand, while the internal wire maintains the set angle or direction.
The boot's design permits repositioning at any moment or straightening for the disconnection of connectors. Its versatility guarantees ideal connector positioning in demanding situations, like confined areas or environments with high density.
Lanview LVO231420-FLEX. Cable length: 787.4" (20 m), Cable type: LC/LC, Fiber optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm, Full duplex
The boot's design permits repositioning at any moment or straightening for the disconnection of connectors. Its versatility guarantees ideal connector positioning in demanding situations, like confined areas or environments with high density.
Lanview LVO231420-FLEX. Cable length: 787.4" (20 m), Cable type: LC/LC, Fiber optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm, Full duplex
| Cable length | 787.4" (20 m) |
| Cable type | LC/LC |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product color | Yellow |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber optic type | OS2 |
| Cable shape | Round |
| Connector polish type | UPC |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Wavelengths supported | 1310,1490,1550 nm |
| Insertion loss | 0.3 dB |
| Return loss | 50 dB |
| Compressive strength | 10 |
| Plug and Play | Yes |
| Doesn't contain | Halogen |
| Compliance certificates | REACH, RoHS |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Cable diameter | 0.0787" (2 mm) |
| Weight | 12.3 oz (350 g) |
| Bending radius | 1.18" (3 cm) |
| Package width | 7.87" (200 mm) |
| Package depth | 1.97" (50 mm) |
| Package height | 9.84" (250 mm) |
| Package weight | 12.3 oz (350 g) |
| Warranty period | 25 year(s) |
Product Details
New
Data sheet
- Product color
- Yellow
- Cable length
- 787.4" (20 m)
- Connector 1
- LC
- Connector 2
- LC
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Weight
- 12.3 oz (350 g)
- Plug and Play
- Yes
- Package weight
- 12.3 oz (350 g)
- Warranty period
- 25 year(s)
- Package width
- 7.87" (200 mm)
- Package depth
- 1.97" (50 mm)
- Package height
- 9.84" (250 mm)
- Operating temperature (T-T)
- -40 - 75 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Cabling type
- LC/LC
- Compliance certificates
- REACH, RoHS
- Cable diameter
- 0.0787" (2 mm)
- Full duplex
- Yes
- Cable shape
- Round
- Doesn't contain
- Halogen
- Bending radius
- 1.18" (3 cm)
- Fiber mode structure
- Single-mode
- Core diameter
- 9 µm
- Cladding diameter
- 125 µm
- Fiber optic type
- OS2
- Insertion loss
- 0.3 dB
- Wavelengths supported
- 1310,1490,1550 nm
- Connector polish type
- UPC
- Return loss
- 50 dB
- Jacket material
- Low smoke zero halogen (LSZH)
- Compressive strength
- 10
Specific References
- EAN13
- 5715063506158
- MPN
- LVO231420-FLEX
