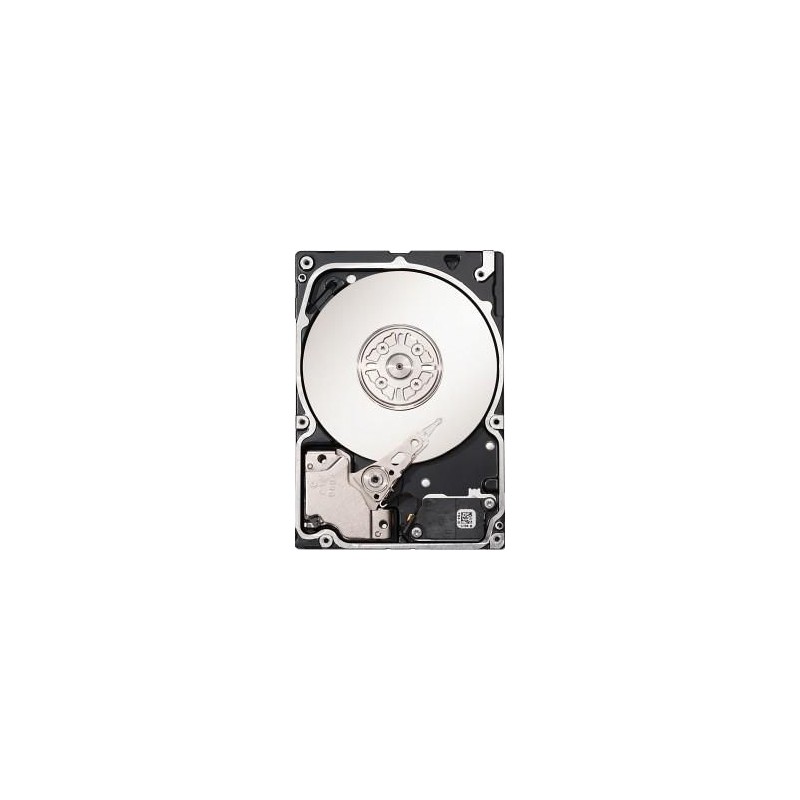

The Seagate® Savvio® 10K.5 hard drive enables OEMs, system builders and data centers to:
- Improve storage efficiency;
- Ease capacity, interface and form factor transitions;
- Ensure data integrity and protection throughout the storage process even if the device is lost or stolen.
Key Features and Benefits- Delivers the highest-capacity in a 2.5-inch, 10K-RPM hard drive (up to 900GB) to manage more data without increasing the number of drives;
- First SFF drive to offer four capacity points on a single platform;
- Industry-leading 0.44% AFR for field-proven reliability;
- Improves performance for faster data storage and access;
- Reduces power consumption and enables green IT initiatives;
- PowerChoice™ technology for T10-compliant power management enables IT organizations to tailor systems for performance and power consumption;
- Reduces system design, qualification and inventory costs for OEMs;
- Enables data centers to better manage hard drive transitions;
- Protection Information protects against inadvertent data change;
- Optional Self-Encrypting Drive (SED) models help companies be compliant with corporate and federal data security mandates and protect data-at-rest throughout the life of the storage device should the device be lost, stolen, and/or retired;
- Seagate Unified Storage architecture reduces system complexity and operating costs by converging disparate interfaces, form factors and security standards.
Specifications
Features
| Average latency | 3 ms |
| HDD capacity | 600 GB |
| HDD size | 2.5 " |
| HDD speed | 10000 RPM |
| Mean time between failures (MTBF) | 2000000 h |
| Read seek time | 3.4 ms |
| Storage drive buffer size | 64 MB |
| Write seek time | 3.8 ms |
Operational conditions
| Non-operating shock | 400 G |
| Operating shock | 40 G |
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Other features
| Acoustic pressure emissions | 3 dB |
| Data transfer rate | 6 Gbit/s |
| Internal | Yes |
| Sustained data rate | 168 MB/s |
Power
| Operating voltage | 5 V |
| Power consumption (idle) | 3.82 W |
| Start-up current | 0.86 A |
Vendor information
| Brand Name | Seagate |
| Warranty | 1 |
