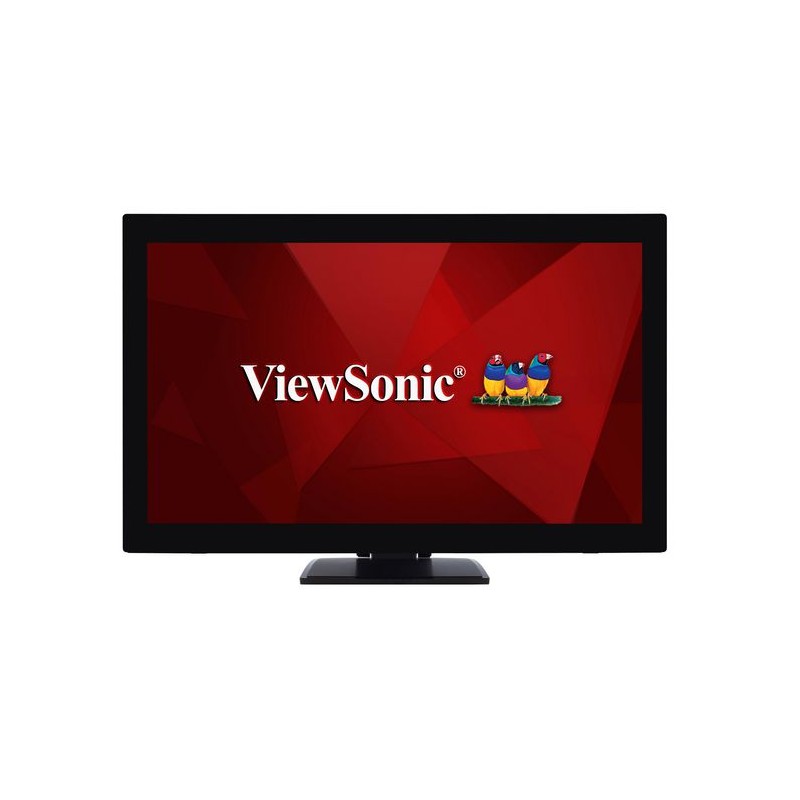

TD2760 - VS17780
TD2760, 27" 10 Point Touch, Full HD (1920x1080), 16:9, MVA, 3000:1, 12ms, 230nits
Description
The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® IPS Panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android. Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.
10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.
VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.
10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers – or both at the same time.
SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.
VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display’s remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display’s remote controller.
Specifications
Design
| Glass thickness | 1.88 mm |
| Market positioning | Business |
| Product colour | Black |
Display
| Anti-glare screen | Yes |
| Aspect ratio | 16:9 |
| Backlight type | LED |
| Contrast ratio (dynamic) | 50000000:1 |
| Contrast ratio (typical) | 3000:1 |
| Display brightness | 300 cd/m² |
| Display brightness (typical) | 230 cd/m² |
| Display diagonal | 27 " |
| Display diagonal (metric) | 68.58 cm |
| Display number of colours | 16.78 million colours |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LED |
| HD type | Full HD |
| Horizontal scan range | 15 - 90 kHz |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Number of simultaneous touchpoints | 10 |
| Panel type | VA |
| Pixel pitch | 0.311 x 0.311 mm |
| Response time | 6 ms |
| Screen shape | Flat |
| Separate H/V sync | Yes |
| Surface hardness | 6H |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Multi-user |
| Vertical scan range | 50 - 76 Hz |
| Viewable size, horizontal | 59.8 cm |
| Viewable size, vertical | 33.6 cm |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Ergonomics
| Cable lock slot | Yes |
| Number of OSD languages | 14 |
| On Screen Display (OSD) | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -4 - 90 ° |
| VESA mounting | Yes |
| Wall mountable | Yes |
Logistics data
| Pallet gross height | 224 cm |
| Pallet gross length | 100 cm |
| Pallet gross width | 120 cm |
| Products per master (outer) case | 1 pc(s) |
Multimedia
| Built-in camera | No |
| Built-in microphone | No |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
Operational conditions
| Operating relative humidity (H-H) | 20 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
Other features
| Accessories included | Power Cable, VGA Cable, HDMI Cable, USB Cable, Audio Cable |
| Certification | MX-CoC, Mexico Energy, CE, CE EMC, CB |
| Connection to PC | Yes |
| Mean time between failures (MTBF) | 30000 h |
| Weight | 7900 g |
Packaging content
| Quick start guide | Yes |
Performance
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
Ports & interfaces
| Audio input | 1 |
| Audio output | 1 |
| Built-in USB hub | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Number of upstream ports | 1 |
| Number of USB Type-B upstream ports quantity | 1 |
| RS-232 ports | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 2 |
| USB upstream port type | USB Type-B |
| VGA (D-Sub) ports quantity | 1 |
Power
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Energy efficiency class (SDR) | F |
| European Product Registry for Energy Labelling (EPREL) code | 384384 |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 26 W |
| Power supply type | AC |
Vendor information
| Brand Name | ViewSonic |
| Homepage | http://www.viewsonic.com/eu |
| Warranty | 3 |
Weight & dimensions
| Depth (with stand) | 23.9 cm |
| Depth (without stand) | 5.8 cm |
| Height (with stand) | 44.3 cm |
| Height (without stand) | 41 cm |
| Weight (with stand) | 7900 g |
| Weight (without stand) | 5500 g |
| Width (with stand) | 66 cm |
| Width (without stand) | 66 cm |
Product Details
VS17780
2026-03-02
New
Data sheet
- Panel type
- VA
- Touch technology
- Multi-touch
- Market positioning
- Business
- Power consumption (off)
- 0.3 W
- HDCP
- Yes
- Native aspect ratio
- 16:9
- Response time
- 6 ms
- Screen shape
- Flat
- Anti-glare screen
- Yes
- Contrast ratio (dynamic)
- 50000000:1
- Horizontal scan range
- 15 - 90 kHz
- Vertical scan range
- 50 - 76 Hz
- Surface hardness
- 6H
- NVIDIA G-SYNC
- No
- AMD FreeSync
- No
- HDMI
- Yes
- Tilt adjustment
- Yes
- Energy efficiency class (SDR)
- F
- USB hub version
- 3.2 Gen 1 (3.1 Gen 1)
- USB upstream port type
- USB Type-B
- Glass thickness
- 1.88 mm
- an der Wand montierbar
- Yes
- Bildschirmhelligkeit
- 300 cd/m²
- Display-Technologie
- LED
- Pixelabstand
- 0.311 x 0.311 mm
- RMS-Nennleistung
- 4 W
- Schnittstelle für Schalttafeleinbau
- 100 x 100 mm
- VESA-Montage
- Yes
- Anzahl der Farben anzeigen
- 16.78 million colours
- Anzahl gleichzeitiger Touchpoints
- 10
- Anzeigediagonale (metrisch)
- 68.58 cm
- Betrachtungswinkel horizontal
- 178 °
- Betrachtungswinkel, vertikal
- 178 °
- Kontrastverhältnis (typisch)
- 3000:1
- Touchscreen-Technologie
- Projected capacitive system
- Bildschirmanzeige (OSD)
- Yes
- Anzahl der HDMI-Anschlüsse
- 1
- Breite (mit Ständer)
- 66 cm
- Gewicht (mit Ständer)
- 7900 g
- Höhe (mit Ständer)
- 44.3 cm
- Tiefe (mit Ständer)
- 23.9 cm
- DisplayPort-Version
- 1.2
- DisplayPorts Menge
- 1
- Schnellstartanleitung
- Yes
- Homepage
- http://www.viewsonic.com/eu
- Mean time between failures (MTBF)
- 30000 h
- Eingebautes Mikrophon
- No
- Zertifizierung
- MX-CoC, Mexico Energy, CE, CE EMC, CB
- AC-Eingangsfrequenz
- 50 - 60 Hz
- AC-Eingangsspannung
- 100 - 240 V
- Stromverbrauch (typisch)
- 26 W
- Gewicht
- 7900 g
- Schlitz für Kabelschloss
- Yes
- Audioausgang
- 1
- Bruttobreite der Palette
- 120 cm
- Bruttohöhe der Palette
- 224 cm
- Bruttolänge Palette
- 100 cm
- Stromverbrauch (Standby)
- 0.3 W
- Produkte pro Master (Außen)-Case
- 1 Stück(e)
- Berührungssensitiver Bildschirm
- Yes
- Bildschirmauflösung
- 1920 x 1080 Pixel
- Diagonale anzeigen
- 27 "
- LED-Hintergrundbeleuchtung
- Yes
- Seitenverhältnis
- 16:9
- Neigungswinkelbereich
- -4 - 90 °
- HDMI-Version
- 1.4
- HD-Typ
- Full HD
- Anzahl der VGA (D-Sub) Anschlüsse
- 1
- Brand Name
- ViewSonic
- Warranty
- 3
- Betriebstemperatur (TT)
- 0 - 40 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 20 - 90 %
- Stromversorgungstyp
- AC
- Produktfarbe
- Black
- Eingebaute(r) Lautsprecher
- Yes
- Verbindung zum PC
- Yes
- Art der Hintergrundbeleuchtung
- LED
- Audioeingang
- 1
- RS-232-Anschlüsse
- 1
- Eingebaute Kamera
- No
- Touchscreen-Typ
- Multi-user
- Displayhelligkeit (typisch)
- 230 cd/m²
- Sichtbare Größe, horizontal
- 59.8 cm
- Sichtbare Größe, vertikal
- 33.6 cm
- Eingebauter USB-Hub
- Yes
- Energieverbrauch (SDR) pro 1000 Stunden
- 19 kWh
- European Product Registry for Energy Labelling (EPREL) code
- 384384
- Breite (ohne Ständer)
- 66 cm
- Gewicht (ohne Ständer)
- 5500 g
- Höhe (ohne Ständer)
- 41 cm
- Tiefe (ohne Ständer)
- 5.8 cm
- Anzahl der Sprecher
- 2
- Anzahl der OSD-Sprachen
- 14
- Anzahl der Upstream-Ports
- 1
- Anzahl USB-Typ-A-Downstream-Ports
- 2
- Separate H/V-Synchronisation
- Yes
- einschließlich Zubehör
- Power Cable, VGA Cable, HDMI Cable, USB Cable, Audio Cable
- Anzahl der USB-Typ-B-Upstream-Ports Menge
- 1
Specific References
- UPC
- 766907002775
- EAN13
- 0766907002775
- MPN
- TD2760
