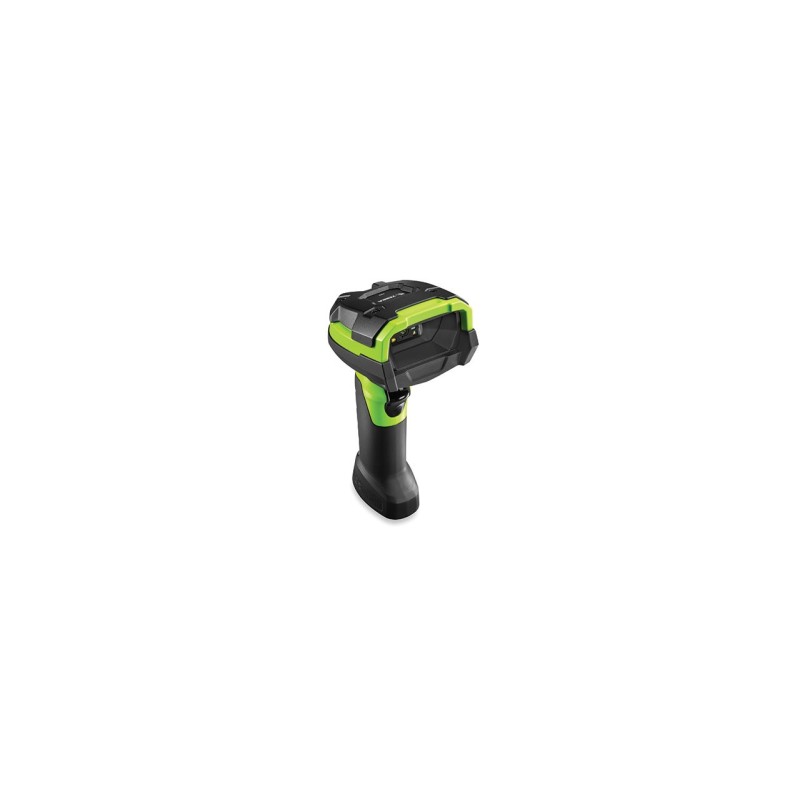

DS3608-HD20003VZWW - 1PDS3608-HD20003VZWW

UNSTOPPABLE PERFORMANCE FOR HIGH DENSITY 1D/2D BARCODES
As a member of the Zebra Ultra-Rugged 3600 Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world’s toughest environments — the electronics manufacturing production line.

You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make.

And since these scanners also capture standard barcodes in virtually any condition, you get a real value — unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to the warehouse.

SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can capture virtually any high-density and standard 1D or 2D barcode at lightning speed, regardless of whether it is printed on a paper label or directly on a product component. Even if barcodes are damaged, dirty or poorly printed, no problem — this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

Zebra DS3608-HD. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: RS-232, USB, Keyboard wedge. Product color: Black, Green, International Protection (IP) code: IP67, Protection features: Dust resistant, Shock resistant, Water resistant. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 3100 mAh. Weight: 10.9 oz (309 g), Width: 5.2" (132 mm), Depth: 2.99" (76 mm)

Type	Handheld bar code reader
Scanner type	1D/2D
Sensor type	Laser
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength	655 nm
Tilt reading angle	-65 - 65°
Pitch reading angle	-65 - 65°
Yaw reading angle	-45 - 45°
Connectivity technology	Wired
Standard interfaces	RS-232, USB, Keyboard wedge
Ethernet LAN	Yes
Product color	Black, Green
International Protection (IP) code	IP67
Protection features	Dust resistant, Shock resistant, Water resistant
LED indicators	Yes
Programming function	Yes
Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	3100 mAh
Number of reads per charge	100000
Weight	10.9 oz (309 g)
Width	5.2" (132 mm)
Depth	2.99" (76 mm)
Height	7.28" (185 mm)
Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Compliance certificates	RoHS
Harmonized System (HS) code	84716070
Optical sensor resolution	1280 pixels
