JCD397-N

Brand

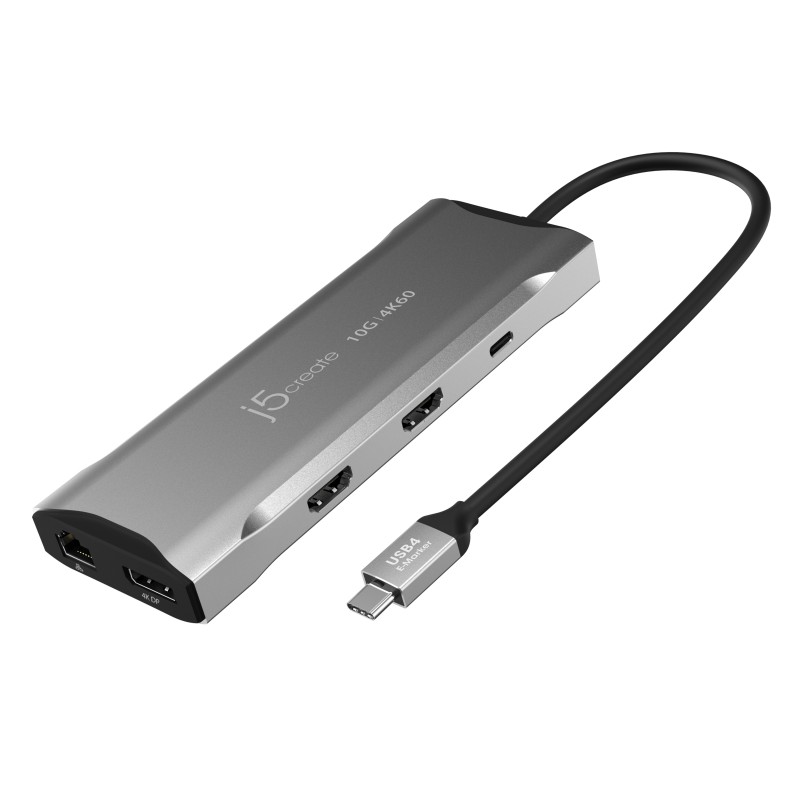

j5create JCD397, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 1.4a, 10,100,1000 Mbit/s, Gray

CHF112.2

Tax included

CHF103.8 Tax excluded

Delayed delivery

Quantity

Will be ordered for you

Description
Product Details

Description

Equipped with an advanced USB-C® E-Mark chip, this multi-monitor mini dock is compatible with USB4™ hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB™ ports, as well as 100W Power Delivery pass-through charging.

This USB-C® mini dock supports DisplayPort™ 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI™ and a DisplayPort™ output. It provides three USB™ SuperSpeed 10 Gbps ports (2 USB-C® and 1 USB™ Type-A) for peripheral connectivity or downstream charging, an SD™ & microSD™ 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C® power adapter.

j5create JCD397. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: Gray, Color name: Space Grey, Compatible memory cards: MicroSD (TransFlash), SD. Power source type: USB, Power connector: USB Type-C, Output voltage: 5 V. Width: 2.17" (55 mm), Depth: 0.669" (17 mm), Height: 5.83" (148 mm)

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	2
Microphone in	No
Headphone outputs	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
USB Power Delivery	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4a
USB Type-C DisplayPort Alternate Mode	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Product color	Gray
Card reader integrated	Yes
Color name	Space Grey
Compatible memory cards	MicroSD (TransFlash), SD
Data transfer rate	10 Gbit/s
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	3
Maximum refresh rate	240 Hz
Display modes	Extended, Mirror, Primary display
Plug and Play	Yes
Charging function	Yes
Housing material	Aluminum
Country of origin	Taiwan
Compatibility	Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0. The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration.
Power source type	USB
Power connector	USB Type-C
Output voltage	5 V
Output current	0.79 A
Power consumption (typical)	4.16 W
USB cable length	7.87" (0.2 m)
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-17 - 68 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 85%
Width	2.17" (55 mm)
Depth	0.669" (17 mm)
Height	5.83" (148 mm)
Weight	4.28 oz (121.4 g)
Quantity per pack	1 pc(s)
Package width	7.6" (193 mm)
Package depth	4.92" (125 mm)
Package height	0.886" (22.5 mm)
Package weight	5.33 oz (151 g)
Cables included	USB Type-C
Quick start guide	Yes
Manual	Yes
Master (outer) case GTIN (EAN/UPC)	24712795086328
Warranty period	2 year(s)
Quantity per master (outer) case	18 pc(s)
Master (outer) case width	8.9" (226 mm)
Master (outer) case length	17.5" (445 mm)
Master (outer) case height	7.48" (190 mm)
Master (outer) case weight	8.38 lbs (3.8 kg)
Quantity per shipping (inner) case	6 pc(s)
Export Control Classification Number (ECCN)	EAR99
Shipping (inner) case width	6.5" (16.5 cm)
Shipping (inner) case length	8.35" (21.2 cm)
Shipping (inner) case height	5.39" (13.7 cm)
Shipping (inner) case net weight	2.34 lbs (1.06 kg)
Special features	Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a Dual 4K HDMI™ output, DP display output.

Product Details

Brand

Availability date: 2025-12-10

Condition New

Data sheet

Compatibility: Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0.
The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration.
Product color: Gray
Windows operating systems supported: Yes
Quantity per pack: 1 pc(s)
Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity: 0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 2
Microphone in: No
Headphone outputs: 0
DisplayPorts quantity: 1
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Card reader integrated: Yes
Weight: 4.28 oz (121.4 g)
Output voltage: 5 V
HD type: 4K Ultra HD
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Plug and Play: Yes
Width: 2.17" (55 mm)
Height: 5.83" (148 mm)
Country of origin: Taiwan
Power source type: USB
Data transfer rate: 10 Gbit/s
Depth: 0.669" (17 mm)
Output current: 0.79 A
Package weight: 5.33 oz (151 g)
Master (outer) case width: 8.9" (226 mm)
Master (outer) case length: 17.5" (445 mm)
Master (outer) case height: 7.48" (190 mm)
Master (outer) case weight: 8.38 lbs (3.8 kg)
Quantity per master (outer) case: 18 pc(s)
Warranty period: 2 year(s)
Package width: 7.6" (193 mm)
Package depth: 4.92" (125 mm)
Package height: 0.886" (22.5 mm)
Mac operating systems supported: Yes
HDMI version: 2.0
DisplayPort version: 1.4a
Maximum digital resolution: 3840 x 2160 pixels
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -17 - 68 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 85%
Compatible memory cards: MicroSD (TransFlash), SD
Cables included: USB Type-C
Quick start guide: Yes
Number of displays supported: 3
Manual: Yes
Housing material: Aluminum
Power consumption (typical): 4.16 W
Master (outer) case GTIN (EAN/UPC): 24712795086328
USB Power Delivery: Yes
USB Power Delivery up to: 100 W
USB Type-C DisplayPort Alternate Mode: Yes
Maximum refresh rate: 240 Hz
Shipping (inner) case width: 6.5" (16.5 cm)
Shipping (inner) case length: 8.35" (21.2 cm)
Shipping (inner) case height: 5.39" (13.7 cm)
Quantity per shipping (inner) case: 6 pc(s)
USB cable length: 7.87" (0.2 m)
USB Power Delivery revision: 3.0
Export Control Classification Number (ECCN): EAR99
Display modes: Extended, Mirror, Primary display
Power connector: USB Type-C
Shipping (inner) case net weight: 2.34 lbs (1.06 kg)
Charging function: Yes
Color name: Space Grey
Special features: Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a Dual 4K HDMI™ output, DP display output.

Specific References

ISBN: 978-1-23456-789-0
EAN13: 4712795086324
MPN: JCD397-N
