Reference: ST3450857SS
Brand: Asus

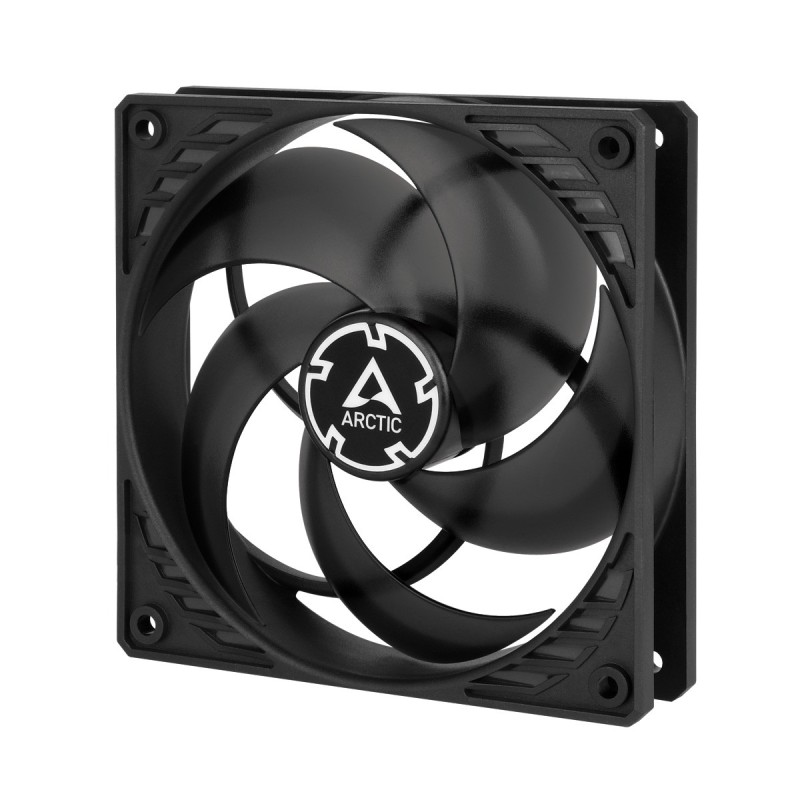

ARCTIC P12 PWM, Fan, 4.72" (12 cm), 200 RPM, 1800 RPM, 0.3 sone, 95.65 m³/h
| Suitable location | Computer case |
| Type | Fan |
| Fan diameter | 4.72" (12 cm) |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Rotational speed (min) | 200 RPM |
| Rotational speed (max) | 1800 RPM |
| Noise level | 0.3 sone |
| Maximum airflow | 56.3 cfm |
| Airflow | 95.65 m³/h |
| Maximum air pressure | 2.2 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Product color | Black, Transparent |
| Number of fans | 1 fan(s) |
| Number of fan blades | 5 |
| Fan connector | 4-pin |
| Power consumption (typical) | 0.96 W |
| Voltage | 12 V |
| Starting voltage | 3.9 V |
| Rated current | 0.08 A |
| Width | 4.72" (120 mm) |
| Depth | 4.72" (120 mm) |
| Height | 0.984" (25 mm) |
| Weight | 4.9 oz (139 g) |
| Cable length | 15.7" (0.4 m) |
| Package width | 4.84" (123 mm) |
| Package depth | 4.84" (123 mm) |
| Package height | 1.06" (27 mm) |
| Package weight | 6 oz (170 g) |
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
| Country of origin | China |
