9017B003

Maximised productivity

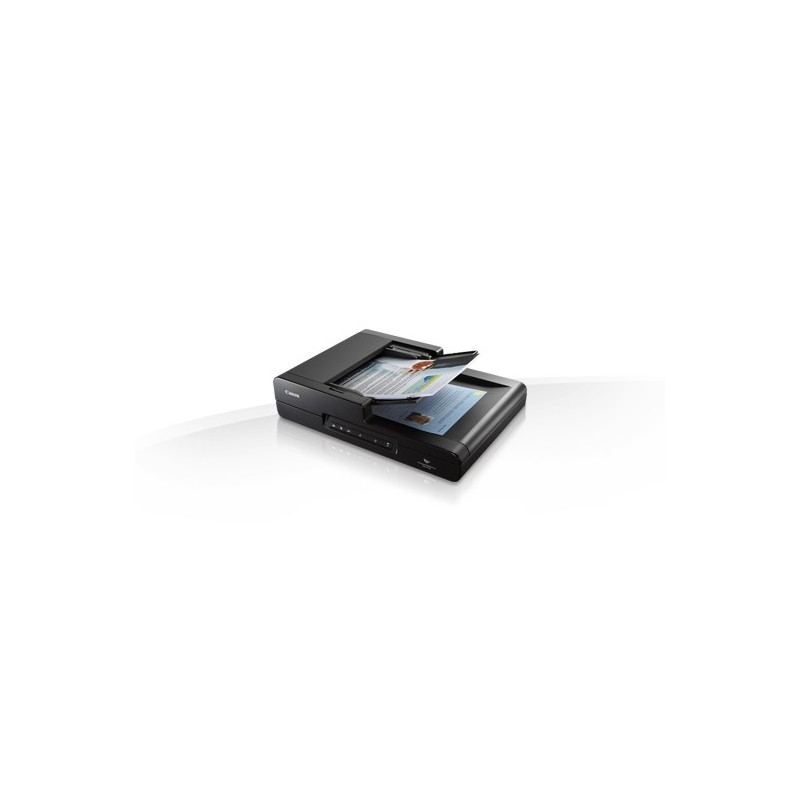

Capture various types of document types accurately and efficiently with the DR-F120: a compact all-in-one scanning solution that offers both an automatic document feeder (ADF) and flatbed. You can save yourself valuable time using the 50-sheet document feeder, with its faster 20ppm scanning speeds. The DR-F120 can be relied on to get through your work with a suggested daily volume of up to 800 scans.

Effortless paper handling

The DR-F120 gives you complete flexibility to scan a wide range of materials despite its compact body size and small footprint. The straight-through ADF path accommodates A4-width documents, and media of up to 1,000mm in length. You’ll enjoy increased reliability and time-savings when scanning mixed documents as a result of the separation roller in the feeding mechanism. The flatbed scanner is ideal for handling media like books, passports or magazines, and effortlessly captures pages up to legal size. It’s equally at home with photos or other thick, thin and delicate documents.

Superior image quality

The DR-F120 delivers superior quality results time after time, due to its 600dpi scanning, wide range of built-in image enhancement features and Canon’s renowned imaging technology. You’ll achieve unprecedented colour accuracy that stays true to the original document via the scanner’s 3-Dimensional Color Correction function.

Simple, user-friendly operation

Achieve superb results with just a single touch of a button using the Full Auto Mode that automatically applies the best settings for each scanned image. Built-in tools eliminate blank pages and automatically detect paper size and text orientation; while the automatic deskew feature straightens documents fed at an angle. Frequent tasks can be made even simpler by assigning them to 3 job buttons on the scanner panel.

Bundled software gives you more choice

The DR-F120 offers a simple and intuitive scanning experience using Canon’s CaptureOnTouch 3 software. Users can scan, edit and send their documents even more easily with this versatile scanning solution. Its step-by-step icon-based user interface lets users quickly convert their paper documents to multiple file formats (PDF, TIFF, JPEG, BMP, PNG and PowerPoint). CaptureOnTouch is equally capable as a simple document filing solution that lets users scan and create searchable PDF documents – including easy text-based search and retrieval. Cloud plug-ins to SharePoint, SugarSync, OneDrive, Dropbox, Google Drive™ and Evernote are included, ISIS and TWAIN drivers are also provided.

Easy to own and maintain

DR-F120 is easy to maintain because of its user-friendly design. The feed rollers are user-replaceable, which means you won’t incur the cost of calling out a service technician. Your costs stay low due to the scanner’s high energy-efficiency, using less than 20W in operation.

Product images are for illustration purposes only. Certain functions are optional. Please refer to the product specifications or contact your Canon sales representative for further details.

Canon imageFORMULA DR-F120. Maximum scan size: 8.5 x 14" (216 x 356 mm), Optical scanning resolution: 600 x 600 DPI. Scanner type: Flatbed & ADF scanner, Product color: Black. Sensor type: CMOS CIS, Daily duty cycle (max): 800 pages, Light source: RGB LED. Standard input capacity: 50 sheets. Maximum ISO A-series paper size: A4, Auto Document Feeder (ADF) media weight: 35 - 135 g/m², Maximum scan area (ADF): 2.01 x 3.5" (51 x 89 mm)

Maximum scan size	8.5 x 14" (216 x 356 mm)
Optical scanning resolution	600 x 600 DPI
Duplex scanning	Yes
Color scanning	Yes
Scanner type	Flatbed & ADF scanner
Built-in display	No
Product color	Black
Sensor type	CMOS CIS
Daily duty cycle (max)	800 pages
Light source	RGB LED
Standard input capacity	50 sheets
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	35 - 135 g/m²
Maximum scan area (ADF)	2.01 x 3.5" (51 x 89 mm)
Minimum scan area (ADF)	8.5 x 14" (216 x 356 mm)
USB port	Yes
USB version	2.0
Standard interfaces	USB 2.0
Power supply type	AC
Power consumption (typical)	19.9 W
Power consumption (standby)	2.5 W
Power consumption (off)	0.5 W
AC input frequency	50 - 60 Hz
Input voltage	220-240 V
Width	18.5" (469 mm)
Depth	13.2" (335 mm)
Height	4.72" (120 mm)
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	10 - 32.5 °C
Operating relative humidity (H-H)	20 - 80%
Compliance certificates	RoHS
Harmonized System (HS) code	84716070
