Automatic internal bypass Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
ECO Mode Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Input power factor correction Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD graphics display Text and mimic diagrams that display modes of operation, system parameters and alarms.
Serial connectivity Provides management of the UPS via a serial port.
USB connectivity Provides management of the UPS via a USB port (not available on all models).

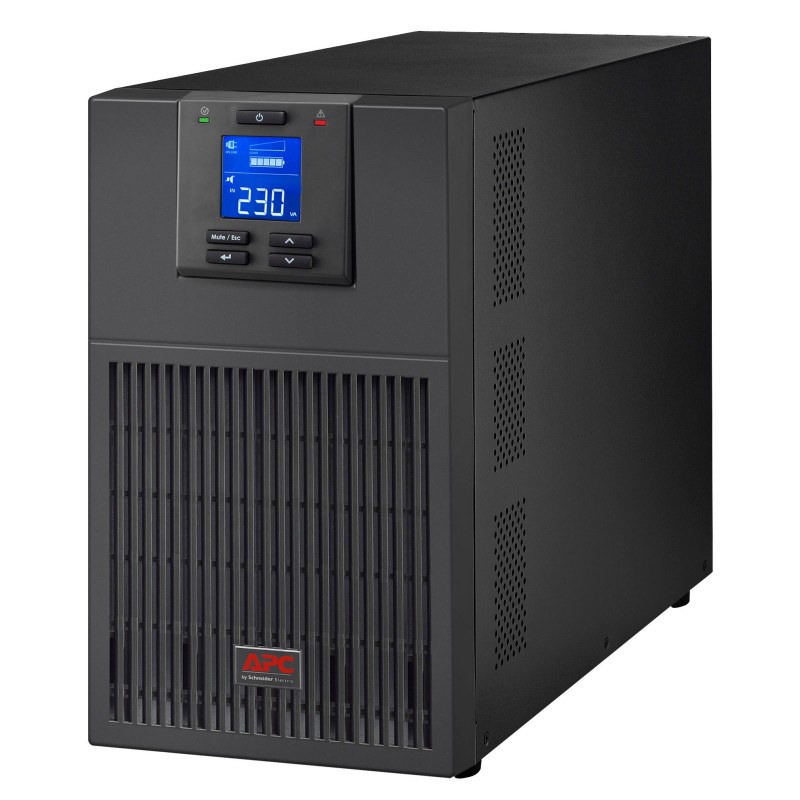

APC SRV3KI. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2400 W. AC outlet types: C13 coupler, Power plug: C19 coupler, AC outlets quantity: 6 AC outlet(s). Battery capacity: 9 Ah, Battery capacity: 48 VAh, Battery voltage: 12 V. Form factor: Mini Tower, Product color: Black, Display type: LCD. Cables included: Input power cable, Output power cable, RS-232, USB cable
UPS topology
Double-conversion (Online)
Output power capacity
3 kVA
Output power
2400 W
Input operation voltage (min)
110 V
Input operation voltage (max)
285 V
Input frequency
40 - 70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
600 J
Efficiency
88%
Crest factor
3:1
Emergency Power Off (EPO)
No
Socket circuit breaker
Yes
AC outlet types
C13 coupler
Power plug
C19 coupler
AC outlets quantity
6 AC outlet(s)
USB port
Yes
USB 2.0 ports quantity
1
Serial interface
Yes
Serial interface type
RS-232
RS-232 ports
1
Battery capacity
9 Ah
Battery capacity
48 VAh
Battery voltage
12 V
Number of batteries supported
1
Battery recharge time
4 h
Form factor
Mini Tower
Product color
Black
Display type
LCD
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 118110.2" (0 - 3000 m)
Non-operating altitude
0 - 590551.2" (0 - 15000 m)
Cables included
Input power cable, Output power cable, RS-232, USB cable
Manual
Yes
Width
7.48" (190 mm)
Depth
16.7" (425 mm)
Height
13.2" (336 mm)
Weight
59.1 lbs (26.8 kg)
Warranty card
Yes
Software CD
Yes
Package width
12.8" (325 mm)
Package depth
22.2" (565 mm)
Package height
18.3" (465 mm)
Package weight
63.9 lbs (29 kg)
Harmonized System (HS) code
85078000
Product Details
W128266671
2025-12-15
New
Data sheet
Product color
Black
USB 2.0 ports quantity
1
Weight
59.1 lbs (26.8 kg)
Harmonized System (HS) code
85078000
Output power
2400 W
Input frequency
40 - 70 Hz
Battery capacity
9 Ah
Width
7.48" (190 mm)
Height
13.2" (336 mm)
Depth
16.7" (425 mm)
Display type
LCD
Battery voltage
12 V
Package weight
63.9 lbs (29 kg)
Format
Mini Tower
Package width
12.8" (325 mm)
Package depth
22.2" (565 mm)
Package height
18.3" (465 mm)
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Cables included
Input power cable, Output power cable, RS-232, USB cable
