APB-400B8

Name: APB-400B8
Brand: Chieftec
SKU: W128258971
Price: 53.4 CHF
Availability: BackOrder

Reference W128258971

Brand Chieftec

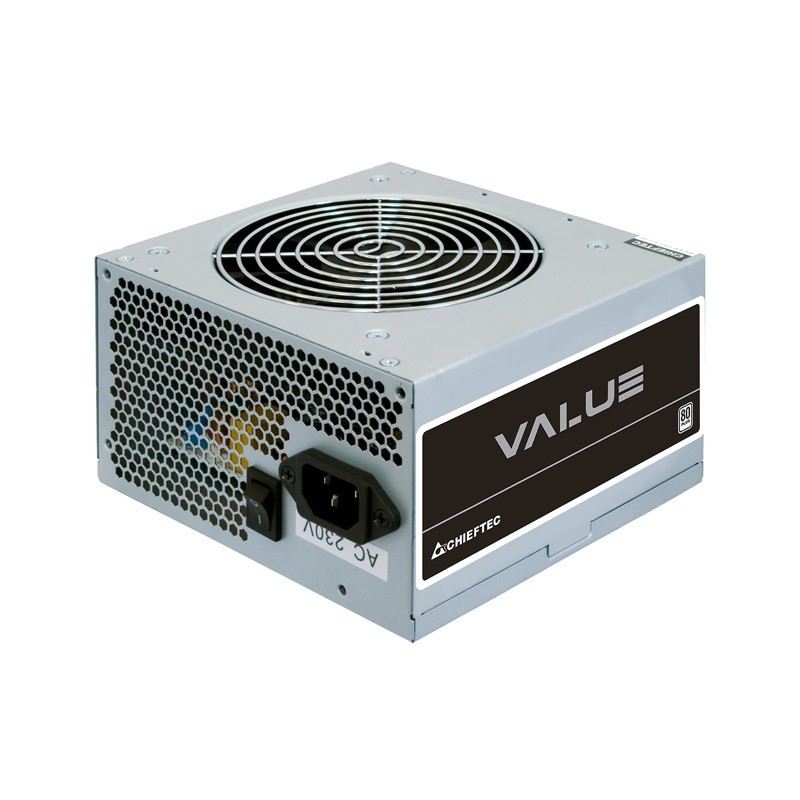

Chieftec Value APB-400B8, 400 W, 200 - 240 V, 47 - 63 Hz, 3 A, Active, 100 W

CHF53.4

Tax included

CHF49.4 Tax excluded

Delayed delivery

Quantity

Will be ordered for you

Description
Product Details

Description

The APB-400B8 of the VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!

Chieftec Value APB-400B8. Total power: 400 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 13.8" (35 cm), SATA power cable length: 150,350 mm. Purpose: PC/server, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS. Product color: Silver, Fan diameter: 4.72" (12 cm), Number of fans: 1 fan(s). Certification: 80PLUS 230V EU

Total power	400 W
AC input voltage	200 - 240 V
AC input frequency	47 - 63 Hz
Input current	3 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	100 W
Combined power (+12V)	360 W
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	17 A
Max output current (+12V)	30 A
Max output current (+5V)	16 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over voltage, Overload, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	2
Motherboard power cable length	13.8" (35 cm)
Number of SATA power connectors	3
SATA power cable length	150,350 mm
Peripheral (Molex) power cable length	150,350 mm
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	1
PCI Express power cable length	13.8" (35 cm)
CPU power connector (4+4 pin)	Yes
CPU power cable length	13.8" (35 cm)
Floppy drive power connector	1
Floppy disk drive connector	Yes
Cabling type	Non-Modular
Purpose	PC/server
Power supply unit (PSU) form factor	PS/2
80 PLUS certification	80 PLUS
ATX version	2.3
Product color	Silver
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
Certification	80PLUS 230V EU
Width	5.51" (140 mm)
Depth	5.91" (150 mm)
Height	3.43" (87 mm)
Harmonized System (HS) code	84733020

Product Details

Reference W128258971

Availability date: 2025-12-09

Condition New

Data sheet

Product color: Silver
Harmonized System (HS) code: 84733020
Purpose: PC/server
Fan diameter: 4.72" (12 cm)
AC input frequency: 47 - 63 Hz
Width: 5.51" (140 mm)
Height: 3.43" (87 mm)
Total power: 400 W
AC input voltage: 200 - 240 V
Certification: 80PLUS 230V EU
Depth: 5.91" (150 mm)
80 PLUS certification: 80 PLUS
Number of fans: 1 fan(s)
Input current: 3 A
Cabling type: Non-Modular
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power connectors (4-pin): 2
Number of SATA power connectors: 3
Floppy disk drive connector: Yes
Power supply unit (PSU) form factor: PS/2
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 17 A
Max output current (+12V): 30 A
Max output current (+5V): 16 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over voltage, Overload, Short circuit, Under voltage
Power factor: 0.9
Combined power (+3.3V): 100 W
Combined power (+12V): 360 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Motherboard power cable length: 13.8" (35 cm)
SATA power cable length: 150,350 mm
Peripheral (Molex) power cable length: 150,350 mm
PCI Express power connectors (6+2 pin): 1
PCI Express power cable length: 13.8" (35 cm)
CPU power connector (4+4 pin): Yes
CPU power cable length: 13.8" (35 cm)
EPS power connector (4+4 pin): Yes
ATX version: 2.3
Floppy drive power connector: 1

Specific References

ISBN: 978-1-23456-789-0
EAN13: 4710713230552
MPN: APB-400B8
