208345

Easily extend High-Definition (HD) HDMI over an IP network.

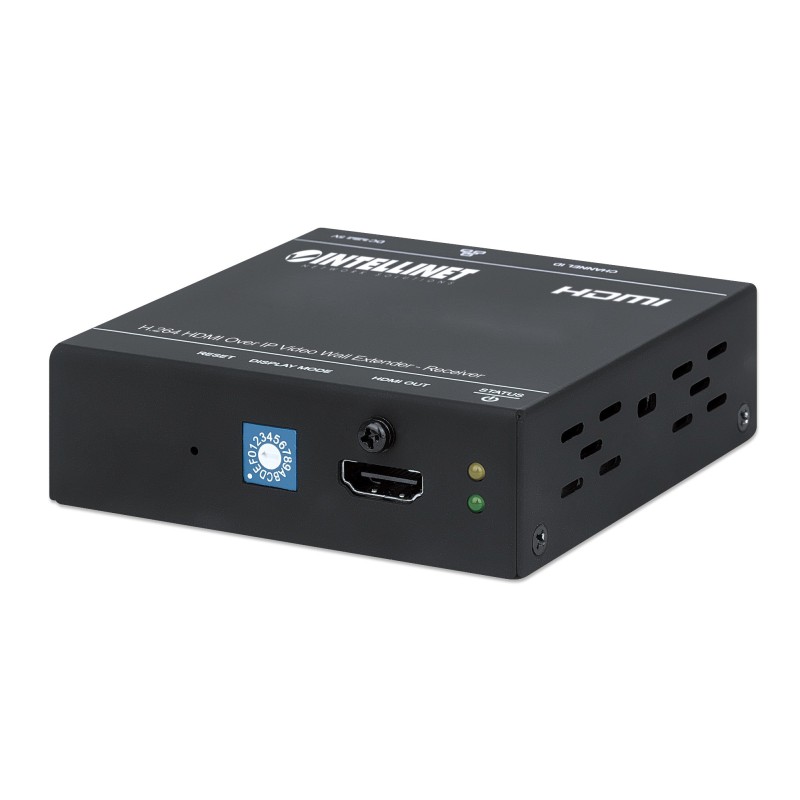

The Intellinet Network Solutions H.264 HDMI Over IP Video Wall Extender - Receiver helps distribute an H.264-compressed signal up to 500 m (1,640 ft.) over a network from up to 10 Intellinet H.264 HDMI Over IP Video Wall Extender - Transmitter(s) (see model #208338). This powered receiver's H.264 compression helps complete a unicast/multicast routing scheme for vibrant 1080p video and full LPCM audio at reduced bandwidth. The receiver supports Infrared (IR) control of the source and display for added convenience. For more power options in your setup, the receiver also supports bidirectional Power over Ethernet (PoE) to give power to or accept it from the transmitter. This receiver and up to 245 others can be configured in your setup.

Create a Video Wall or Other AV Setup
The wiring scheme this receiver helps provide is a cost-effective solution that boosts and extends an HDMI signal to where it's needed. The units shine when they're configured to work together as an attention-grabbing, near-seamless video wall. With a large number of receivers and screens, viewers are easily engaged at a distance, whether at a tradeshow, in a lecture hall, theater, conference room, business office or retail location.

Quality Construction and Easy Installation
This receiver is made of sturdy materials and adheres to HDMI and Ethernet standards. Its rotary switch makes it easy to link source to display, helping to simplify installations. For more complex setups, the easily navigable web GUI lets you configure the units online. Its ultra-slim and compact design make it the best choice to maximize your options in AV applications.

Intellinet 208345. Type: AV receiver, Maximum resolution: 1920 x 1080 pixels, Maximum transfer distance: 19685" (500 m). Quantity per pack: 1 pc(s)

Type	AV receiver
Maximum resolution	1920 x 1080 pixels
Maximum transfer distance	19685" (500 m)
Maximum refresh rate	60 Hz
LED indicators	Yes
Supported video modes	480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p
Video compression formats	AVC, H.264, MPEG4
HDCP	Yes
Wall mountable	Yes
Plug and Play	Yes
HDCP version	1.2
Product color	Black
Certification	CE FCC RoHS2
RJ-45 output ports	1
Number of HDMI outputs	1
HDMI version	1.3
DC-in jack	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Quantity per pack	1 pc(s)
AC adapter included	Yes
Manual	Yes
