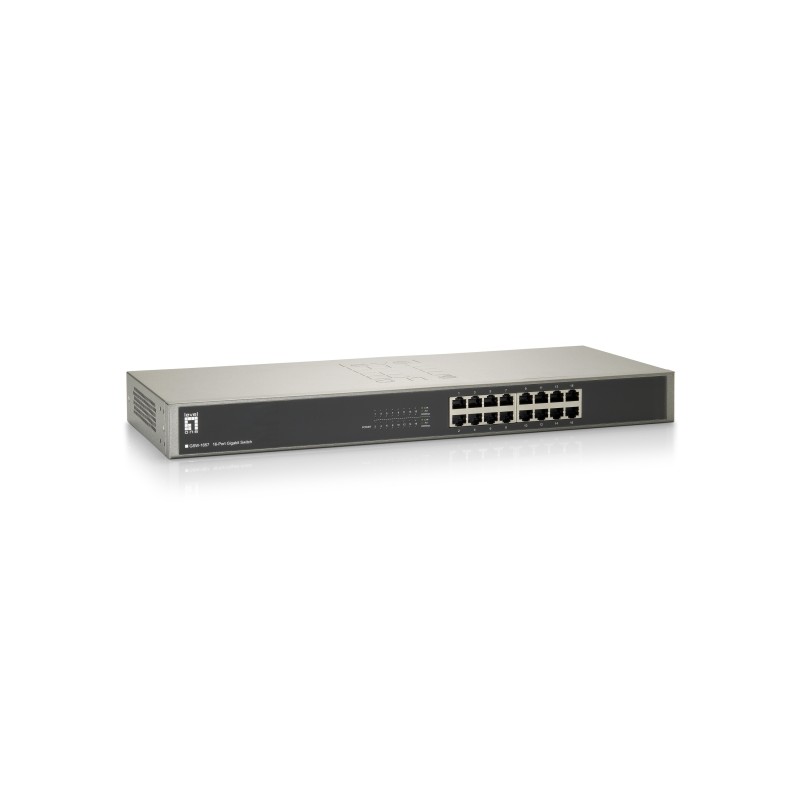

GSW-1657

Data sheet

Product color

Black, Gray

Weight

3.26 lbs (1.48 kg)

Harmonized System (HS) code

85176990

AC input frequency

50 - 60 Hz

Width

5.51" (140 mm)

Height

1.73" (44 mm)

AC input voltage

100 - 240 V

Certification

FCC, CE

Depth

17.3" (440 mm)

Package weight

4.74 lbs (2.15 kg)

Master (outer) case width

15.9" (405 mm)

Master (outer) case length

19.7" (500 mm)

Master (outer) case height

9.45" (240 mm)

Master (outer) case weight

26 lbs (11.8 kg)

Package width

8.82" (224 mm)

Package depth

19.1" (486 mm)

Package height

3.03" (77 mm)

LED indicators

Activity, Link

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Cables included

AC

Auto MDI/MDI-X

Yes

Input current

0.6 A

Quick start guide

Yes

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Networking standards

Power consumption (typical)

13.3 W

Mounting brackets included

Yes

Quality of Service (QoS) support

Yes

Switch type

Unmanaged

Basic switching RJ-45 Ethernet ports quantity

16

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

10G support

No

Full duplex

Yes

Switching capacity

32 Gbit/s

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

10000

Packet forwarding rate (1 Gbps)

1488000 pps

Packet forwarding rate (100 Mbps)

148000 pps

Packet buffer memory

0.5 MB

Power over Ethernet (PoE)

No

Cable types supported

Cat5, Cat6, Cat7

Rack mounting

Yes

Flow control support

Yes

MAC address table

8192 entries

Packet forwarding rate (10 Mbps)

14880 pps

Specific References

ISBN

978-1-23456-789-0

UPC

878742004804

EAN13

4015867143117

MPN

GSW-1657
