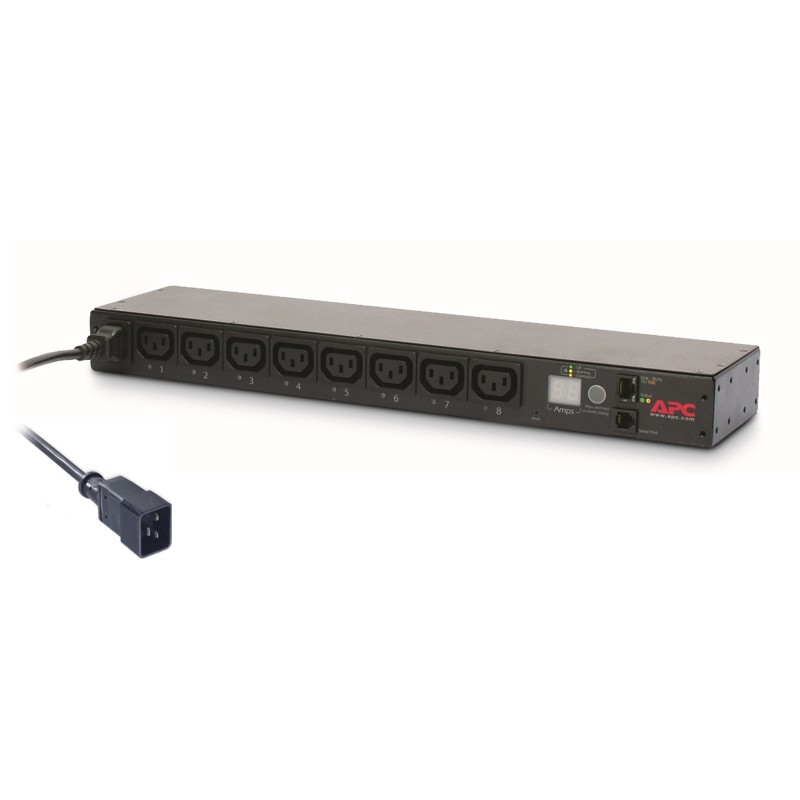

AP7921B

Data sheet

Product color

Black

Cable length

98.4" (2.5 m)

Weight

5 lbs (2.27 kg)

Mounting

Horizontal/Vertical

AC input frequency

50 - 60 Hz

Width

17.5" (445 mm)

Height

1.73" (44 mm)

Certification

cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH

Depth

4.25" (108 mm)

Package weight

7.61 lbs (3.45 kg)

Package width

18.5" (470 mm)

Package depth

13.5" (343 mm)

Package height

2.76" (70 mm)

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-25 - 65 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Rack capacity

0U/1U

AC outlets quantity

8 AC outlet(s)

Maximum power

3680 W

Compliance certificates

RoHS

Maximum current

16 A

Input connection type

IEC-320 C20

Operating altitude

0 - 118110.2" (0 - 3000 m)

Non-operating altitude

39.4 - 590551.2" (1 - 15000 m)

Nominal output voltage

208-230 V

AC outlet types

C13 coupler

Nominal input voltage

200-230 V

PDU types

Metered, Switched

Power plug

C20 coupler

Load capacity

3680 VA

Monitoring

Current, Power, Voltage

Packaging content

Installation Guide, Rack Mounting Brackets, Manuel utilisateur

Maximum input current per phase

16 A

Outlet control

Lock-out, Recycle, Turn off, Turn on

Total carbon footprint (kg of CO2e)

915.89

Maximum total current draw per phase

16 A

Specific References

ISBN

978-1-23456-789-0

UPC

731304331629

EAN13

0731304331629

MPN

AP7921B
