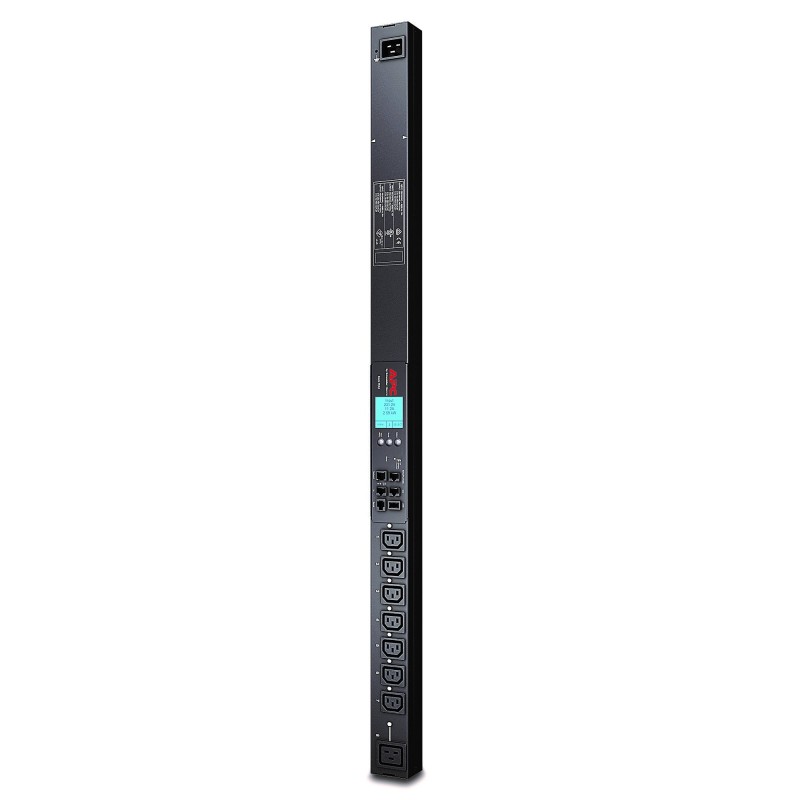

AP8958

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

APC PDU 2G. PDU types: Metered, Switched, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 230 V, Maximum current: 16 A, Load capacity: 3680 VA. Width: 2.2" (56 mm), Depth: 1.81" (46 mm), Height: 38.9" (988 mm)

PDU types	Metered, Switched
Rack capacity	0U
Mounting	Vertical
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Nominal input voltage	230 V
Maximum current	16 A
Load capacity	3680 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Maximum power	3680 W
Width	2.2" (56 mm)
Depth	1.81" (46 mm)
Height	38.9" (988 mm)
Weight	7.12 lbs (3.23 kg)
Total carbon footprint (kg of CO2e)	1302.31
