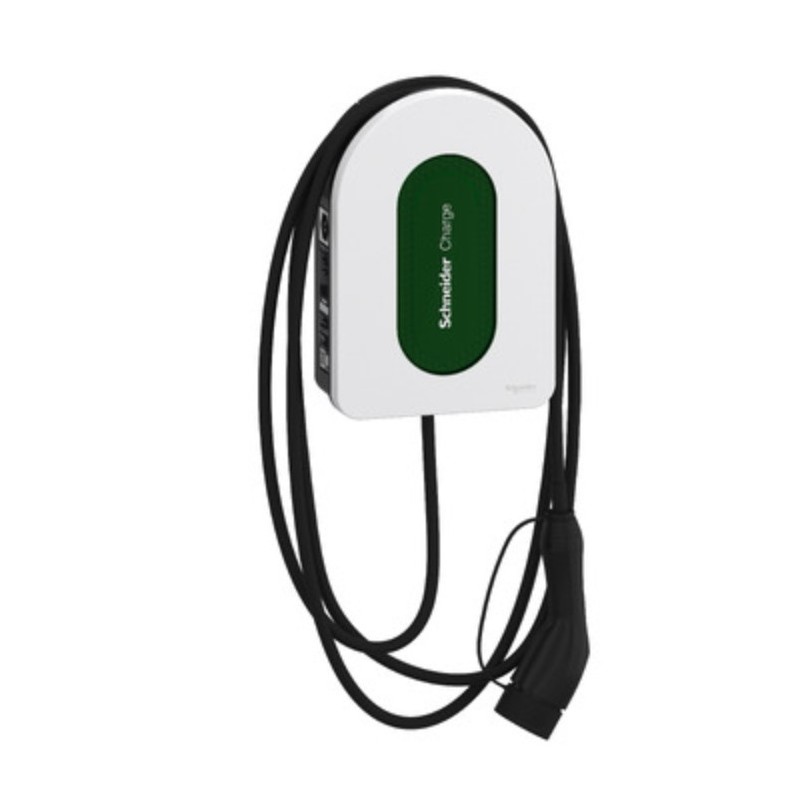

EVH5A11N2C5

This Schneider Charge product is a wall-mounted charging station for all electrical vehicles compliant with IEC61851-1 standard. The IP degree of protection is IP55. The IK degree of protection is IK1. The operating temperature is between -3°C and 55°C. The output type is a 5m attached cable with a T2 socket-outlet at the end, installed at the bottom and top centre of the station. The nominal output power is 11kW. It is supplied in three-phase (3P+N). The rated charging current is 16A under 4VAC at 5Hz/6Hz frequency. It can be used with a TN-S, TT or IT earthing system. The charging station is easy to install (no special tools required). It is recommended for private use at home, installed in the garage or on a wall externally. The dimensions are (W) 244mm x (H) 352mm x (D) 17mm. Its product weight is 4.4kg (without cable). Its color is white (RAL 93) and green. It is fitted with a built-in protection against residual direct current (RDC-DD as Residual Direct Current Detecting Device). One LED is changing color between red, green and blue in order to indicate the loading status directly on the charging station. This one allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of loads in the house and adapt the load according to Off Peak/Peak hours sent by TIC. The charging station is connected with Wiser by the Schneider ElectricTM mobile application for residential energy management. It easily starts, monitors, and controls the charging experience remotely. The OCPP 1.6 communication protocol can be used to connect to the supervision device/third party cloud. It can also be connected to Internet home router, either through Wi-Fi or RJ45 Ethernet cable.

Schneider Electric EVH5A11N2C5. Product color: Green, White, Mounting type: Wall, Cable color: Black. Socket type: Type 2, Mechanical impact protection code: IK10, International Protection (IP) code: IP55. Power source type: AC, Maximum charging power: 11000 W, Single-phase output voltage supported: 400 V. Width: 9.61" (244 mm), Depth: 4.61" (117 mm), Height: 13.9" (352 mm)

Product color	Green, White
Mounting type	Wall
Built-in display	No
Integrated charging cable	Yes
Cable color	Black
LED indicators	Yes
Wi-Fi	Yes
Socket type	Type 2
Mechanical impact protection code	IK10
International Protection (IP) code	IP55
Supported protocols	OCPP 1.6
Certification	EN 61851 IEC 61851-1
Number of phases	1
Power source type	AC
Maximum charging power	11000 W
Single-phase output voltage supported	400 V
Nominal frequency	60 Hz
Maximum operating power (single-phase)	11 kW
Maximum operating current per phase	16 A
Ethernet LAN	Yes
Operating temperature (T-T)	-30 - 55 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 78740.2" (0 - 2000 m)
Width	9.61" (244 mm)
Depth	4.61" (117 mm)
Height	13.9" (352 mm)
Weight	9.7 lbs (4.4 kg)
Package width	13.8" (350 mm)
Package depth	19.7" (500 mm)
Package height	11.8" (300 mm)
Package weight	13.6 lbs (6.18 kg)
