1255C003

Dedicated network scanner

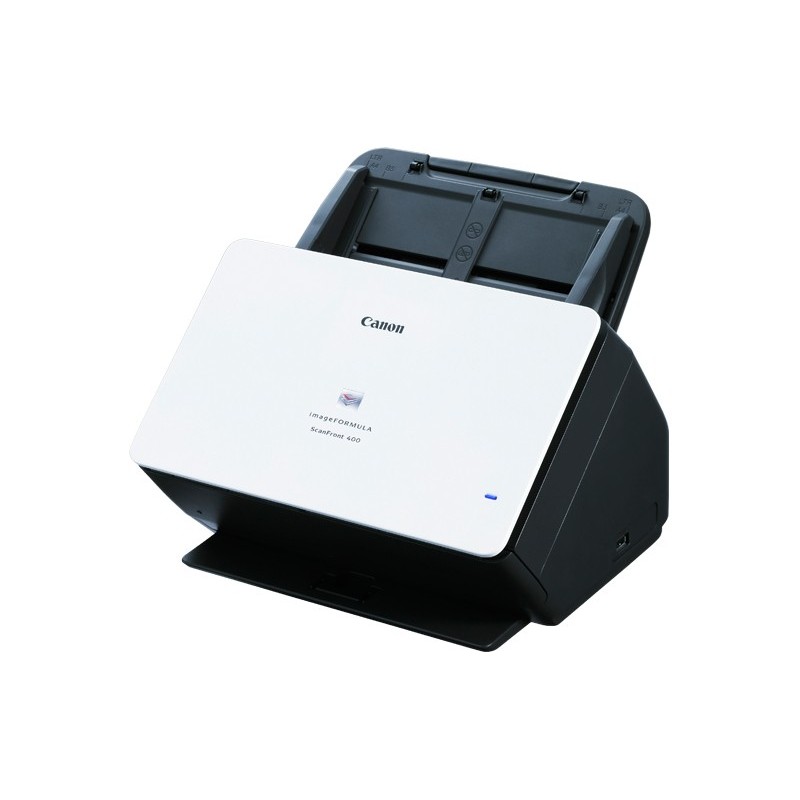

The Canon imageFORMULA ScanFront 400 is the ultimate network scanner for streamlining document workflows. The simple interface allows quick and easy scanning to email, network folders, FTP, USB memory, fax, or printers directly from the scanner’s bright and responsive 10.1” (25.7 cm) TFT touchscreen – no additional hardware or software required.

Ideal for every business
Its desk-friendly size, elegant design and quiet operation make it perfect for both back office use and consumer-facing countertops in retail, banking, healthcare and the legal profession. Small businesses can share the device across the office, while large corporations can integrate the scanner into existing infrastructures for both central department scanning and decentralised scanning in branch offices.

Boost productivity
Scan more documents with high-speed scanning at 45 pages per minute, plus a large 60-sheet ADF. Canon’s tried and tested document feeding mechanism and durable build quality, rated for up to 6,000 scans per day, ensure unparalleled reliability. Ultra-sonic sensors instantly detect double feeds, while the Double Feed Release (DFR) function enables easy scanning of envelopes and folded documents.

ScanFront Administration Tool
Administration tool software allows you to manage multiple ScanFront scanners at a time. You can check the current status of the ScanFront scanners on the network, configure settings, manage users, back-up and restore configuration data.

uniFLOW compatibility
Take advantage of the uniFLOW support for Canon’s ScanFront network document scanner to improve scan-capture workflows and enjoy more value from your Canon fleet. Featuring compact design and ultra-reliable document feeder, ScanFront can be positioned where it’s most needed to capture a wider range of documents more efficiently.

Software Developer Kit
Our Business Solutions Developer Programme (BSDP) is dedicated to give you access to a range of technical information to assist development of applications for our range of business products.

Canon imageFORMULA ScanFront 400. Maximum scan size: 8.5 x 14" (216 x 356 mm), Optical scanning resolution: 600 x 600 DPI, ADF scan speed (b/w, A4): 45 ppm. Scanner type: ADF scanner, Product color: Black, White, Display: TFT. Sensor type: CMOS CIS, Daily duty cycle (max): 6000 pages, Light source: RGB LED. Auto document feeder (ADF) input capacity: 60 sheets. Maximum ISO A-series paper size: A4, Scanning media types supported: Business Card, Plastic Card, Post Card(JPN), ISO A-series sizes (A0...A9): A4

Maximum scan size	8.5 x 14" (216 x 356 mm)
Optical scanning resolution	600 x 600 DPI
Duplex scanning	Yes
Color scanning	Yes
Grayscale levels	256
ADF scan speed (b/w, A4)	45 ppm
ADF scan speed (color, A4)	45 ppm
Scanner type	ADF scanner
Built-in display	Yes
Product color	Black, White
Display	TFT
Display diagonal	10.1"
Display resolution	1024 x 600 pixels
Touchscreen	Yes
Sensor type	CMOS CIS
Daily duty cycle (max)	6000 pages
Light source	RGB LED
Scan file formats	PDF, PNG, TIFF
Scan to	E-mail, FTP, Fax, USB
Auto document feeder (ADF) input capacity	60 sheets
Maximum ISO A-series paper size	A4
Scanning media types supported	Business Card, Plastic Card, Post Card(JPN)
ISO A-series sizes (A0...A9)	A4
Media thickness (min)	0.00157" (0.0400 mm)
Auto Document Feeder (ADF) media weight	27 - 209 g/m²
Maximum scan width	8.5" (21.6 cm)
Maximum scan length	14" (35.6 cm)
USB port	Yes
USB version	2.0
Standard interfaces	Ethernet, USB 2.0
Ethernet LAN	Yes
Supported network protocols	TCP/IP (IPv4), DNS, DHCP, SMB, NTP, HTTP, FTP, SFTP, Secure sending (FTPS and SMTPS), WebDAV, LDAPS
Power supply type	AC
Power consumption (typical)	40 W
Power consumption (off)	0.5 W
AC input frequency	50 - 60 Hz
Input voltage	100-240 V
Width	12" (305 mm)
Depth	11.1" (282 mm)
Height	9.06" (230 mm)
Weight	9.92 lbs (4.5 kg)
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	10 - 32.5 °C
Operating relative humidity (H-H)	20 - 80%
Compliance certificates	RoHS
Panel type	TFT
Harmonized System (HS) code	84716070
