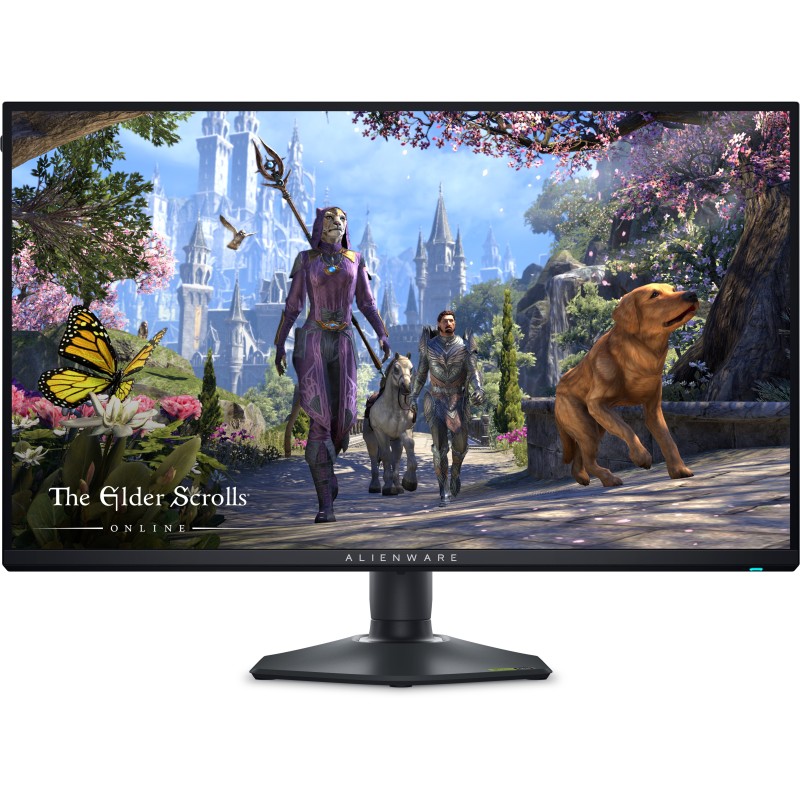

GAME-AW2725QF

Data sheet

Product color

Black

HDMI ports quantity

2

DisplayPorts quantity

1

Cable lock slot

Yes

Display diagonal

27"

Display resolution

3840 x 2160 pixels

HD type

4K Ultra HD

LED backlight

Yes

AC input frequency

50/60 Hz

Plug and Play

Yes

AC input voltage

100 - 240 V

Package weight

24.7 lbs (11.2 kg)

Touchscreen

No

Height adjustment

Yes

LED indicators

Yes

HDMI version

2.1

VESA mounting

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 80%

Storage relative humidity (H-H)

5 - 90%

Panel type

IPS

Built-in speaker(s)

No

Cables included

Market positioning

Gaming

Power consumption (standby)

0.5 W

Power consumption (off)

0.3 W

Power consumption (typical)

26.1 W

Compliance certificates

RoHS

HDCP

Yes

Power consumption (max)

140 W

Cable lock slot type

Kensington

Backlight type

Edge LED

Maximum refresh rate

180 Hz

Tilt angle range

-5 - 21°

Native aspect ratio

16:9

Display technology

LCD

Response time

0.5 ms

Screen shape

Flat

Contrast ratio (typical)

1000:1

Display number of colors

1.07 billion colors

Display brightness (typical)

400 cd/m²

Anti-glare screen

Yes

Supported graphics resolutions

640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 800, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.00612 x 0.00612" (0.155 x 0.155 mm)

Pixel density

163 ppi

Horizontal scan range

30 - 430 kHz

Vertical scan range

48 - 180 Hz

Viewable size, horizontal

23.5" (59.7 cm)

Viewable size, vertical

13.2" (33.6 cm)

Surface hardness

3H

Color depth

8 bit

sRGB coverage (typical)

100%

NVIDIA G-SYNC

Yes

AMD FreeSync

No

Flicker-free technology

Yes

Low Blue Light technology

Yes

Built-in camera

No

Built-in USB hub

Yes

HDMI

Yes

Headphone out

No

Tilt adjustment

Yes

On Screen Display (OSD)

Yes

Energy efficiency class (SDR)

G

Energy efficiency class (HDR)

G

Energy consumption (SDR) per 1000 hours

26 kWh

Energy efficiency scale

A to G

Width (with stand)

24.1" (611.4 mm)

Depth (with stand)

9.59" (243.7 mm)

Height (with stand)

20.4" (518.7 mm)

Weight (with stand)

14.8 lbs (6.73 kg)

Width (without stand)

24.1" (611.4 mm)

Depth (without stand)

2.65" (67.4 mm)

Height (without stand)

14.2" (361.2 mm)

Stand included

Yes

Cable management

Yes

Supported video modes

480p, 576p, 720p, 1080p, 2160p

Panel mounting interface

100 x 100 mm

Angle of rotation

-90 - 90°

Viewable size diagonal

27" (68.5 cm)

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-B

USB Type-A downstream ports quantity

3

Adjustable height (max)

4.33" (11 cm)

Pivot

Yes

Swiveling

Yes

Swivel angle range

-20 - 20°

Operating altitude

0 - 196850.4" (0 - 5000 m)

Non-operating altitude

196850.4 - 480000" (5000 - 12192 m)

Weight (without stand)

10.5 lbs (4.75 kg)

High Dynamic Range (HDR) supported

Yes

High Dynamic Range (HDR) technology

High Dynamic Range (HDR) 600

DCI-P3 coverage

95%

VESA Adaptive Sync support

Yes

Energy consumption (HDR) per 1000 hours

68 kWh

USB Type-C downstream ports quantity

1

Picture-in-Picture

Yes

HDCP version

1.4/2.2

Doesn't contain

Arsenic, PVC/BFR

Bezel width (bottom)

0.717" (1.82 cm)

Bezel width (side)

0.289" (7.35 mm)

Bezel width (top)

0.289" (7.35 mm)

Smart modes

MOBA/RTS, RPG, Sports

NVIDIA G-SYNC type

G-SYNC Compatible

Display brightness (peak)

600 cd/m²

Response time (fast)

3 ms

Number of USB Type-B upstream ports quantity

1

HDMI cable length

70.9" (1.8 m)

Heavy metals free

Hg (mercury)

DisplayPort cable length

70.9" (1.8 m)

DisplayPort out version

1.4

Specific References

ISBN

978-1-23456-789-0

UPC

884116469711

EAN13

5397184821787

MPN

GAME-AW2725QF
