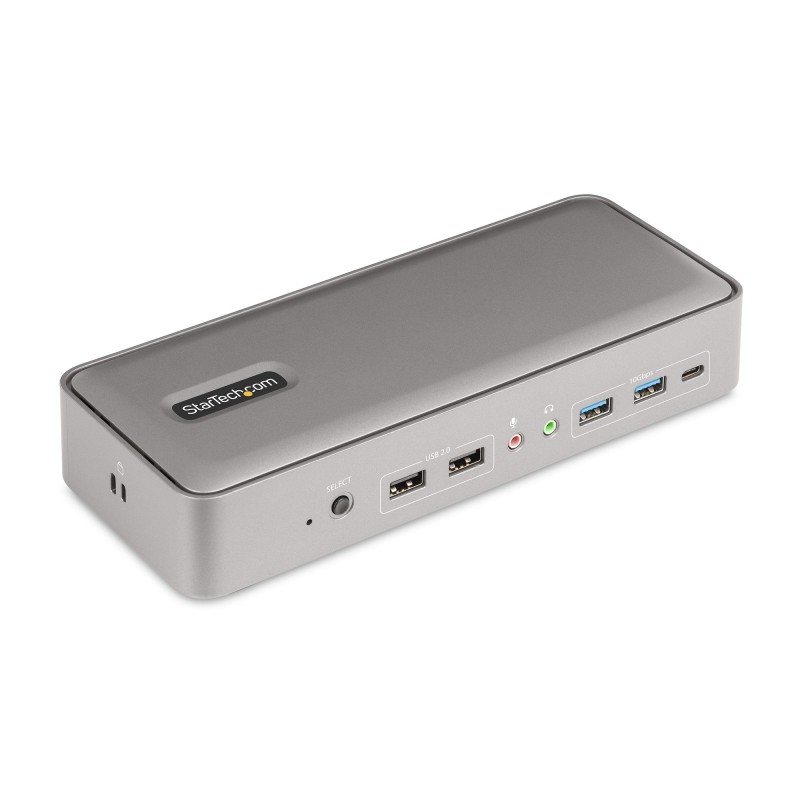

129UE-USBC-KVM-DOCK

Share a dual 4K 60Hz workstation between two laptop computers through a USB Type-C connection

Dock and Switch between two laptops to access your workstation peripherals including dual monitors, seamlessly switching between laptop computers with the push of a button. The downloadable Hot-Key software (available for Windows and macOS), enables users to switch between computers using key combinations from a keyboard.

DisplayLink Certified

The Dock is DisplayLink Certified, for Plug and Display compatibility with Windows, ChromeOS, and macOS, enabling operation and switching between multiple computers with different operating systems. DisplayLink technology also supports extended dual displays on base Apple M-Series MacBooks, which are not natively capable of driving more than one external display. The DisplayLink Certification ensures support for resolutions up to 4K 60Hz on both external displays.

Simultaneously Charge Two Laptops

The KVM Dock supports Power Delivery (PD) 3.0 and charges both connected computers over USB-C. The Dock supplies 90W of power to the active host computer and 45W of power to the second PC, ensuring both laptops can charge simultaneously.

Full-Featured Docking Station

Connect two USB-C computers to this Dock to access a wide range of port connectivity, options and features. The Dock features:

• 2x DisplayPort ports for dual display output with support for resolutions up to dual 4K 60Hz.
• 2x USB-A (USB 2.0 480Mbps) HID ports for USB devices, such as a keyboard and mouse.
• 2x USB-A and 1x USB-C (USB 3.2 Gen 2 10Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
• 1x Gigabit Ethernet port with WoL (Wake-on-LAN) for a wired Local Area Network (LAN) connection.
• 1x 3.5mm 3-position TRRS jack for stereo audio output.
• 1x 3.5mm 2-position microphone jack for mono audio input.
• 2x K-Slots (regular/nano) to tether the Dock with a cable lock (sold separately) for security.

The Dock features a mounting pattern so it can be mounted when paired with StarTech.com mounting accessories (sold separately). Our mounting accessories enable mounting to the VESA pattern on the back of a monitor or to any flat surface. The following mounts are compatible with this product:

• SSPMSUDWM - Dock Surface Mount
• SSPMSVESA - Dock VESA Mount

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : Setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : Improve network security.

•

USB Event Monitoring Utility : Track and log connected USB devices.

•

Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

Note: The StarTechLink software is not compatible with Linux; however, the base hardware KVM functionality is supported. Linux users will not have access to the following software features:

• Set Laptop Screen Location for Mouse Cursor/Keyboard Edge Scrolling.
• Switch UFP (Upstream Facing Port).
• Ctrl-Alt-Del Functionality.
• Change Hot-Key for Switching.
• KM Master for Mouse Cursor/Keyboard Edge Scrolling.

The StarTech.com Advantage


StarTech.com 129UE-USBC-KVM-DOCK. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Chipset: DisplayLink - DL6950, Genesys Logic - GL3590, Genesys Logic - GL9510, Parade - PS186, Realtek -.... Product color: Silver, Housing material: Plastic, LED indicators: LAN, Power. Input voltage: 100 - 240 V, Input current: 2.4 A, Output voltage: 20 V

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	2
DisplayPort version	1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Audio connections	Yes
Headphone outputs	1
Number of microphone inputs	1
DC-in jack	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Chipset	DisplayLink - DL6950, Genesys Logic - GL3590, Genesys Logic - GL9510, Parade - PS186, Realtek - RTL8211F
Product color	Silver
Housing material	Plastic
LED indicators	LAN, Power
Cable lock slot	Yes
Built-in display	No
Input voltage	100 - 240 V
Input current	2.4 A
Output voltage	20 V
Output current	9 A
Power consumption (typical)	180 W
External power adapter	Yes
Compatible power plug types	EU, UK
USB Power Delivery	Yes
USB Power Delivery up to	90 W
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported	Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04
Mac operating systems supported	Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS
Compliance certificates	RoHS
Operating temperature (T-T)	-10 - 45 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Width	3.54" (90 mm)
Depth	8.82" (224 mm)
Height	1.57" (40 mm)
Weight	14.2 oz (402 g)
Package width	6.3" (160 mm)
Package depth	11.2" (285 mm)
Package height	3.54" (90 mm)
Package weight	3.97 lbs (1.8 kg)
Cables included	AC, USB Type-C
Quick installation guide	Yes
AC adapter included	Yes
Master (outer) case width	15.6" (395 mm)
Master (outer) case length	15" (380 mm)
Master (outer) case height	13.4" (340 mm)
Quantity per master (outer) case	6 pc(s)
Sustainability compliance	Yes
