Reference: ST3450857SS

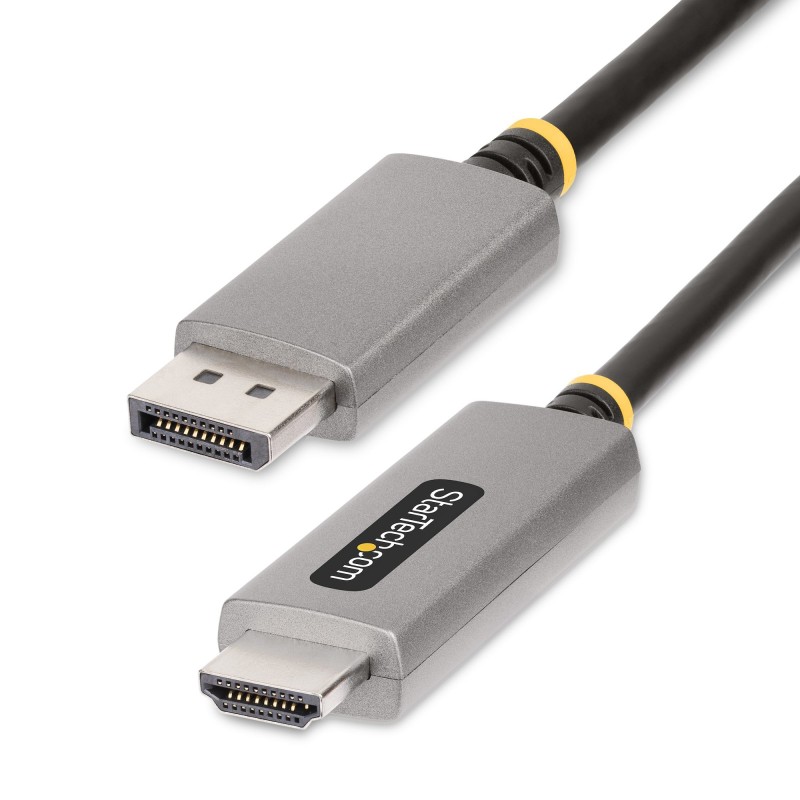

StarTech.com 133DISPLAYPORTHDMI21, 78.7" (2 m), DisplayPort, HDMI, Male, Male, Straight
Connect an 8K 60Hz or a 4K 144Hz HDMI display to a DisplayPort-enabled desktop at a distance of up to 6.6ft (2m), using this DisplayPort to HDMI Adapter Cable.
This DP to HDMI Cable enables resolutions of up to 8K 60Hz and is HDMI 2.1 FRL complaint. It supports HDR10, HDCP 1.x/2.2/2.3, and DSC 1.1/1.2a. The adapter cable supports 7.1 channel audio with Dolby Atmos and DTS:X.
*DSC support required to reach maximum resolution capabilities on Intel 11th Gen or later
The DisplayPort to HDMI Converter Cable is compatible with desktops from various brands such as Dell, HP, Lenovo, and more. It works with all hardware platforms and any operating system. The DP to HDMI Cable requires no drivers or software and works with dedicated graphics card from Nvidia and AMD.
Combining a video adapter and cable minimizes potential points of failure and signal loss. Adaptive receiver equalization optimizes the input signal and amplifies the output signal to ensure compatibility with high-resolution monitors. The cable is equipped with cage shielding to prevent Electromagnetic Interference (EMI).
| Cable length | 78.7" (2 m) |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| HDMI version | 2.1 |
| HDCP | Yes |
| HDCP version | 1.4/2.2/2.3 |
| DisplayPort version | 1.4 |
| High Dynamic Range (HDR) supported | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160, 5120 x 1440, 7680 x 4320 |
| Maximum refresh rate | 144 Hz |
| Product color | Black, Silver |
| Chipset | VMM7100 |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Supported audio channels | 7.1 |
| Converter type | Active video converter |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Dolby technologies | DTS:X, Dolby Atmos |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 75 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Compliance certificates | RoHS |
| Cable diameter | 0.236" (6 mm) |
| Weight | 3.84 oz (109 g) |
| Width | 0.827" (21 mm) |
| Height | 0.433" (11 mm) |
| Package width | 7.87" (200 mm) |
| Package depth | 8.66" (220 mm) |
| Quantity per pack | 1 pc(s) |
| Master (outer) case width | 16.3" (415 mm) |
| Master (outer) case length | 17.1" (435 mm) |
| Master (outer) case height | 16.5" (420 mm) |
| Quantity per master (outer) case | 120 pc(s) |
| Sustainability compliance | Yes |
