Description

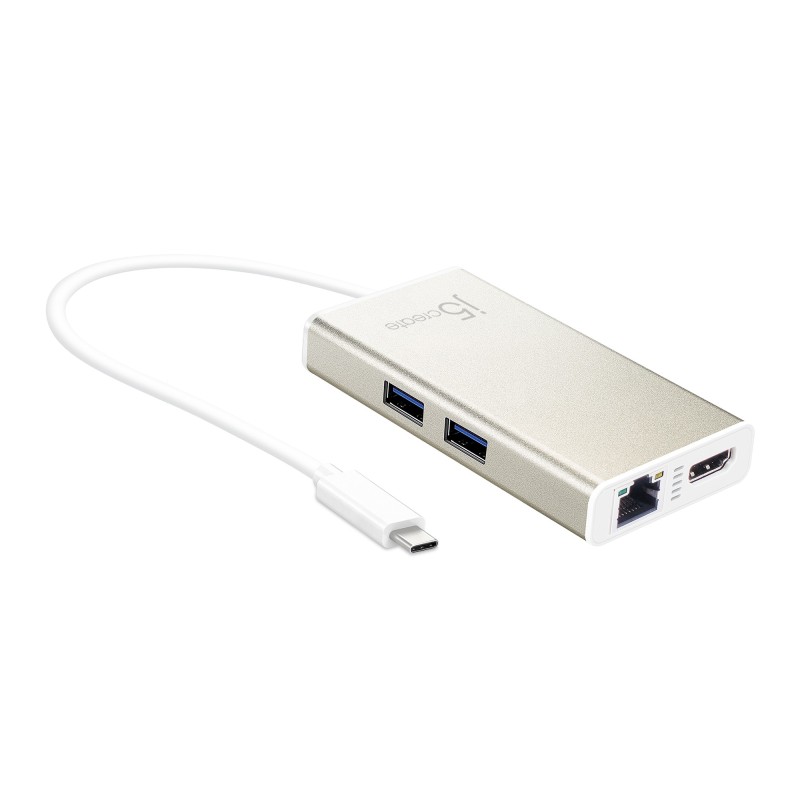

Add extra functionality to your laptop with the JCA374 USB-C® Multi-Adapter. This device allows you to add two additional USB™ peripherals, a 4K or 1080p HDMI™ display, and Gigabit Ethernet through your USB-C® port. With high-speed transmission up to 5 Gbps, data transfer is quick and easy. With USB™ Power Delivery 2.0, it supports upstream streaming ensuing your connected laptop powered up while in use.
j5create JCA374. Connectivity technology: Wired, Host interface: USB Type-C, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: Gold, White, Color name: Metallic Champagne, Data transfer rate: 5 Gbit/s. Maximum resolution: 3840 x 2160 pixels. Output voltage: 5 V, Output current: 0.22 A, Power consumption (typical): 1.15 W
Connectivity technology Wired Host interface USB Type-C USB 2.0 ports quantity 0 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 HDMI ports quantity 1 Microphone in No Headphone outputs 0 USB Power Delivery Yes USB Power Delivery revision 3.0 USB Power Delivery up to 60 W Ethernet LAN Yes Ethernet LAN (RJ-45) ports 1 Ethernet LAN data rates 10,100,1000 Mbit/s Product color Gold, White Card reader integrated No Color name Metallic Champagne Data transfer rate 5 Gbit/s Housing material Aluminum Country of origin Taiwan Compatibility Macbook™ Pro 2016 & Newer
Surface Pro™ 7
Surface Go™
Surfacebook™ 2 Maximum resolution 3840 x 2160 pixels Output voltage 5 V Output current 0.22 A Power consumption (typical) 1.15 W USB cable length 3.94" (0.1 m) Windows operating systems supported Yes Mac compatibility Yes Mac operating systems supported Yes Linux operating systems supported Yes Other operating systems supported ChromeOS Operating temperature (remote control) (T-T) 0 - 40 °C Operating temperature (T-T) 0 - 37 °C Storage temperature (T-T) -10 - 65 °C Width 1.99" (50.5 mm) Depth 3.8" (96.5 mm) Height 0.591" (15 mm) Weight 2.59 oz (73.5 g) Quantity per pack 1 pc(s) Package width 7.6" (193 mm) Package depth 4.92" (125 mm) Package height 0.984" (25 mm) Package weight 5.41 oz (153.5 g) Quick start guide Yes Packaging content 1 x JCA374 USBxC® MultixAdapter, 1 x Quick Installation Guide Drivers included Yes Master (outer) case GTIN (EAN/UPC) 24712795081033 Warranty period 2 year(s) Quantity per master (outer) case 30 pc(s) Master (outer) case width 11" (280 mm) Master (outer) case length 16.9" (430 mm) Master (outer) case height 9.25" (235 mm) Master (outer) case weight 12.4 lbs (5.64 kg) Quantity per shipping (inner) case 10 pc(s) Export Control Classification Number (ECCN) EAR99 Shipping (inner) case width 8.35" (21.2 cm) Shipping (inner) case length 10.6" (26.9 cm) Shipping (inner) case height 5.12" (13 cm) Shipping (inner) case net weight 3.4 lbs (1.54 kg) Cable length 3.94" (0.1 m) Cable type USB-C Compatible operating systems Windows® 10 / 8.1
macOS® 10.10 and later
Chrome OS™ Special features Power your laptop with up to 60W pass-through charging, Backwards compatible with USB™ 2.0 and 1.1 hosts and devices Voltage 5 V USB ports quantity 3 Box contents 1 x JCA374 USBxC® MultixAdapter, 1 x Quick Installation Guide
Product Details
Reference
W128899178
Availability date:
2025-12-10
Condition
New
Data sheet
Compatibility
Macbook™ Pro 2016 & Newer
Surface Pro™ 7
Surface Go™
Surfacebook™ 2
Product color
Gold, White
Windows operating systems supported
Yes
Quantity per pack
1 pc(s)
Connectivity technology
Wired
Host interface
USB Type-C
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Microphone in
No
Headphone outputs
0
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Card reader integrated
No
Cable length
3.94" (0.1 m)
Weight
2.59 oz (73.5 g)
Output voltage
5 V
Maximum resolution
3840 x 2160 pixels
Width
1.99" (50.5 mm)
Height
0.591" (15 mm)
Country of origin
Taiwan
Data transfer rate
5 Gbit/s
Depth
3.8" (96.5 mm)
Output current
0.22 A
Package weight
5.41 oz (153.5 g)
Compatible operating systems
Windows® 10 / 8.1
macOS® 10.10 and later
Chrome OS™
Master (outer) case width
11" (280 mm)
Master (outer) case length
16.9" (430 mm)
Master (outer) case height
9.25" (235 mm)
Master (outer) case weight
12.4 lbs (5.64 kg)
Quantity per master (outer) case
30 pc(s)
Warranty period
2 year(s)
Package width
7.6" (193 mm)
Package depth
4.92" (125 mm)
Package height
0.984" (25 mm)
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Operating temperature (T-T)
0 - 37 °C
Storage temperature (T-T)
-10 - 65 °C
USB ports quantity
3
Quick start guide
Yes
Cable type
USB-C
Other operating systems supported
ChromeOS
Housing material
Aluminum
Power consumption (typical)
1.15 W
Master (outer) case GTIN (EAN/UPC)
24712795081033
Box contents
1 x JCA374 USBxC® MultixAdapter, 1 x Quick Installation Guide
USB Power Delivery
Yes
USB Power Delivery up to
60 W
Shipping (inner) case width
8.35" (21.2 cm)
Shipping (inner) case length
10.6" (26.9 cm)
Shipping (inner) case height
5.12" (13 cm)
Drivers included
Yes
Mac compatibility
Yes
Quantity per shipping (inner) case
10 pc(s)
USB cable length
3.94" (0.1 m)
USB Power Delivery revision
3.0
Export Control Classification Number (ECCN)
EAR99
Shipping (inner) case net weight
3.4 lbs (1.54 kg)
Packaging content
1 x JCA374 USBxC® MultixAdapter, 1 x Quick Installation Guide
Voltage
5 V
Color name
Metallic Champagne
Special features
Power your laptop with up to 60W pass-through charging, Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
Operating temperature (remote control) (T-T)
0 - 40 °C
Specific References
ISBN
978-1-23456-789-0
UPC
847626001628
EAN13
0847626001628
MPN
JCA374-N
