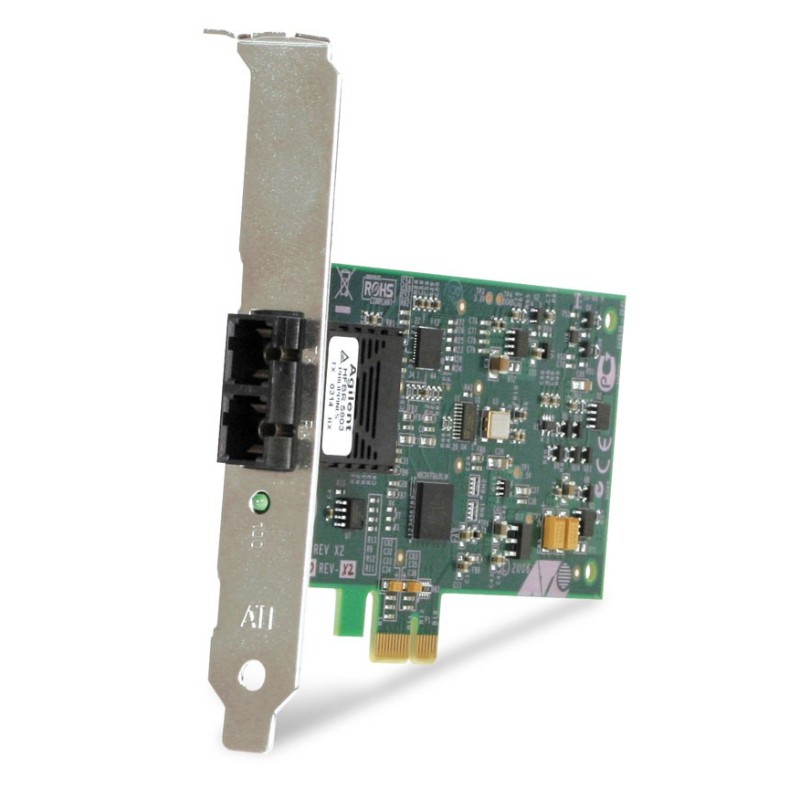

AT-2711FX/ST-901

More Bandwidth with PCI-Express Interface

AT-2711FX x1 PCI-Express (PCI-e™) design gives you the maxim possible bandwidth and bus efficiency, other benefits are: capability and Low Power Consumption.

Easy Migration Path for AT-2701FX Users

For the current customers who are using Allied Telesis’ 100Mbps Fiber cards (AT-2701FX), and want to upgrade their systems to PCI-Express, AT-2711FX is the ultimate solution.The customers can continue using their existing 100Mbps Fiber network without adding any more new equipment. For new customers equipped with PCI-Express systems,AT-2711FX gives them the ability to easily build or connect to the Fast Ethernet Fiber networks.

Advanced Manageability

The priority queuing offered by AT-2711FX can help users set up the network based on their own needs.The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a profound tool to analyze the network adapter and check
specific data.

High Reliability

The AT-2711FX Fast Ethernet Fiber Adapter comes with a comprehesive Windows utility that performs detailed tests, diagnostics, and analysis.

Allied Telesis 100FX Desktop PCI-e Fiber Network Adapter Card w/PCI Express, Federal & Government. Connectivity technology: Wired, Host interface: PCI Express. Maximum data transfer rate: 100 Mbit/s

Connectivity technology	Wired
Host interface	PCI Express
Maximum data transfer rate	100 Mbit/s
Wake-on-LAN ready	Yes
Full duplex	Yes
Certification	FCC/EN55022 Class B EN55024 Class B UL1950 CE TUV
Compatible operating systems	Windows 2000 Windows XP/2003 (32/64-bit) Linux 2.4.x Netware NDIS2
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Width	2.72" (69 mm)
Height	4.76" (121 mm)
Weight	1.76 oz (50 g)
Harmonized System (HS) code	85176990
Compliance industry standards	IEEE 802.3u, IEEE 802.1p
Flow control support	Yes
Connector(s)	ST
