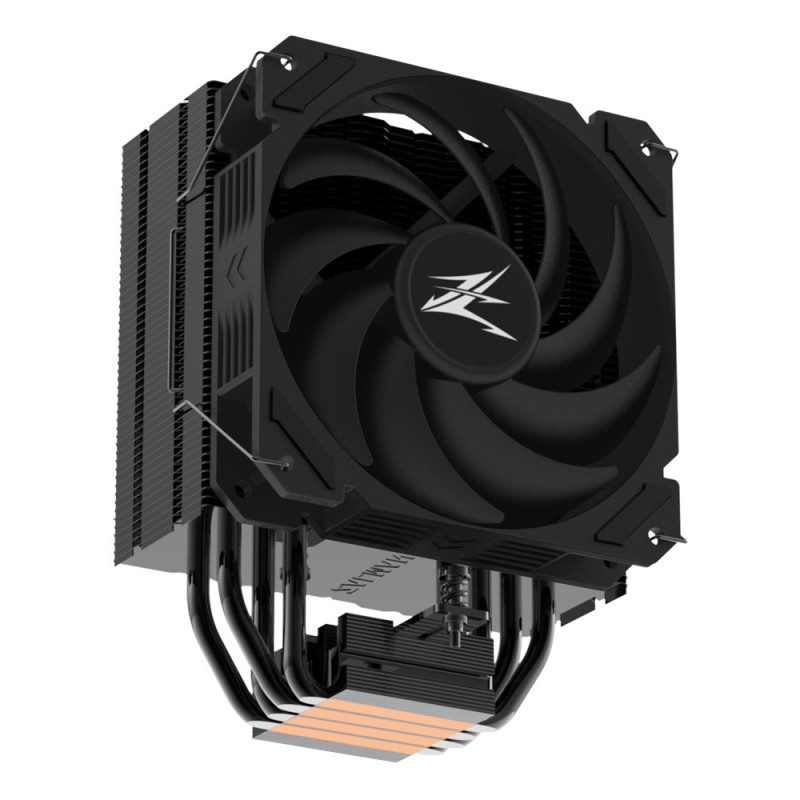

CNPS9X_PERFORMA_BLACK

Zalman CNPS9X PERFORMA BLACK (Ultra Quiet CPU Cooler) / - 120mm PWM White LED Fan / - 600 ~ 1500RPM plm10%, Intel LGA 115x, 1200, AMD AM4, AM3+, AM3, FM2+, FM2
Main features
- Minimize noise and air resistance with Vortex Breaker Blade with PWM control
- Applied rubber damper to minimize vibration noise during operation
- Minimize heat resistance with DTH technology
- Four high-performance black coated copper heat pipes
- Excellent thermal conductive thermal compound (ZM-STC8) provided

Fully compatible with the latest high-performance processors
It is fully compatible with the latest intel’s processors and AMD Ryzen. Power management technology for each processor is seamless, so you don’t have to worry about compatibility issues.

Vortex Breaker Blade(VBB)
Unlike regular cooling fans, VBB provides minimum resistance to airflow allowing minimum operation noise. Like the slit of a bird wing, VBB provides space for the air to travel through, eliminating vortex to form within the airflow.

Anti-vibration rubber damper
Applied rubber damper to minimize vibration noise during operation.

DTH (Direct Touch Heat pipes)
Direct heat transfers to heat pipes maximize cooling performance and minimize heat resistance.

Black coated copper heat pipes
Black coated adds aesthetic to CNPS 9X Performa Black and increases thermal conductivity and rust resistance of the heat pipes.

Electrophoretic coating Process
The unique black coating using the electrophoresis method provides a sleek stealth look.

Optimized PWM control
CNPS 9X Performa’s Fan has been optimized to perform at its best.

Excellent thermal conductive thermal compound ZM-STC8
CNPS9X Performa Black comes with ZM-STC8. It will provide ideal heat transfer to keep your system cool and ready for heavy loads. Minimizing heat resistance and filling in spaces between your cooler(DTH) and CPU will provide you excellent gaming experience.

Specifications
Model: CNPS9X PERFORMA BLACK
Dimensions: 122 x 76 x 157(H)mm
Materials: Pure Copper, Pure Aluminum
Weight: 680 g
Heat Dissipation Area: 6,510 cm2
Heat Pipe: 4
Q’Max: 180 W
Fan Dimensions: 120 x 120 x 25(H)mm
Fan Bearing Type: Hydro Bearing
Fan Speed: 700 ∼ 1,800 RPM ± 10%
Max. Fan Noise Level: 28 dB(A) ± 10%
Max. Fan Air Flow: 61.36CFM ± 10%
Max. Fan Air Pressure: 1.43mm H2O ± 10%
Fan Life Span: 50,000 hours
Fan Connector Type: 4-Pin
Fan Control Method: PWM Control
Rated Voltage: 12V DC
Rated Current: 0.15A
Power Consumption: 1.8W
Socket Compatibility: Intel Socket LGA1700/1200/115X, AMD Socket AM4

Zalman CNPS9X PERFORMA BLACK. Type: Air cooler, Fan diameter: 4.72" (12 cm), Airflow: 104.25 m³/h, Maximum air pressure: 1.43 mmH2O. Width: 4.8" (122 mm), Depth: 2.99" (76 mm), Height: 6.18" (157 mm). Product color: Black

Suitable location	Processor
Type	Air cooler
Fan diameter	4.72" (12 cm)
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4
Airflow	104.25 m³/h
Maximum air pressure	1.43 mmH2O
Pulse-width modulation (PWM) support	Yes
Fan noise level (min)	28 dB
Fan bearing technology	Hydro bearing
Fan speed (min)	700 RPM
Fan speed (max)	1800 RPM
Fan's mean time to failure (MTTF)	50000 h
Product color	Black
Material	Aluminum, Copper
Number of fans	1 fan(s)
Number of heat pipes	4
Fan connector	4-pin
Power consumption (typical)	1.8 W
Rated voltage	12 V
Rated current	0.15 A
Width	4.8" (122 mm)
Depth	2.99" (76 mm)
Height	6.18" (157 mm)
Weight	24 oz (680 g)
Fan dimensions (W x D x H)	4.72 x 4.72 x 0.984" (120 x 120 x 25 mm)
