90XB0A5N-BDS010

Compact productivity magic

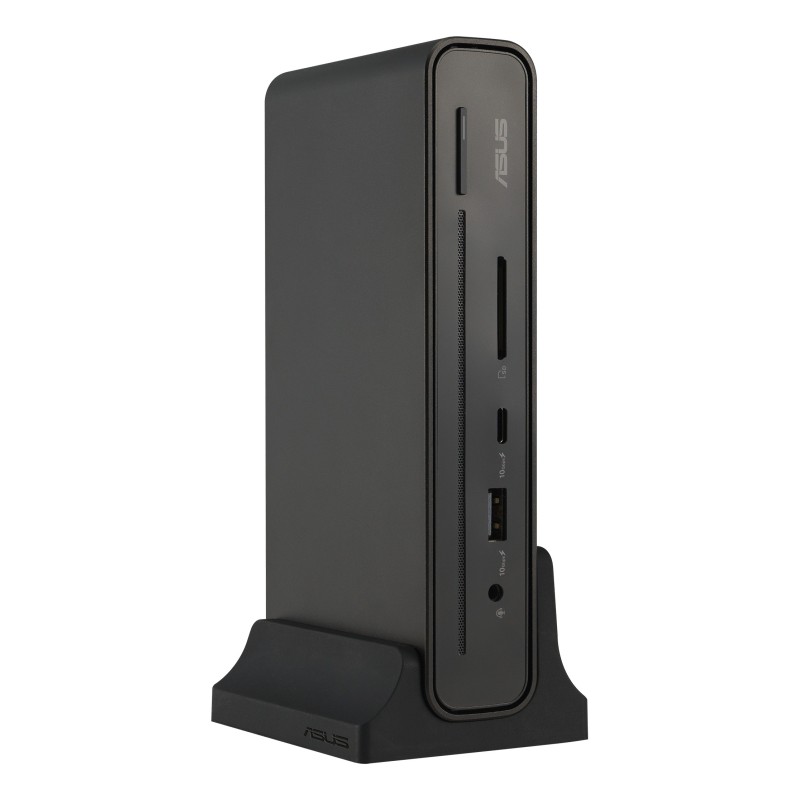

ASUS Triple Display USB-C Dock Duo DC301 Duo is a sleek, compact one-stop device that streamlines laptop connectivity. Power your laptop through a single cable, connect to your network and peripherals, and multitask with up to four monitors1 — including a laptop monitor and three external monitors. It also has an integrated SD card reader for a diverse array of business scenarios. Simply put, ASUS Triple Display USB-C Dock Duo DC301 Duo keeps your desk neat, tidy and organized while setting you up for work in the blink of an eye.

Triple-display Support
Ready for triple 4K displays
Connect up to three displays via HDMI®, 2 2 DisplayPort™ and USB-C® for expanded productivity and comfortable multitasking. ASUS Triple Display USB-C Dock Duo DC301 Duo even supports up to three 4K2 displays for exceptional visuals.

Connectivity
Connect up to 8 devices
ASUS Triple Display USB-C Dock Duo DC301 Duo has a multitude of I/O ports: three external screens can be connected via HDMI®, USB-C® and 2 DisplayPort™, two USB 3.2 Gen 1 Type-A ports support a keyboard and mouse, and there’s a USB-C® port, a USB Type-A port, an RJ45 network port, an audio jack for earphones, and a SD card reader for data transfers. That’s a total of 12 functions3.

Fast Transfers
Connect at super speeds
Enjoy 10 Gbps4 data-transfer speeds via convenient USB-C® and USB-A ports — up to 4x faster than USB 3.0 — so large files and folders can be moved or copied in moments.

High-speed Charging
Charge fast, charge in tandem
ASUS Triple Display USB-C Dock Duo DC301 supports USB Power Delivery, providing up to 90 watts to rapidly charge almost any modern USB-C device, including the latest ultraportable notebooks. It also features a traditional USB Type-A port that delivers up to 12 watts, and a USB-C® port that delivers up to 15 watts.

Efficient Control
One-button wake-up and remote management
With ASUS Triple Display USB-C Dock Duo DC301 Duo, it takes just one tap to wake your laptop and all connected displays — because the dock’s power button precisely mimics that of your laptop. It also enables IT departments to remotely wake laptops that are in standby modes to apply updates and more, helping speed up routine admin and maintenance tasks5.

One-button wake up
Press the dock’s power button to wake up your laptop and multiple connected monitors during standby mode.

Remote IT management
Enable IT management to update software with Wake-on-LAN (WoL) and PXE.

Durability
Superior durability and stability
For improved strength and resilience, ASUS Dual 4K USB-C Dock Duo has a connecting coaxial cable​ that’s shielded by an aluminum braid that provides up to 1.7x better performance than traditional cables. High-quality construction minimizes the risk of signal attenuation, reducing interference by up to 60% while ensuring rock-solid connections. The cable is also supremely tough and has been laboratory tested to withstand up to 10,000 bends and twists.
The ASUS Dual 4K USB-C Dock has also passed WWCB certification, ensuring it meets international quality and compatibility standards.

Clean and Tidy
Reduce desk clutter
ASUS Triple Display USB-C Dock Duo DC301 Duo’s compact design and multi-modal stand empower you to reduce desktop clutter by corralling multiple cables and connections through one little package — empowering you to get to work in moments.

ASUS Triple Display USB-C Dock Duo DC301. Connectivity technology: Wired, USB Power Delivery up to: 90 W. Ethernet LAN data rates: 1000 Mbit/s. Product color: Black, Compatible memory cards: SD, Data transfer rate: 10 Gbit/s. Power source type: DC, Input current: 7.5 A, Power supply: 150 W. Width: 6.3" (160 mm), Depth: 3.15" (80 mm), Height: 1.26" (32 mm)

Connectivity technology	Wired
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Microphone in	No
Headphone outputs	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery	Yes
USB Power Delivery up to	90 W
HDMI version	2.0
DisplayPorts quantity	2
DisplayPort version	1.4
Combo headphone/mic port	Yes
DC-in jack	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	1000 Mbit/s
Product color	Black
Card reader integrated	Yes
Compatible memory cards	SD
Data transfer rate	10 Gbit/s
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Cable lock slot	Yes
Cable lock slot type	Kensington
On/off switch	Yes
Power source type	DC
Input current	7.5 A
Power supply	150 W
Power cable length	39.4" (1 m)
USB cable length	39.4" (1 m)
Width	6.3" (160 mm)
Depth	3.15" (80 mm)
Height	1.26" (32 mm)
Weight	18.1 oz (514 g)
Quantity per pack	1 pc(s)
Warranty card	Yes
Cables included	AC, USB Type-C
AC adapter included	Yes
Manual	Yes
Stand included	Yes
