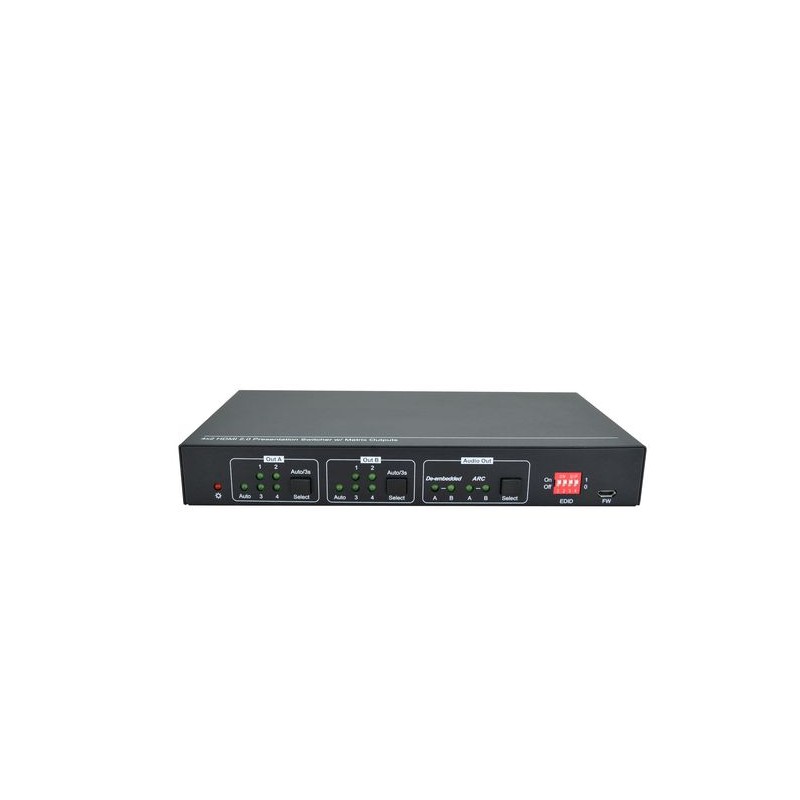

VLHDMIMAT4X2RS

Name: VLHDMIMAT4X2RS
Brand: Vivolink
SKU: 34646
Price: 337.8 CHF
Availability: InStock

Brand Vivolink

HDMI 2.0 4x2, 4K@60Hz, 18Gbps, HDCP 2.2, SPDIF, 3.5mm, RS-232, 200x28.5x100 mm

CHF337.8

Tax included

CHF312.5 Tax excluded

Delivery in 4-5 days

Quantity

In stock

In stock: 14 Items

Documents et médias

Documents 5

Brochure .pdf

Télécharger

Declarations .pdf

Télécharger

Declarations .pdf

EU_Declaration_of_Conformity

Télécharger

User Manual .pdf

Télécharger

Product Sheet .pdf

Télécharger

Description
Product Details

Description

VLHDMIMAT4X2RS is a 4K HDR capable 4x2 HDMI Matrix Switcher that features 18Gbps bandwidth and HDCP2.2 on all inputs and outputs. It’s fully compliant with HDMI2.0 standard and backward compatible with old HDMI1.4 sources and displays. SPDIF and 3.5mm audio breakout audio from corresponding HDMI outputs.

Smart EDID management.

True 4K matrix switcher that can be controlled via WEB GUI (not telnet)

4x2 HDMI presentation switcher with matrix outputs
HDMI 2.0b, 4K@60Hz 4:4:4 8bit, HDR 10, HDCP 2.2
RS232, IR and WEB GUI control (not telnet)
4K to 1080p down-scaling
SPDIF and 3.5mm output for dual HDMI OUT audio extraction and dual HDMI OUT ARC
Smart EDID management
True 4K matrix switcher that can be controlled via WEB GUI

Specifications

Design

Control type	Buttons
Housing colour	Black

Display

Built-in display

Features

Audio formats supported	PCM
Audio output channels	2.0 channels
Bandwidth	18 Gbit/s
Consumer Electronics Control (CEC) support	Yes
Extended display identification data (EDID)	Yes
HD type	4K Ultra HD
HDCP	Yes
HDCP version	2.2
High Dynamic Range (HDR) supported	Yes
LED indicators	Yes
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Plug and Play	Yes
Product colour	Black
Product type	Scaling matrix switcher
Remote control type	IR + RS232

Operational conditions

Operating temperature (T-T)

-5 - 55 °C

Packaging content

AC adapter included	Yes
Cables included	IR sensor
Mounting brackets included	No
Remote control included	Yes

Ports & interfaces

3.5 mm (1/8-inch) out	Yes
Audio (L/R) out	1
Digital audio optical out	1
Ethernet LAN (RJ-45) ports	1
HDMI in	4
HDMI input ports quantity	4
HDMI output ports quantity	2
HDMI ports quantity	6
HDMI version	2.0b
Number of HDMI outputs	2
RJ-45 input ports	1
RS-232 ports	1
S/PDIF out port	Yes
USB connector type	Micro-USB
USB ports quantity	1

Power

AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Output current	1000 mA
Output voltage	12 V
Power consumption (max)	7.5 W

Technical details

Audio support

Yes

Vendor information

Brand Name	Vivolink
Warranty	5

Product Details

In stock 14 Items

Condition New

Data sheet

Handheld remote control: Yes
HDCP: Yes
S/PDIF out port: Yes
Extended display identification data (EDID): Yes
Number of HDMI outputs: 2
Remote control type: IR + RS232
Anzahl der HDMI-Anschlüsse: 6
Anzahl der HDMI-Ausgangsanschlüsse: 2
Anzahl der HDMI-Eingangsanschlüsse: 4
Ethernet-LAN-Anschlüsse (RJ-45): 1
Produktart: Scaling matrix switcher
Inklusive Netzteil: Yes
Plug-and-Play: Yes
LED-Anzeigen: Yes
Kabel enthalten: IR sensor
Unterstützte Audioformate: PCM
AC-Eingangsfrequenz: 50/60 Hz
AC-Eingangsspannung: 100 - 240 V
Maximum Auflösung: 3840 x 2160 Pixel
Ausgangsstrom: 1000 mA
Bandbreite: 18 Gbit/s
Gehäusefarbe: Black
Eingebautes Display: No
Anzahl der USB-Anschlüsse: 1
Stromverbrauch (max.): 7.5 W
USB-Anschlusstyp: Micro-USB
HDMI-Version: 2.0b
High Dynamic Range (HDR) wird unterstützt: Yes
HDCP-Version: 2.2
HD-Typ: 4K Ultra HD
Brand Name: Vivolink
Warranty: 5
Betriebstemperatur (TT): -5 - 55 °C
Ausgangsspannung: 12 V
Produktfarbe: Black
Audio-Ausgangskanäle: 2.0 Kanäle
Montagehalterungen enthalten: No
RJ-45-Eingangsports: 1
Audio (L/R)-Ausgang: 1
Unterstützung für Consumer Electronics Control (CEC): Yes
HDMI-Eingang: 4
Audiounterstützung: Yes
3,5 mm (1/8 Zoll) heraus: Yes
Steuerungstyp: Buttons
Maximum Bildrate: 60 fps
Optischer Ausgang für digitales Audio: 1
RS-232-Anschlüsse: 1

Specific References

ISBN: 978-1-23456-789-0
EAN13: 5706998972637
MPN: VLHDMIMAT4X2RS
