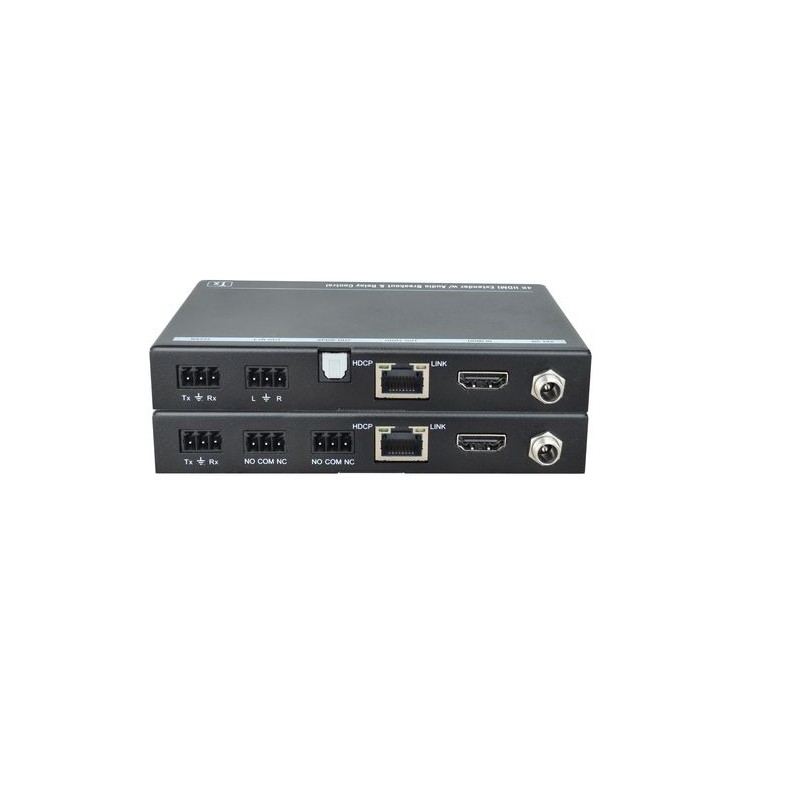

VLHDMIEXT416

Vivolink
HDBaseT Extender kit w/relay
CHF487.3
Tax included
CHF450.8 Tax excluded
Delivery in 4-5 days
Quantity
In stock
50 Items

Description
HDBaseT extender kit including relay for projector screen Rx unit and audio de-embed on Tx


2 way PoC, IR, RS232, one PSU, HDMI 1.4 and HDCP2.2 compliant


Typical installation:
It can be installed anywhere need to extend AV/IR/RS232 control signals
E.g. Meeting room or Residential or digital signage etc.


Function:
HDMI extender
Relays output on receiver unit can control screen up/down via RS232 codes.
Audio de-embed on transmitter unit for connection to audio system
Point to point Tx to Rx for 70m@1080P,40m 4K
  • 4K HDMI Extender set
  • HDMI 1.4(4K@60 4:2:0), HDCP 2.2
  • HDBT extension up to 1080P@70m & 4K@40m
  • Relay control for projection screen
  • Audio de-embedder on Tx
  • CEC pass-through
  • Two way PoC

Specifications

Features

Bandwidth10.2 Gbit/s
Cable types supportedCat5e/Cat6
CEC pass-throughYes
HDBaseT certifiedYes
HDCP & EDID bypassYes
HDCP pass-throughYes
IR pass-throughYes
LED indicatorsYes
Maximum resolution4096x2160 pixels
Maximum transfer distance70 m
Product colourBlack
Remote control typeIR + RS232
RS-232 pass-throughYes
Supported video modes3840p
TypeAV transmitter & receiver
Wall mountableYes

Operational conditions

Operating temperature (T-T)-25 - 70 °C

Packaging content

AC adapter includedYes
Included power plug typesEU/GB
IR blaster includedNo
IR receiver includedNo
Mounting brackets includedYes

Ports & interfaces

3.5 mm (1/8-inch) inYes
3.5 mm (1/8-inch) outYes
Connectivity technologyWired
DC-in jackYes
HDMI in1
HDMI version1.4
Number of HDMI outputs1
Remote (IR) input1
Remote (IR) output1
RJ-45 input ports1
RJ-45 output ports1
RS-232 input ports1
RS-232 output ports1
Serial interface typeRS-232
Serial ports quantity1
Video in1
Video out1

Power

AC input frequency50 / 60 Hz
AC input voltage100 - 240 V
External power adapterYes
Power consumption (receiver) (max)9 W
Power consumption (transmitter) (max)9 W
Power over Ethernet (PoE)Yes

Technical details

Audio supportYes

Vendor information

Brand NameVivolink
Warranty5
Product Details
50 Items
New

Data sheet

Number of HDMI outputs
1
Remote control type
IR + RS232
IR blaster included
No
an der Wand montierbar
Yes
Stromversorgung über Ethernet (PoE)
Yes
Fernbedienungseingang (IR)
1
Inklusive Netzteil
Yes
DC-Eingangsbuchse
Yes
External power supply
Yes
LED-Anzeigen
Yes
Anzahl der seriellen Anschlüsse
1
Typ der seriellen Schnittstelle
RS-232
Konnektivitätstechnologie
Wired
AC-Eingangsfrequenz
50 / 60 Hz
AC-Eingangsspannung
100 - 240 V
Maximum Auflösung
4096x2160 Pixel
Unterstützte Videomodi
3840p
Bandbreite
10.2 Gbit/s
Maximum Übertragungsentfernung
70 m
Enthaltene Netzsteckertypen
EU/GB
HDMI-Version
1.4
Typ
AV transmitter & receiver
Brand Name
Vivolink
Warranty
5
Betriebstemperatur (TT)
-25 - 70 °C
Produktfarbe
Black
Montagehalterungen enthalten
Yes
RJ-45-Ausgangsports
1
RJ-45-Eingangsports
1
Unterstützte Kabeltypen
Cat5e/Cat6
CEC-Pass-Through
Yes
HDBaseT-zertifiziert
Yes
HDCP- und EDID-Bypass
Yes
HDCP-Pass-Through
Yes
IR-Durchgang
Yes
IR-Empfänger enthalten
No
HDMI-Eingang
1
Remote-Ausgang (IR).
1
Video aus
1
Video ein
1
Leistungsaufnahme (Empfänger) (max.)
9 W
Leistungsaufnahme (Sender) (max)
9 W
Audiounterstützung
Yes
RS-232-Pass-Through
Yes
3,5 mm (1/8 Zoll) heraus
Yes
3,5 mm (1/8 Zoll) Zoll
Yes
RS-232-Ausgangsports
1
RS-232-Eingangsports
1

Specific References

ISBN
978-1-23456-789-0
EAN13
5706998558275
MPN
VLHDMIEXT416
