VL120016T
  • VL120016T
  • VL120016T
  • VL120016T

VL120016T

Vivolink
HDMI Extender slim 4K with IR + RS-232 control, Transmitter, 70m
CHF288.5
Tax included
CHF266.9 Tax excluded
Delivery in 4-5 days
Quantity
In stock
35 Items

Description

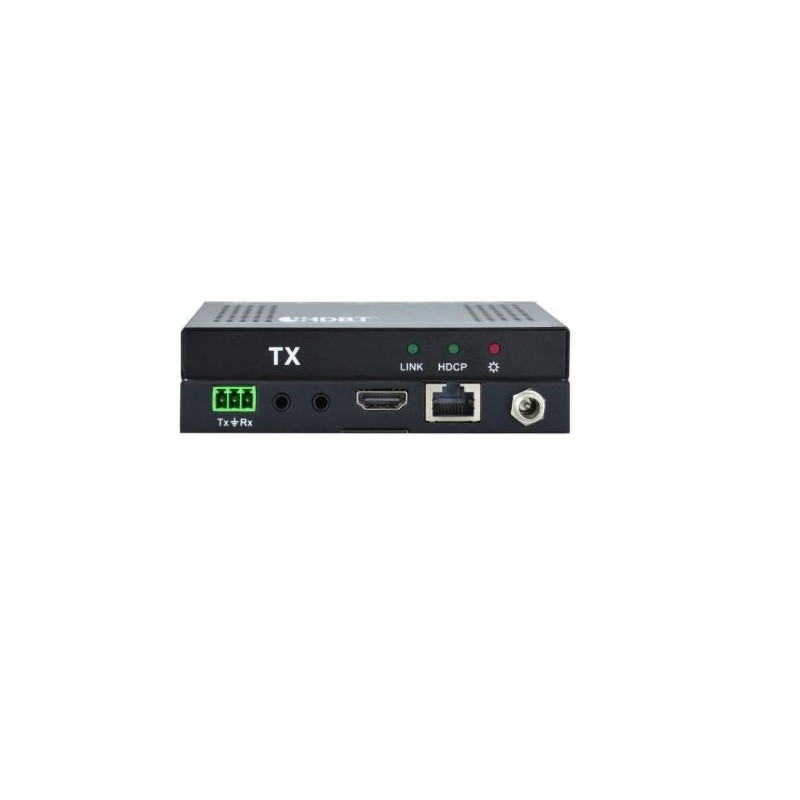

VL120016T is a mini-size HDBaseT Extender transmitter, supporting 1080P/ 4K signal transmission up to 131ft (40m), 1080P signal up to 230ft (70m) over single CAT5e/6 cable. VL120016 supports CEC, bidirectional RS232 & IR control, and one way-directional PoH function.
  • Support up to 4K@30Hz 4:2:0 video signal transmission
  • Max transmission distance is 4K 131ft (40m) and 1080P 230ft (70m) over single CAT5e/CAT6 cable
  • High Bandwidth: 10.2Gbps
  • Compliant with HDMI & HDCP1.4
  • Use HDBaseT technology for extended capability and reliability
  • Support ARC
  • Bi-directional IR pass-through

Specifications

Features

3DYes
Bandwidth10.2 Gbit/s
Cable types supportedCat5e/Cat6
CEC pass-throughYes
Consumer Electronics Control (CEC) supportYes
HDBaseT certifiedYes
HDCPYes
HDCP & EDID bypassYes
HDCP pass-throughYes
HDCP version2.2
IR pass-throughYes
LED indicatorsYes
Maximum resolution4096x2160 pixels
Maximum transfer distance70 m
Product colourBlack
Remote control typeIR
RS-232 pass-throughYes
Supported video modes1080p
TypeAV transmitter
Wall mountableYes

Operational conditions

Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 50 °C

Packaging content

AC adapter includedYes
Included power plug typesEU/GB
IR blaster includedNo
IR receiver includedNo
Mounting brackets includedYes

Ports & interfaces

3.5 mm (1/8-inch) inYes
3.5 mm (1/8-inch) outYes
Connectivity technologyWired
DC-in jackYes
HDMI in1
HDMI version1.4
Number of HDMI outputs1
Remote (IR) input1
Remote (IR) output1
RJ-45 output ports1
RS-232 input ports1
RS-232 output ports1
Serial interface typeRS-232
Serial ports quantity2
Video in1
Video out1

Power

AC input frequency50 / 60 Hz
AC input voltage100 - 240 V
External power adapterYes
Operating voltage24 V
Output current1.25 A
Power consumption (transmitter) (max)11 W
Power over Ethernet (PoE)Yes

Technical details

Audio supportYes

Vendor information

Brand NameVivolink
Warranty5
Product Details
35 Items
New

Data sheet

3D
Yes
HDCP
Yes
Number of HDMI outputs
1
Remote control type
IR
IR blaster included
No
an der Wand montierbar
Yes
Stromversorgung über Ethernet (PoE)
Yes
Fernbedienungseingang (IR)
1
Inklusive Netzteil
Yes
DC-Eingangsbuchse
Yes
External power supply
Yes
LED-Anzeigen
Yes
Anzahl der seriellen Anschlüsse
2
Typ der seriellen Schnittstelle
RS-232
Konnektivitätstechnologie
Wired
AC-Eingangsfrequenz
50 / 60 Hz
AC-Eingangsspannung
100 - 240 V
Maximum Auflösung
4096x2160 Pixel
Unterstützte Videomodi
1080p
Ausgangsstrom
1.25 A
Bandbreite
10.2 Gbit/s
Betriebsspannung
24 V
Maximum Übertragungsentfernung
70 m
Enthaltene Netzsteckertypen
EU/GB
HDMI-Version
1.4
HDCP-Version
2.2
Typ
AV transmitter
Brand Name
Vivolink
Warranty
5
Betriebstemperatur (TT)
0 - 50 °C
Relative Luftfeuchtigkeit im Betrieb (HH)
10 - 90 %
Produktfarbe
Black
Montagehalterungen enthalten
Yes
RJ-45-Ausgangsports
1
Unterstützte Kabeltypen
Cat5e/Cat6
CEC-Pass-Through
Yes
HDBaseT-zertifiziert
Yes
HDCP- und EDID-Bypass
Yes
HDCP-Pass-Through
Yes
IR-Durchgang
Yes
Unterstützung für Consumer Electronics Control (CEC)
Yes
IR-Empfänger enthalten
No
HDMI-Eingang
1
Remote-Ausgang (IR).
1
Video aus
1
Video ein
1
Leistungsaufnahme (Sender) (max)
11 W
Audiounterstützung
Yes
RS-232-Pass-Through
Yes
3,5 mm (1/8 Zoll) heraus
Yes
3,5 mm (1/8 Zoll) Zoll
Yes
RS-232-Ausgangsports
1
RS-232-Eingangsports
1

Specific References

ISBN
978-1-23456-789-0
EAN13
5711783791713
MPN
VL120016T
