Reference: ST3450857SS
Brand: Seagate
ST3450857SS _ RFB
Seagate Cheetah 450GB 3.5, 450 GB, 15000 RPM, 16 MB, 3.5", SAS
CHF56.2
tax incl.
CHF52.0
tax excl.
In stock
CHF37.0
tax incl.
CHF34.2
tax excl.
In stock
Brand: Asus
0A001-00264800
ASUS 0A001-00264800, Laptop, Indoor, 100 - 240 V, 50 - 60 Hz, 180 W, 20 V
CHF89.3
tax incl.
CHF82.6
tax excl.
Will be ordered for you
Description

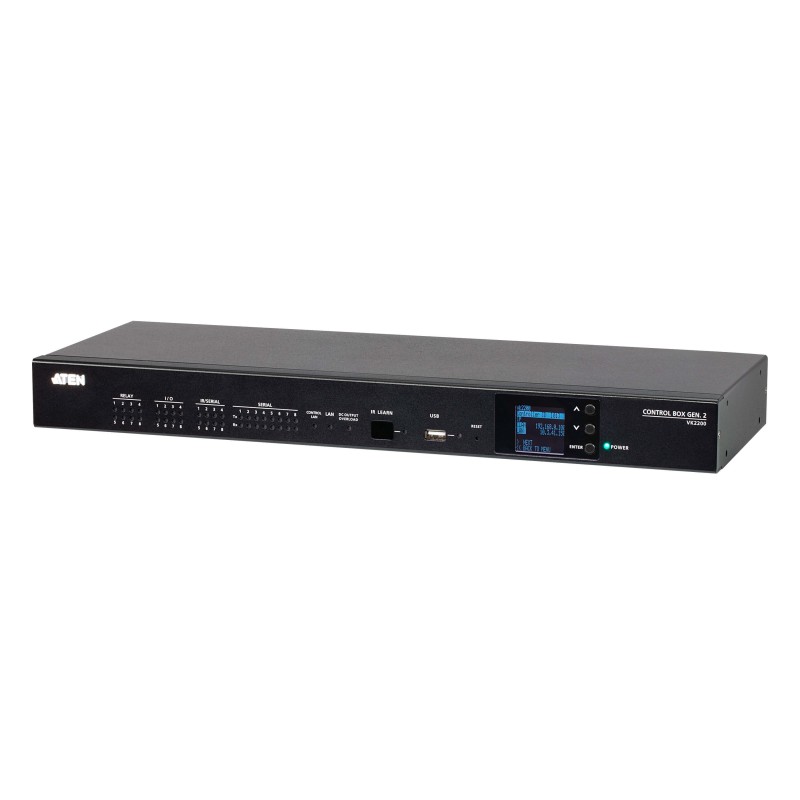

VK2200, ATEN’s second-generation Control Box, boasts the highest performance processor within the series. Equipped with a quad-core CPU and 2 GB / 1 GB memory, VK2200 provides real-time response and status updates and can process complex, high-loading events with customized GUI designs, as well as multiuser access control to connected devices. VK2200 features dual, isolated LAN ports – Control LAN and LAN. The Control LAN allows managed devices to be securely protected within a separate network, independent from the corporate network, for fulfilling high-security and stability demand. On the other hand, the LAN can be connected to ATEN Unizon, a centralized platform streamlining daily AV / IT management, which provides users with the convenience to monitor, troubleshoot, and maintain multiple systems all at once.
The VK2200 Control Box can be used to easily manage any room setting, and can be deployed into an existing installation by seamless integration with ATEN VanCryst ProAV products, as well as nearly any hardware or software device found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches, and many more. VK2200 is the perfect solution for managing mass device deployments especially in strict security settings with high performance requirements, such as government agencies, military facilities, corporate organizations, and healthcare institutions.
VK2200 is a part of ATEN’s Control System Series, a standard Ethernet-based management system, which consists of hardware, configurator software, control interfaces and related services, to control any hardware and software devices within a room setting, such as boardrooms and lecture halls, and to provide direct, centralized management effortlessly via user-defined GUIs from any mobile device, ATEN Keypad and Touch Panel.
ATEN VK2200. Product color: Black, Housing material: Metal, Display type: LCD. Internal memory: 2 GB, Internal storage capacity: 8 GB, Storage media type: Flash. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). USB port type: USB Type-A, Serial interface type: RS-232, RS-232/422/485. Power consumption (max): 6.8 W, Power consumption (typical): 5.7 W
The VK2200 Control Box can be used to easily manage any room setting, and can be deployed into an existing installation by seamless integration with ATEN VanCryst ProAV products, as well as nearly any hardware or software device found in a room, including AV equipment, lighting, conference systems, air conditioning, motion sensors, power switches, and many more. VK2200 is the perfect solution for managing mass device deployments especially in strict security settings with high performance requirements, such as government agencies, military facilities, corporate organizations, and healthcare institutions.
VK2200 is a part of ATEN’s Control System Series, a standard Ethernet-based management system, which consists of hardware, configurator software, control interfaces and related services, to control any hardware and software devices within a room setting, such as boardrooms and lecture halls, and to provide direct, centralized management effortlessly via user-defined GUIs from any mobile device, ATEN Keypad and Touch Panel.
ATEN VK2200. Product color: Black, Housing material: Metal, Display type: LCD. Internal memory: 2 GB, Internal storage capacity: 8 GB, Storage media type: Flash. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). USB port type: USB Type-A, Serial interface type: RS-232, RS-232/422/485. Power consumption (max): 6.8 W, Power consumption (typical): 5.7 W
| Built-in display | Yes |
| Processor cores | 4 |
| Product color | Black |
| Housing material | Metal |
| On/off switch | Yes |
| LED indicators | Yes |
| Reset button | Yes |
| Display type | LCD |
| Display diagonal | 1.6" |
| Display resolution | 128 x 64 pixels |
| Heat dissipation | 144 BTU/h |
| Number of relay pins | 16 |
| Internal memory | 2 GB |
| Internal storage capacity | 8 GB |
| Storage media type | Flash |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Supported network protocols | ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH |
| USB port | Yes |
| USB ports quantity | 1 |
| USB port type | USB Type-A |
| RS-232 ports | 8 |
| RS-422 ports | 2 |
| RS-485 ports | 2 |
| Number of analog I/O pins | 10 |
| IR connectivity | Yes |
| DC-in jack | Yes |
| Serial interface type | RS-232, RS-232/422/485 |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Power consumption (max) | 6.8 W |
| Power consumption (typical) | 5.7 W |
| Country of origin | Taiwan |
| Quantity per master (outer) case | 1 pc(s) |
| Master (outer) case weight | 10.4 lbs (4.72 kg) |
| Master (outer) case width | 9.72" (247 mm) |
| Master (outer) case length | 21.9" (556 mm) |
| Master (outer) case height | 6.02" (153 mm) |
| Master (outer) case net weight | 7.96 lbs (3.61 kg) |
| Terminal block included | Yes |
| License quantity | 2 license(s) |
| Manual | Yes |
| Power cord included | Yes |
| Package volume | 16423.77 cm³ |
| Master (outer) case volume | 20954.47 cm³ |
| Width | 6.43" (163.2 mm) |
| Depth | 17" (432.4 mm) |
| Height | 1.73" (44 mm) |
| Weight | 5.78 lbs (2.62 kg) |
| Package width | 5.16" (131 mm) |
| Package depth | 21.3" (540 mm) |
| Package height | 9.17" (233 mm) |
| Package weight | 9.17 lbs (4.16 kg) |
Product Details
2025-12-08
New
Data sheet
- Product color
- Black
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Weight
- 5.78 lbs (2.62 kg)
- Display diagonal
- 1.6"
- Display resolution
- 128 x 64 pixels
- Internal memory
- 2 GB
- Processor cores
- 4
- Width
- 6.43" (163.2 mm)
- Height
- 1.73" (44 mm)
- Country of origin
- Taiwan
- Depth
- 17" (432.4 mm)
- Display type
- LCD
- Package weight
- 9.17 lbs (4.16 kg)
- Master (outer) case width
- 9.72" (247 mm)
- Master (outer) case length
- 21.9" (556 mm)
- Master (outer) case height
- 6.02" (153 mm)
- Master (outer) case weight
- 10.4 lbs (4.72 kg)
- Quantity per master (outer) case
- 1 pc(s)
- Package width
- 5.16" (131 mm)
- Package depth
- 21.3" (540 mm)
- Package height
- 9.17" (233 mm)
- Built-in display
- Yes
- LED indicators
- Yes
- DC-in jack
- Yes
- On/off switch
- Yes
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Internal storage capacity
- 8 GB
- USB ports quantity
- 1
- USB port
- Yes
- Manual
- Yes
- Housing material
- Metal
- Cabling technology
- 10/100/1000Base-T(X)
- Power consumption (typical)
- 5.7 W
- Power consumption (max)
- 6.8 W
- Supported network protocols
- ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
- Reset button
- Yes
- Master (outer) case net weight
- 7.96 lbs (3.61 kg)
- License quantity
- 2 license(s)
- Package volume
- 16423.77 cm³
- Power cord included
- Yes
- Heat dissipation
- 144 BTU/h
- Master (outer) case volume
- 20954.47 cm³
- USB port type
- USB Type-A
- RS-232 ports
- 8
- Serial interface type
- RS-232, RS-232/422/485
- RS-422 ports
- 2
- Storage media type
- Flash
- Number of relay pins
- 16
- Number of analog I/O pins
- 10
- IR connectivity
- Yes
- Terminal block included
- Yes
- RS-485 ports
- 2
Specific References
- ISBN
- 978-1-23456-789-0
- EAN13
- 4710469341083
- MPN
- VK2200-AT-G
