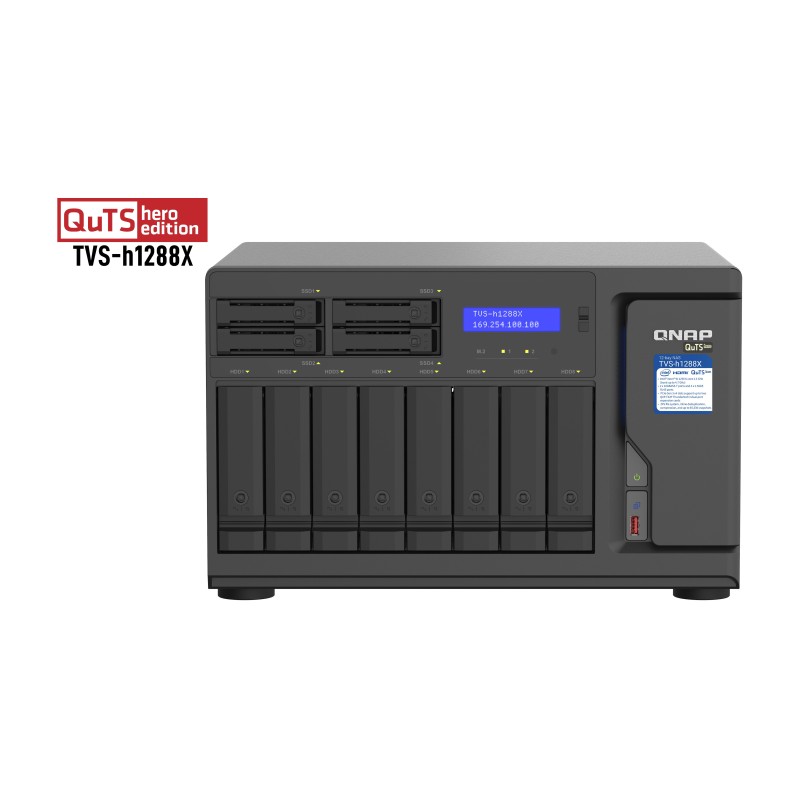

TVS-H1288X-W1250-16G

Intel® Xeon® W desktop QuTS hero NAS, ideal for high-speed media collaboration over Thunderbolt™ 3 and 10GbE virtual machine applications

The high-capacity TVS-h1288X features a powerful Intel® Xeon® W processor and allows for installing two QNAP QXP-T32P Thunderbolt™ 3 PCIe expansion cards (sold separately) to attain four Thunderbolt™ 3 ports, making it a perfect match for Thunderbolt™-equipped Mac® and Windows® users for high-speed media collaboration. The built-in 10GbE and 2.5GbE connectivity supports Port Trunking and failover to further satisfy bandwidth and reliability demanding business applications.

Six cores up to 4.7 GHz with up to 128 GB DDR4 ECC memory
Intel® Xeon® W processors are designed for a wide range of creative professionals. Powered by an Intel® Xeon® W-1250 6 cores/12 threads 3.3 GHz processor (Burst up to 4.7 GHz), the TVS-h1288X has enormous processing power to drive virtual machine performance. The integrated Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of NAS data. With dual-channel modules and 4 Long-DIMM slots, the TVS-h1288X’s DDR4 ECC memory can be upgraded up to 128 GB for memory-intensive and complex multitasking workloads.

Streamline video editing and 4K workflows with Thunderbolt™ 3 connectivity
You can install two QXP-T32P Thunderbolt™ 3 expansion cards (sold separately) to the PCIe Gen 3 x4 slots of the TVS-h1288X and transform it into a Thunderbolt™ 3 NAS with quad-port Thunderbolt™ 3 connectivity. Up to four Thunderbolt™-equipped workstations can be connected to the TVS-h1288X to achieve greater teamwork efficiency in 4K workflows, file storage, backup, and sharing. An SLC/MLC SSD RAID 5 configuration is recommended for the highest possible performance and the best storage allocation for your NAS.

Dual 10GbE connectivity optimizes high-speed data transfer
The TVS-h1288X comes with a pre-installed dual-port 10GBASE-T network card (supports 10GbE/1GbE), supporting failover and up to 20Gb/s bandwidth under Port Trunking, to improve bandwidth-demanding data center, virtualization applications, and high-speed backup and recovery. The TVS-h1288X is also ideally matched with QNAP’s managed and unmanaged 10GbE switches to form high-speed, secure and scalable network environments without going over budget.

Direct 4K HDMI output
The TVS-h1288X features Intel® UHD Graphics P630 that supports hardware decoding and real-time transcoding. The HDMI output supports up to 4K (4096 x 2160p) @30Hz, providing great benefits for applications like video production/editing, industrial design and professional photography that demand on-image resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-h1288X to an HDMI display, you can directly watch multimedia content saved on the NAS with QNAP RM-IR004 remote control (sold separately).

Set SSD caching to boost IOPS with M.2 NVMe SSD
The TVS-h1288X comes with four 2.5-inch SATA 6Gb/s drive bays for SSDs and two M.2 NVMe Gen 3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance, reduce storage volume latency, and optimize 2.5GbE/10GbE performance. This is especially perfect for databases and virtual machine applications. With dedicated SSD bays/slots, the TVS-h1288X allows you to dedicate all of the 3.5-inch drive bays for high-capacity hard drives, ensuring both maximized storage capacity and performance.

ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Data integrity is key
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.

Data reduction improves storage efficiency and performance
Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.

Multi-level cache technology
Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.

RAID Z enables robust data protection
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.

QSAL (QNAP SSD Antiwear Leveling) enhances data protection
RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.

App Center ecosystem extends NAS functionality
Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TVS-h1288X.

Tiered storage configuration for a QuTS hero NAS
Basic requirements for setup are similar to QTS. We recommend you to follow these steps to acquire optimal storage efficiency and performance for QuTS hero.

Inline data deduplication, compression, and compaction drives big data storage efficiency
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TVS-h1288X optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.

Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

Snapshots multiply backup protection
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.

HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TVS-h1288X to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.

All-in-one virtual machine and container hosting solution
You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station
Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station
Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.

License-free VMware® and Hyper-V backup appliance
With Hyper Data Protector, the TVS-h1288X becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.

Move business data to the cloud and enjoy low latency access to cloud-based data
The TVS-h1288X perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible, and secure hybrid cloud applications.

HybridMount file-based cloud gateway
Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud block-based cloud gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.

Subscribe to QVR Elite surveillance solution for 24/7 security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. You can arrange a dedicated, independent storage space for surveillance data on the TVS-h1288X and enjoy simplified camera management, storage space allocation, camera live viewing and playback. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. With QVR Pro Client software installed on your Windows®/Mac® or mobile devices, taking full control over monitored areas becomes more convenient and easier.

Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TVS-h1288X, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

More productivity applications
Boxafe
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® to the TVS-h1288X.

Security Counselor
A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Qsirch
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

QNAP TVS-h1288X. Type: NAS. Chassis type: Tower. Processor family: Intel® Xeon®, Processor model: W-1250, Processor frequency: 3.3 GHz. Internal memory: 16 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QuTS hero

Storage drives installed	No
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	12
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Storage drive capacity	0 GB
RAID support	Yes
Supported storage drive interfaces	M.2, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5,M.2
Number of M.2 (M & B) slots	2
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
Disk roaming	Yes
Processor family	Intel® Xeon®
Processor manufacturer	Intel
Processor model	W-1250
Processor frequency	3.3 GHz
Processor boost frequency	4.7 GHz
Processor cores	6
Processor threads	12
Processor cache	12 MB
CPU configuration (max)	1
On-board graphics card model	Intel UHD Graphics P630
Internal memory	16 GB
Internal memory type	DDR4
Maximum RAM supported	128 GB
Memory slots	4
Memory form factor	UDIMM
Flash memory	5000 MB
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Copper ethernet cabling technology	10GBASE-T
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	IPv4, IPv6
Link aggregation	Yes
Load balancing system	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN (RJ-45) ports	6
USB port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	1.4b
Concurrent connections	10000
PCI Express x4 (Gen 3.x) slots	2
PCI Express x8 (Gen 3.x) slots	1
Chassis type	Tower
Cooling type	Active
Product color	Black
Number of fans	5 fan(s)
Fan diameter	3.82" (9.7 cm)
Fan diameter 2	3.15" (8 cm)
LED indicators	HDD, LAN, SSD, System, USB
Built-in display	Yes
Display type	LCD
Cable lock slot	Yes
Cable lock slot type	Kensington
Type	NAS
Backup function	Yes
Backup features	Cloud, USB drive, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Noise level	26 dB
Third-party support	Yes
Snapshot	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Access Control List (ACL)	Yes
Reset button	Yes
On/off switch	Yes
Built-in FTP server	Yes
Browser supported	Apple Safari, Google Chrome, Internet Explorer, Mozilla Firefox
System log	Yes
Hot spare	Yes
S.M.A.R.T. support	Yes
Operating system installed	QuTS hero
Operating system version	h5.0.0
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported	CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11
Power supply location	Built-in
Power supply unit (PSU) capacity	550 W
Power consumption (typical)	97.492 W
Power consumption (sleep)	85.216 W
AC input voltage	100 - 240 V
Fan voltage	12 V
Width	14.6" (369.9 mm)
Depth	12.6" (319.8 mm)
Height	9.24" (234.6 mm)
Weight	24.9 lbs (11.3 kg)
Package weight	32.8 lbs (14.9 kg)
Cables included	AC, LAN (RJ-45)
Power cables quantity	1
Quick installation guide	Yes
Number of screws	48
Drive tray key included	Yes
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Trusted Execution Technology	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Harmonized System (HS) code	84714100
