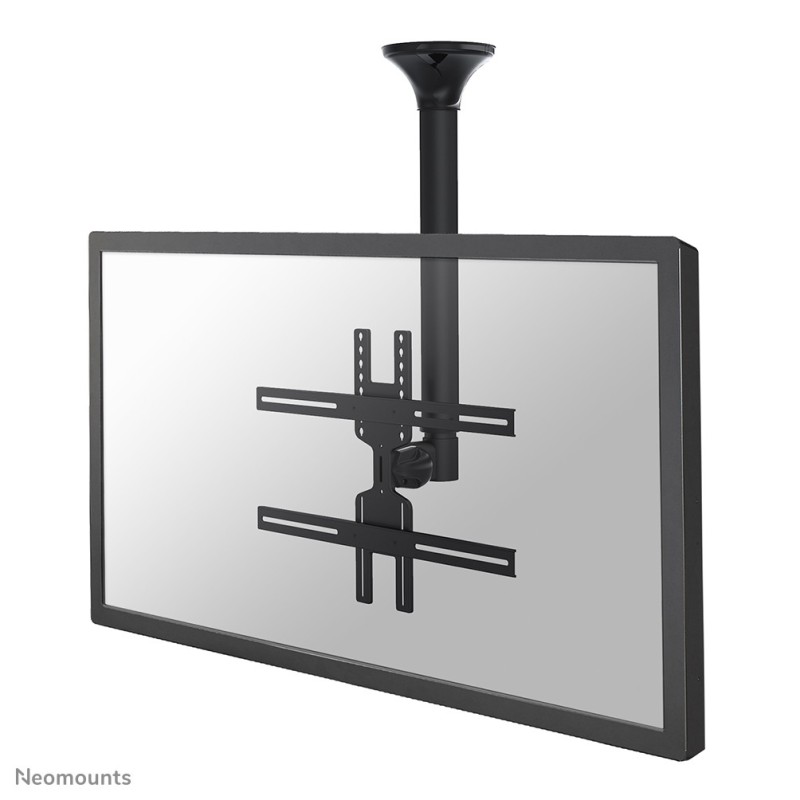

The Neomounts ceiling mount, model FPMA-C400BLACK is a tilt- and swivel ceiling mount for flat screens up to 60". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.
Neomounts versatile tilt (25°) and swivel (60°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 64 to 104 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.
Neomounts FPMA-C400BLACK has two pivot points and is suitable for screens up to 60" (152 cm). The weight capacity of this product is 35 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400mm.
All installation material is included with the product.
Neomounts FPMA-C400BLACK. Maximum weight capacity: 77.2 lbs (35 kg), Minimum screen size: 32", Maximum screen size: 60", Minimum VESA mount: 7.87 x 7.87" (200 x 200 mm), Maximum VESA mount: 23.6 x 15.7" (600 x 400 mm). Height adjustment range: 25.2 - 40.9" (640 - 1040 mm), Tilt angle range: 0 - 25°, Swivel angle: 60°. Product color: Black
Number of displays supported
1
Maximum screen size
60"
Mounting type
Ceiling
Maximum weight capacity
77.2 lbs (35 kg)
Minimum VESA mount
7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount
23.6 x 15.7" (600 x 400 mm)
Minimum screen size
32"
Panel mounting interface
200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,600 x 400,300 x 200,400 x 300,400 x 200
Height adjustment
Yes
Height adjustment type
Manual
Height adjustment range
25.2 - 40.9" (640 - 1040 mm)
Tilt angle range
0 - 25°
Swiveling
Yes
Swivel angle
60°
Adjustable
Yes
Tilt adjustment
Yes
Tilt angle
25°
Depth adjustment
3.15" (8 cm)
Product color
Black
Housing material
Steel
Depth
3.15" (80 mm)
Height
40.9" (1040 mm)
Weight
17 lbs (7.7 kg)
Package width
28.5" (725 mm)
Package depth
7.87" (200 mm)
Package height
8.66" (220 mm)
Package weight
10.6 lbs (4.8 kg)
Country of origin
Taiwan
Master (outer) case net weight
17.9 lbs (8.1 kg)
Harmonized System (HS) code
HS7326909890
Quantity per EUR-pallet
48 pc(s)
Quantity per master (outer) case
1 pc(s)
Master (outer) case width
28.5" (725 mm)
Master (outer) case length
7.87" (200 mm)
Master (outer) case height
8.66" (220 mm)
Master (outer) case weight
19.2 lbs (8.7 kg)
Quantity per master (outer) case
1 pc(s)
Package net weight
10.6 lbs (4.82 kg)
Product Details
VLMC4065
2025-12-01
New
Data sheet
Product color
Black
Weight
17 lbs (7.7 kg)
Harmonized System (HS) code
HS7326909890
Height
40.9" (1040 mm)
Country of origin
Taiwan
Depth
3.15" (80 mm)
Package weight
10.6 lbs (4.8 kg)
Maximum weight capacity
77.2 lbs (35 kg)
Height adjustment
Yes
Master (outer) case width
28.5" (725 mm)
Master (outer) case length
7.87" (200 mm)
Master (outer) case height
8.66" (220 mm)
Master (outer) case weight
19.2 lbs (8.7 kg)
Quantity per master (outer) case
1 pc(s)
1 pc(s)
Package width
28.5" (725 mm)
Package depth
7.87" (200 mm)
Package height
8.66" (220 mm)
Number of displays supported
1
Housing material
Steel
Maximum screen size
60"
Quantity per EUR-pallet
48 pc(s)
Mounting type
Ceiling
Tilt angle range
0 - 25°
Tilt adjustment
Yes
Minimum screen size
32"
Adjustable
Yes
Minimum VESA mount
7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount
23.6 x 15.7" (600 x 400 mm)
Panel mounting interface
200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,600 x 400,300 x 200,400 x 300,400 x 200
