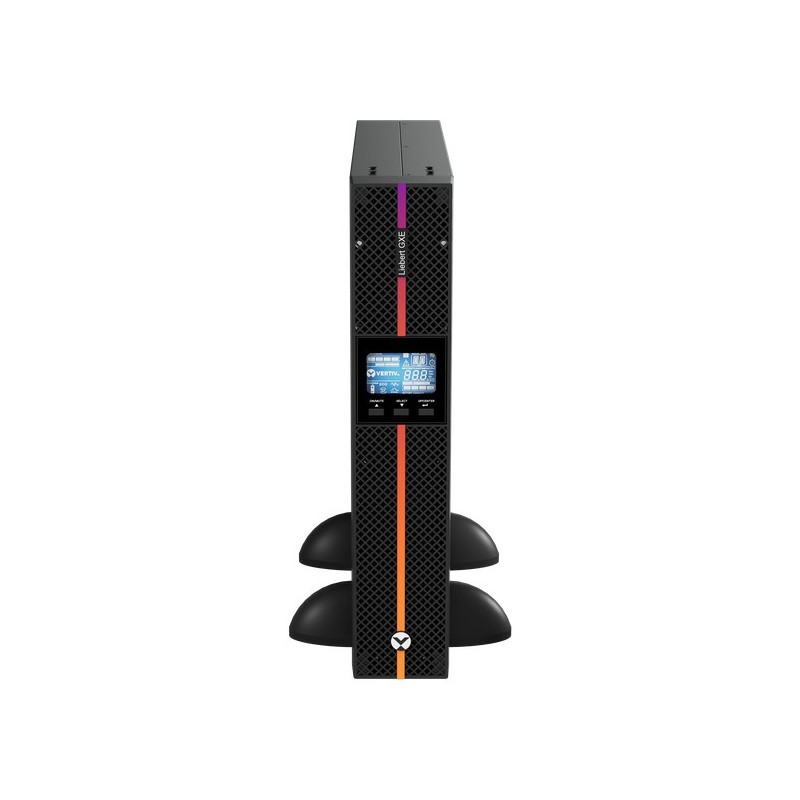

GXE3-2000IRT2UXL

Data sheet

Product color

Gray

Weight

50 lbs (22.7 kg)

Output power

1800 W

Input frequency

40 - 70 Hz

Battery technology

Sealed Lead Acid (VRLA)

Width

17.2" (438 mm)

Height

3.39" (86 mm)

Depth

16.9" (430 mm)

Display type

LCD

Package weight

54.7 lbs (24.8 kg)

Format

Rackmount/Tower

Package width

22" (560 mm)

Package depth

23.6" (600 mm)

Package height

9.25" (235 mm)

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 50 °C

Operating relative humidity (H-H)

5 - 90%

Cables included

Input power cable, Output power cable, USB cable

Battery recharge time

4 h

Rack capacity

2U

USB port

Yes

Sustainability compliance

Yes

AC outlets quantity

8 AC outlet(s)

Compliance certificates

CB, CE, RCM, REACH, RoHS, UKCA, WEEE

Number of batteries supported

4

Operating altitude

0 - 78740.2" (0 - 2000 m)

Quick installation guide

Yes

AC outlet types

C13 coupler

Noise level

53 dB

UPS topology

Double-conversion (Online)

Output power capacity

2 kVA

Waveform

Pure sine

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Surge energy rating

600 J

Typical backup time at full load

3.2 min

Typical backup time at half load

9 min

Battery life (max)

5 year(s)

Input operation voltage (min)

110 V

Input operation voltage (max)

290 V

Efficiency (ECO mode)

95%

Efficiency (On-line mode)

89%

Emergency Power Off (EPO) connector

Yes

EMI/RFI noise filtering

Yes

Specific References

UPC

767041034417

EAN13

0767041034417

MPN

GXE3-2000IRT2UXL
