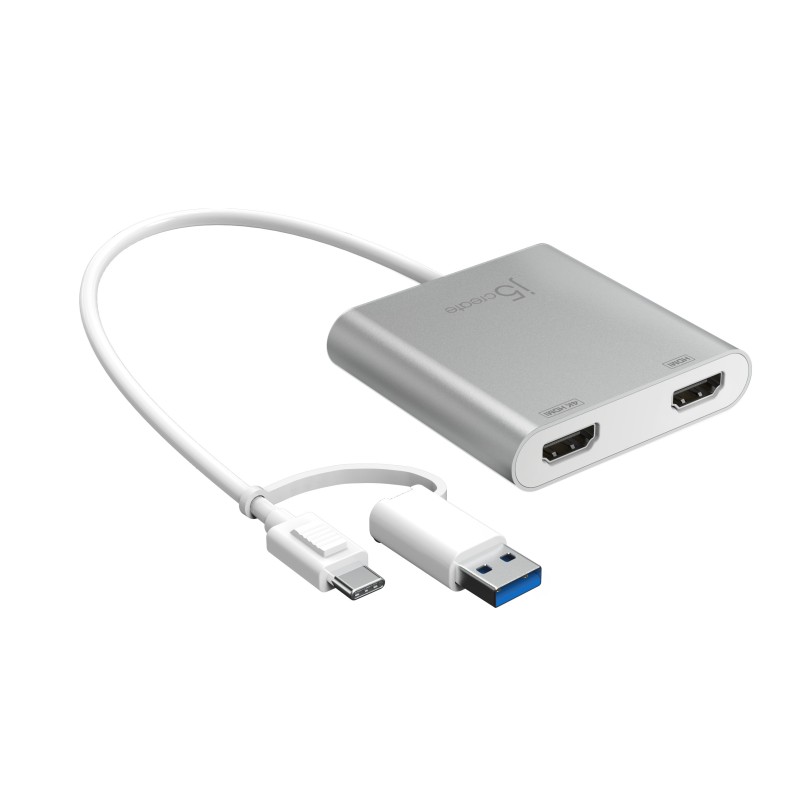

JCA365-N

Data sheet

Product color

Silver

Windows operating systems supported

Windows 10, Windows 7, Windows 8.1, Yes

HDMI ports quantity

2

Weight

2.96 oz (84 g)

Output voltage

5 V

Maximum resolution

3840 x 2160 pixels

Width

2.68" (68 mm)

Height

2.4" (61 mm)

Country of origin

Taiwan

Depth

0.591" (15 mm)

Package weight

4.04 oz (114.5 g)

Master (outer) case width

8.86" (225 mm)

Master (outer) case length

12.6" (321 mm)

Master (outer) case height

7.09" (180 mm)

Master (outer) case weight

6.42 lbs (2.91 kg)

Quantity per master (outer) case

20 pc(s)

Warranty period

2 year(s)

Package width

5.71" (145 mm)

Package depth

3.74" (95 mm)

Package height

0.984" (25 mm)

USB connector type

USB Type-A, USB Type-C

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-10 - 65 °C

Operating relative humidity (H-H)

0 - 85%

Storage relative humidity (H-H)

0 - 85%

Cables included

USB Type-C

USB version

3.2 Gen 1 (3.1 Gen 1)

Cabling type

USB-C/USB 3.0

Current

0.29 A

Number of displays supported

2

Manual

Yes

Housing material

Aluminum

Power consumption (max)

1.46 W

Master (outer) case GTIN (EAN/UPC)

24712795086410

Supported graphics resolutions

2048 x 1152, 3840 x 2160

Mac compatibility

Yes

USB cable length

7.87" (0.2 m)

Quick installation guide

Yes

Export Control Classification Number (ECCN)

EAR99

Minimum RAM

4 GB

Packaging content

1 x USB-C® to Dual HDMI™ Multi-Monitor Adapter (JCA365)
1 x Quick Installation Guide (QIG)

USB connector gender

Male

Integrated USB cable

Yes

USB connector form factor

Straight

Refresh rate at maximum resolution

30 Hz

DVI output

No

HDMI output

Yes

DisplayPort output

No

Minimum processor speed

1.8 GHz

Mirror display mode

Yes

Extended display mode

Yes

Minimum processor family

Core i3, Core i5, Core i7

Specific References

ISBN

978-1-23456-789-0

EAN13

4712795086416

MPN

JCA365-N
