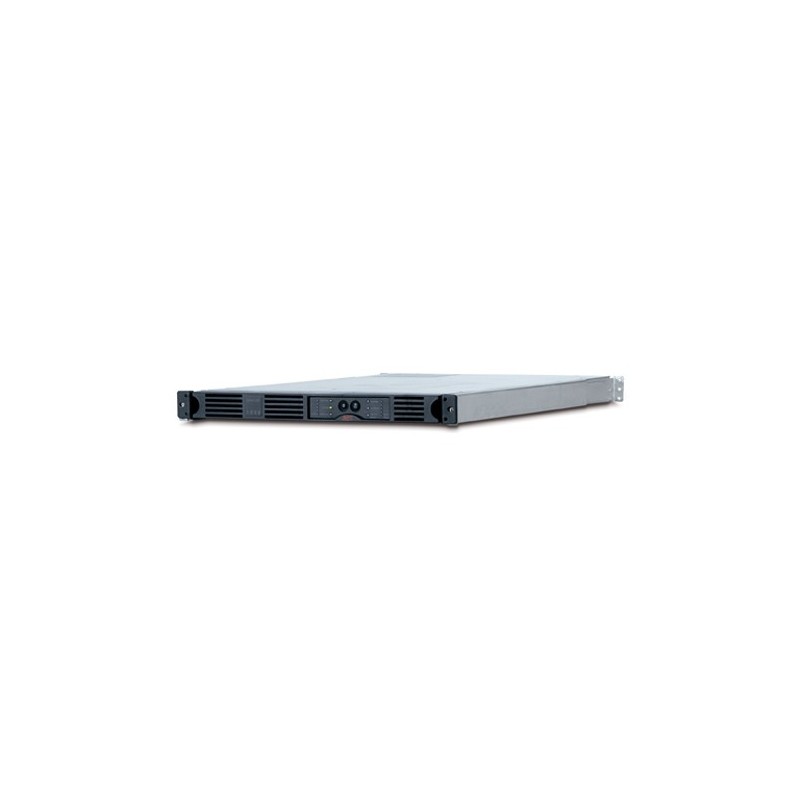

SUA1000RMI1U

Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Cold-start capable
Provides temporary battery power when the utility power is out.

Disconnected battery notification
Warns when a battery is not available to provide backup power.


Network manageable
Provides remote management of the UPS over the network.

Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

LED status indicators
Quickly understand unit and power status with visual indicators.

Serial Connectivity
Provides management of the UPS via a serial port.

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Disconnected battery notification
Warns when a battery is not available to provide backup power.

InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure® Manager.


User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

Predictive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.

Resettable circuit breakers
Enables a quick recovery from overload events.


Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Field-replaceable power distribution panel
Ensures compatibility with equipment that has different plug types.

APC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 640 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 216 VAh, Typical backup time at full load: 5.4 min. Form factor: Rackmount, Product color: Black, Rack capacity: 1U. Compliance certificates: RoHS, Certification: C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, PEP, EOLI

UPS topology	Line-Interactive
Output power capacity	1 kVA
Output power	640 W
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Surge energy rating	480 J
Noise level	55 dB
Surge protection	Yes
Audible alarm(s)	Yes
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	4 AC outlet(s)
Number of output IEC jumpers	2
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
SmartSlot	Yes
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	216 VAh
Typical backup time at full load	5.4 min
Typical backup time at half load	14.5 min
Battery life (max)	6 year(s)
Battery recharge time	2 h
Hot-swap battery	Yes
Automatic battery test	Yes
Form factor	Rackmount
Product color	Black
Rack capacity	1U
LED indicators	Battery replacement
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Compliance certificates	RoHS
Certification	C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, PEP, EOLI
Rack mount kit	Yes
Cables included	RS-232, USB cable
Manual	Yes
Width	17" (432 mm)
Depth	26" (660 mm)
Height	1.73" (44 mm)
Weight	48.1 lbs (21.8 kg)
Software CD	Yes
Package width	22" (559 mm)
Package depth	30.5" (775 mm)
Package height	7.52" (191 mm)
Package weight	56 lbs (25.4 kg)
Quantity per pallet	8 pc(s)
Harmonized System (HS) code	85078000
Interface	DB-9 RS-232, SmartSlot, USB
Input connection type	IEC-320 C14
Nominal output voltage	230 V
Nominal input voltage	230 V
