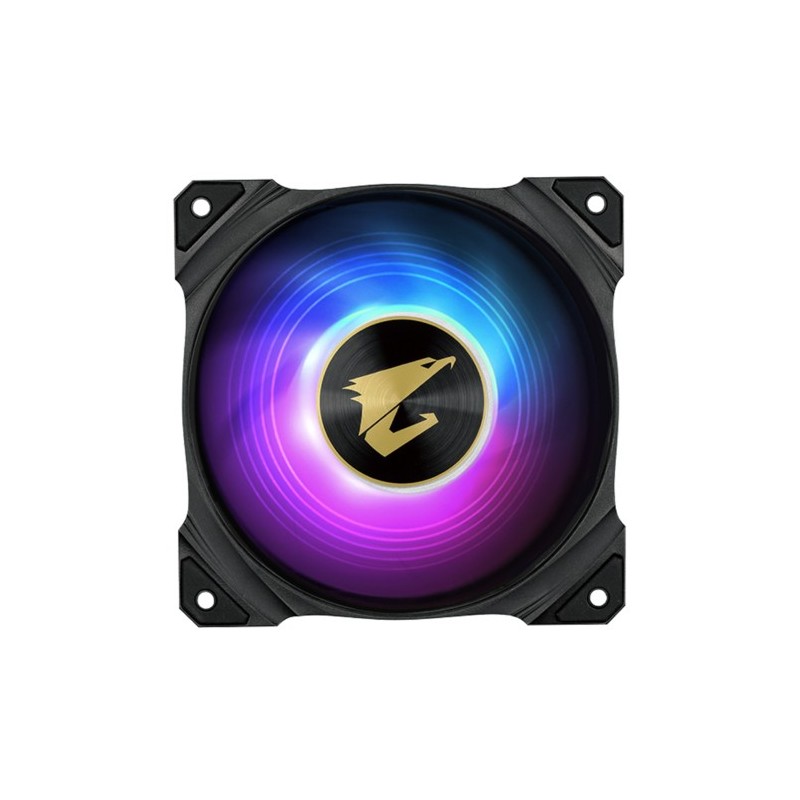

GP-AR120RFAN

SILENT & LONG LIFETIME

PRIMIUM SIX SLOT MOTOR
The six-slot motor makes the bearing run more stable and smooth. Compared with traditional four-slot motor less vibration, six-slot motor can maintain stable and quiet while running working.

3 PHASE POWER
The meticulous and frequent 3 phase power supply design efficiently push the bearing to make it evenly and stably rotate. Compared with traditional single phase power supply fan, 3 phase power effectively reduce the noise generated while low-speed operation. Further reduce vibration and energy consumption.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant in the sleeve bearing fan reduces the noise levels while extending the life of the fan by 2.1x (73,500hrs), matching the life of double ball bearing design while being quieter.

UNIQUE FAN BLADE DESIGN
The 120mm dynamic adjusting fan provides the silent operation. The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe on the fan surface, effectively enhancing the airflow by over tcurvehe traditional fans.

SYNCHRONIZE MORE AORUS FANS LIGHTING
Each AORUS fan provide ARGB male and female header.
User can connect more AORUS fans synchronize lighting pattern create cool and uniform lighting system.

GIGABYTE AORUS 120 ARGB. Type: Fan, Fan diameter: 4.72" (12 cm), Rotational speed (min): 800 RPM, Rotational speed (max): 1700 RPM, Bearing type: Sleeve bearing. Width: 4.72" (120 mm), Depth: 0.984" (25 mm), Height: 4.72" (120 mm). Product color: Black, White

Suitable location	Universal
Type	Fan
Fan diameter	4.72" (12 cm)
Rotational speed (min)	800 RPM
Rotational speed (max)	1700 RPM
Noise level (low speed)	7.3 dB
Noise level (high speed)	28.6 dB
Minimum airflow (imperial)	18.52 cfm
Maximum airflow	40.85 cfm
Bearing type	Sleeve bearing
Quantity per pack	1 pc(s)
Mean time between failures (MTBF)	73500 h
Product color	Black, White
Number of fans	1 fan(s)
Illumination LED	Yes
Illumination color	Blue, Green, Red
Fan connector	4-pin
Power supply	6 W
Rated voltage	12 V
Rated current	0.5 A
Width	4.72" (120 mm)
Depth	0.984" (25 mm)
Height	4.72" (120 mm)
Fan dimensions (W x D x H)	4.72 x 0.984 x 4.72" (120 x 25 x 120 mm)
Country of origin	China
Harmonized System (HS) code	84733080
