Reference: ST3450857SS
Brand: Asus
| Output power capacity | 8 kVA |
| Output power | 5600 W |
| Emergency Power Off (EPO) | Yes |
| AC outlet types | IEC 60320 |
| Typical backup time at full load | 7.5 min |
| Typical backup time at half load | 20.2 min |
| Replacement battery cartridge | SYBT5 |
| Product color | Black |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Weight | 392.4 lbs (178 kg) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 30526.44 |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Interface | DB-9 RS-232, Smart-Slot |
| Output connections | (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (6) IEC 320 C19 |
| Input connection type | Hard Wire 3 wire (1PH+N+G) |
| Dimensions (WxDxH) | 18.5 x 27.2 x 22.4" (470 x 690 x 570 mm) |
| Nominal output voltage | 230 V |
| Output voltage note | Configurable for 220: 230 or 240 nominal output voltage |
| I/O ports | Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619 |
Data sheet
Specific References
Reference: 432670-001, 405477-061, MMH9678_8GB, 403528
Reference: 963111
Brand: Digitus
Reference: 835517

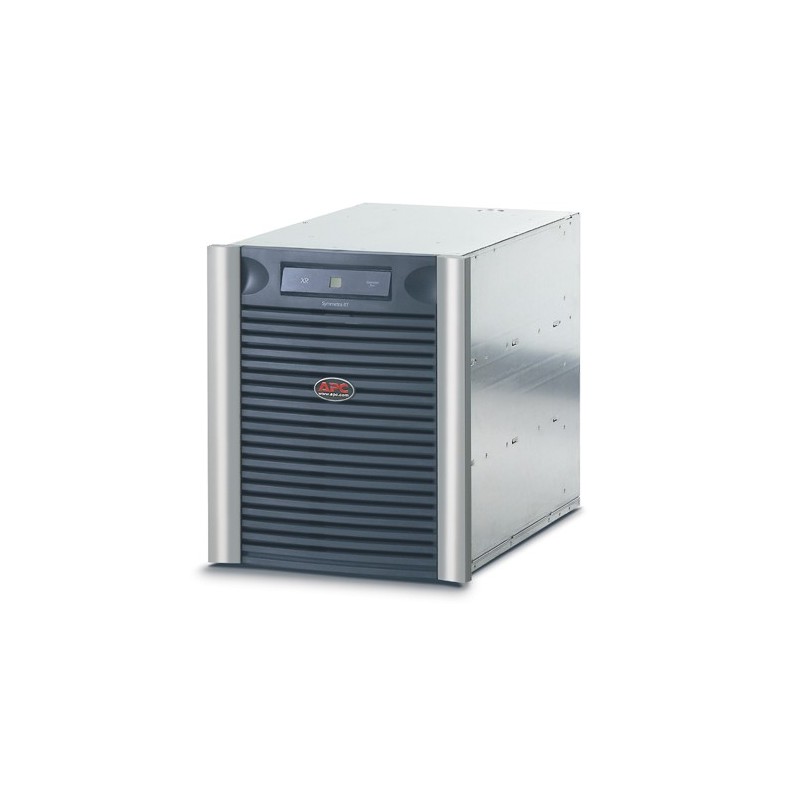

APC SYA8K8RMI, 8 kVA, 5600 W, IEC 60320, 7.5 min, 20.2 min, SYBT5
