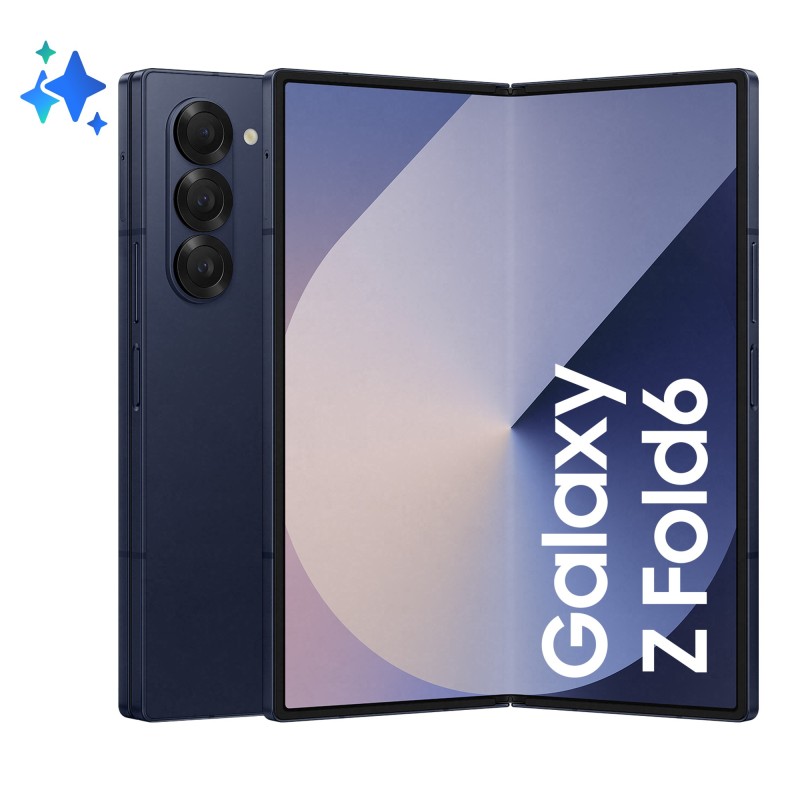

SM-F956BDBBEUE

Data sheet

Product color

Navy

Headphone connectivity

USB Type-C

Weight

8.43 oz (239 g)

Display diagonal

7.6"

Display resolution

2160 x 1856 pixels

Wi-Fi

Yes

Processor family

Qualcomm Snapdragon

Processor cores

8

Processor model

8 Gen 3

Processor boost frequency

3.39 GHz

Width

5.22" (132.6 mm)

Height

6.04" (153.5 mm)

Fingerprint reader

Yes

Depth

0.22" (5.6 mm)

USB connector type

USB Type-C

Display brightness

1500 cd/m²

Internal storage capacity

256 GB

Compatible memory cards

Not supported

Rear camera type

Triple camera

Rear camera resolution (numeric)

50 MP

Front camera resolution (numeric)

10 MP

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Bluetooth

Yes

Bluetooth version

5.3

Wi-Fi standards

Position location

Yes

GPS (satellite)

Yes

Accelerometer

Yes

Ambient light sensor

Yes

Gyroscope

Yes

Platform

Android

Operating system installed

Android 14

Cables included

USB Type-C

Battery recharge time

1.4 h

USB connectivity

Yes

USB version

3.2 Gen 1 (3.1 Gen 1)

Maximum refresh rate

120 Hz

Maximum frame rate

240 fps

Auto focus

Yes

Digital zoom

30x

Screen shape

Flat

Display number of colors

16 million colors

Pixel density

374 ppi

Virtual assistant

Samsung Bixby

MIMO

Yes

Wireless charging

Yes

Modulation

1024-QAM

International Protection (IP) code

IP48

Video formats supported

Audio formats supported

RAM capacity

12 GB

Optical zoom

3x

Brand specific technologies

Always-on display

Mobile network generation

5G

3G standards

UMTS, WCDMA

4G standard

LTE-TDD & LTE-FDD

Fast charging

Yes

Video resolutions

4320 x 7680 pixels

Resolution at capture speed

1280x720@30fps, 1920x1080@120fps, 1920x1080@240fps, 1920x1080@30fps, 1920x1080@60fps, 3840x2160@120fps, 3840x2160@30fps, 3840x2160@60fps, 7680x4320@30fps

USB On-The-Go support

Yes

Folded height

6.02" (15.3 cm)

User memory

229.2 GB

Repairability index

7.8

Proximity sensor

Yes

Face tracking

Yes

SIM card type

NanoSIM + eSIM

5G standard

Sub6 FDD, Sub6 SDL, Sub6 TDD

Wi-Fi Direct

Yes

Image stabilizer

Yes

Formfaktor

Clamshell

Display glass type

Gorilla Glass

Gorilla Glass version

Gorilla Glass Victus 2

Front camera type

Dual camera

Rear camera flash

Yes

Rear camera sensor size

1/1.56"

Second rear camera resolution (numeric)

12 MP

Third rear camera resolution (numeric)

10 MP

Rear camera aperture number

1.8

Rear camera pixel size

1 µm

Time lapse mode

Yes

SIM card capability

Dual SIM

GLONASS

Yes

BeiDou

Yes

Galileo

Yes

Quasi-Zenith Satellite System (QZSS)

Yes

SIM card ejector pin

Yes

Third rear camera pixel size

1 µm

Second rear camera field of view (FOV) angle

123°

Front camera pixel size

1.22 µm

Night mode

Yes

Geomagnetic sensor

Yes

Barometer

Yes

Folded width

2.68" (6.81 cm)

Folded depth

0.476" (1.21 cm)

Rear camera field of view (FOV) angle

85°

Panorama

Yes

Front camera aperture number

2.2

Front camera field of view (FOV) angle

85°

Hall sensor

Yes

Second rear camera aperture number

2.2

Display technology marketing name

Dynamic AMOLED 2X

Maximum display brightness (Outdoor)

2600 cd/m²

Second rear camera sensor size

1/3.2"

Third rear camera sensor size

1/3.94"

Rear camera resolution

6120 x 8160 pixels

Third rear camera aperture number

2.4

Second rear camera pixel size

1.12 µm

Front camera sensor size

1/3.24"

Flash type

LED

Image stabilizer type

Portrait mode

Yes

Second display

Yes

Third rear camera field of view (FOV) angle

36°

Slow motion mode

Yes

Second display diagonal

6.3"

Second display resolution

968 x 2376 pixels

Second front camera resolution (numeric)

4 MP

Second front camera aperture number

1.8

Second display brightness

1500 cd/m²

Second display pixel density

410 ppi

Second front camera pixel size

2 µm

Second front camera field of view (FOV) angle

85°

Battery capacity

4400 mAh

Near Field Communication (NFC)

Yes

Specific References

ISBN

978-1-23456-789-0

EAN13

8806095616513

MPN

SM-F956BDBBEUE
