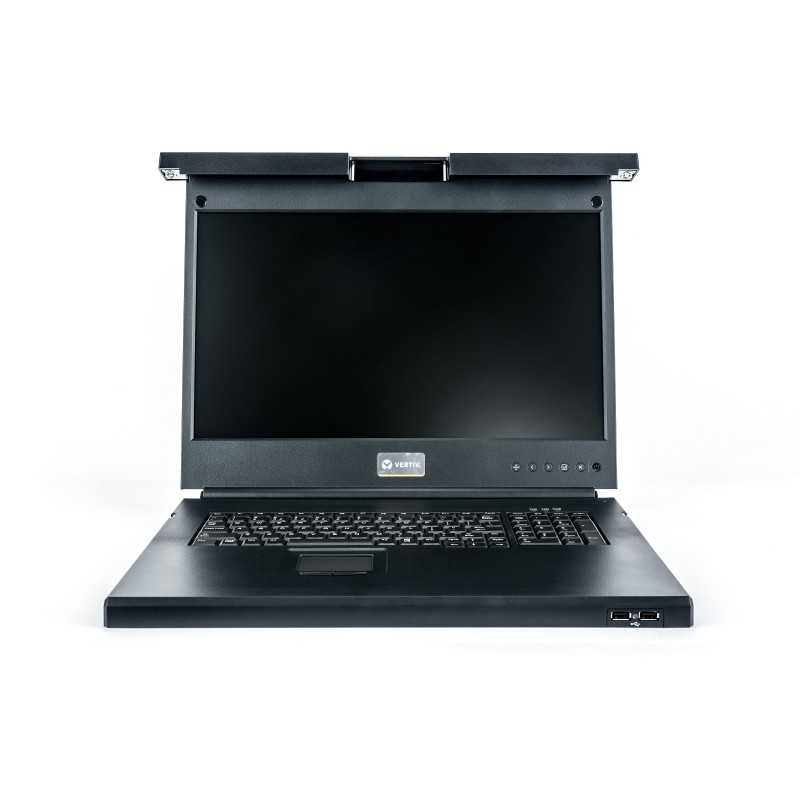

LRA185KMM-201
Vertiv Avocent LRA185KMM-201, 19", 1366 x 768 pixels, TFT, 250 cd/m², 1000:1, 16.1" (41 cm)
Description
Avocent LCD Local Rack Access Console
The Avocent LRA Console family provides the simplicity, efficiency and ease of use to make it the perfect in data center access point. The LRA line enables ease of access to multiple servers making software upgrades, troubleshooting and system monitoring convenient and less time-consuming.
- Widescreen: 18.5” LED LCD panel with a 16:9 aspect ratio. Supports resolutions up to 1600 x 1200 at both full screen and aspect ratio.
- Form Factor: Easy access in the 1U space. Detent lock engages when stowed in the rack. Room for KVM installation in the same 1U space
- KVM Compatibility: LRA Consoles are compatible with all Avocent data center KVM switches
- User Interface: On-Screen menu has an intuitive design and can be accessed in 7 languages.
- Data Center Local Access: Complete entry point to local servers when needed.
- Ease of use: Full desktop style keyboard with number pad, touch pad and 2 USB 2.0 pass through ports.
Vertiv Avocent LRA185KMM-201. Display diagonal: 19", Display resolution: 1366 x 768 pixels, Display: TFT. Interface: USB, Keyboard port type: USB, Mouse port type: USB. Keyboard language: UK English, Keyboard layout: QWERTY. Certification: UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC
FCC Class A. Power supply type: AC, Power consumption (typical): 17 W, Power consumption (standby): 0.5 W
The Avocent LRA Console family provides the simplicity, efficiency and ease of use to make it the perfect in data center access point. The LRA line enables ease of access to multiple servers making software upgrades, troubleshooting and system monitoring convenient and less time-consuming.
- Widescreen: 18.5” LED LCD panel with a 16:9 aspect ratio. Supports resolutions up to 1600 x 1200 at both full screen and aspect ratio.
- Form Factor: Easy access in the 1U space. Detent lock engages when stowed in the rack. Room for KVM installation in the same 1U space
- KVM Compatibility: LRA Consoles are compatible with all Avocent data center KVM switches
- User Interface: On-Screen menu has an intuitive design and can be accessed in 7 languages.
- Data Center Local Access: Complete entry point to local servers when needed.
- Ease of use: Full desktop style keyboard with number pad, touch pad and 2 USB 2.0 pass through ports.
Vertiv Avocent LRA185KMM-201. Display diagonal: 19", Display resolution: 1366 x 768 pixels, Display: TFT. Interface: USB, Keyboard port type: USB, Mouse port type: USB. Keyboard language: UK English, Keyboard layout: QWERTY. Certification: UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC
FCC Class A. Power supply type: AC, Power consumption (typical): 17 W, Power consumption (standby): 0.5 W
| Display diagonal | 19" |
| Display resolution | 1366 x 768 pixels |
| Display | TFT |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewable size, horizontal | 16.1" (41 cm) |
| Viewable size, vertical | 9.06" (23 cm) |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Viewable size diagonal | 18.5" (47 cm) |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 11.8 x 11.8" (300 x 300 mm) |
| Aspect ratio | 1:1, 16:9 |
| Display type | TFT |
| Number of OSD languages | 7 |
| Material | Plastic, Steel |
| Plug and Play | Yes |
| Height (in Rack Units) | 1 |
| Size (imperial) | 19" |
| Product color | Black |
| Operating relative humidity (H-H) | 10 - 80% |
| Built-in KVM switch | No |
| Maximum resolution | 1600 x 1200 pixels |
| Operating temperature (T-T) | 0 - 50 °F |
| Relative humidity | 10 - 80% |
| Rack mounting | Yes |
| Display connection | Yes |
| Number of computers controlled | 1 |
| On/off switch | Yes |
| Buttons | Auto, Menu |
| LED indicators | Yes |
| Rack capacity | 1U |
| Interface | USB |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 2 |
| Keyboard number of keys | 103 |
| Built-in touchpad | Yes |
| Keyboard language | UK English |
| Keyboard layout | QWERTY |
| Certification | UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC\nFCC Class A |
| Power supply type | AC |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 0.5 W |
| AC adapter input voltage | 90 - 264 V |
| AC adapter output voltage | 12 V |
| AC adapter frequency | 50 - 60 Hz |
| Output current | 3.3 A |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Width | 19" (482.6 mm) |
| Height | 1.75" (44.5 mm) |
| Depth | 21" (533.4 mm) |
| Weight | 22 lbs (9.98 kg) |
| Mounting depth (min) | 24.1" (61.3 cm) |
| Mounting depth (max) | 27.8" (70.6 cm) |
| Package weight | 34 lbs (15.4 kg) |
| Package dimensions (WxDxH) | 29.5 x 23 x 8.5" (749.3 x 584.2 x 216 mm) |
| Cables included | USB, VGA |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Package type | Box |
Product Details
1 Item
New
Data sheet
- Product color
- Black
- Interface
- USB
- Package type
- Box
- Weight
- 22 lbs (9.98 kg)
- Power supply type
- AC
- Display diagonal
- 19"
- Display resolution
- 1366 x 768 pixels
- Maximum resolution
- 1600 x 1200 pixels
- Plug and Play
- Yes
- Width
- 19" (482.6 mm)
- Height
- 1.75" (44.5 mm)
- Keyboard layout
- QWERTY
- Keyboard language
- UK English
- Certification
- UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC\nFCC Class A
- Depth
- 21" (533.4 mm)
- Output current
- 3.3 A
- Display type
- TFT
- Package weight
- 34 lbs (15.4 kg)
- Material
- Plastic, Steel
- LED indicators
- Yes
- On/off switch
- Yes
- Operating temperature (T-T)
- 0 - 50 °F
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 10 - 80%
- AC adapter included
- Yes
- Display brightness
- 250 cd/m²
- Cables included
- USB, VGA
- Rack capacity
- 1U
- Keyboard number of keys
- 103
- Size (imperial)
- 19"
- Display
- TFT
- Power consumption (standby)
- 0.5 W
- Power consumption (typical)
- 17 W
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- VGA
- Package dimensions (WxDxH)
- 29.5 x 23 x 8.5" (749.3 x 584.2 x 216 mm)
- Native aspect ratio
- 1:1, 16:9
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 170°
- Viewing angle, vertical
- 160°
- Pixel pitch
- 11.8 x 11.8" (300 x 300 mm)
- Viewable size, horizontal
- 16.1" (41 cm)
- Viewable size, vertical
- 9.06" (23 cm)
- On Screen Display (OSD)
- Yes
- Viewable size diagonal
- 18.5" (47 cm)
- Mounting brackets included
- Yes
- Quick installation guide
- Yes
- Number of OSD languages
- 7
- Rack mounting
- Yes
- Number of computers controlled
- 1
- Mounting depth (min)
- 24.1" (61.3 cm)
- Mounting depth (max)
- 27.8" (70.6 cm)
- Rack mount kit
- Yes
- Display connection
- Yes
- AC adapter output voltage
- 12 V
- Built-in KVM switch
- No
- Built-in touchpad
- Yes
- AC adapter input voltage
- 90 - 264 V
- AC adapter frequency
- 50 - 60 Hz
- USB 2.0 Type-A ports quantity
- 2
- Relative humidity
- 10 - 80%
- Height (in Rack Units)
- 1
- Buttons
- Auto, Menu
Specific References
- UPC
- 636430076201
- EAN13
- 0636430076201
- MPN
- LRA185KMM-201
