Reference: ST3450857SS
Brand: Seagate
ST3450857SS _ RFB
Seagate Cheetah 450GB 3.5, 450 GB, 15000 RPM, 16 MB, 3.5", SAS
CHF56.2
tax incl.
CHF52.0
tax excl.
In stock
CHF37.1
tax incl.
CHF34.3
tax excl.
In stock
VM51616H-AT-G
ATEN VM51616H, Scaling matrix switcher, 6.75 Gbit/s, 1920 x 1080 pixels, Black, Metal, 2U
Description

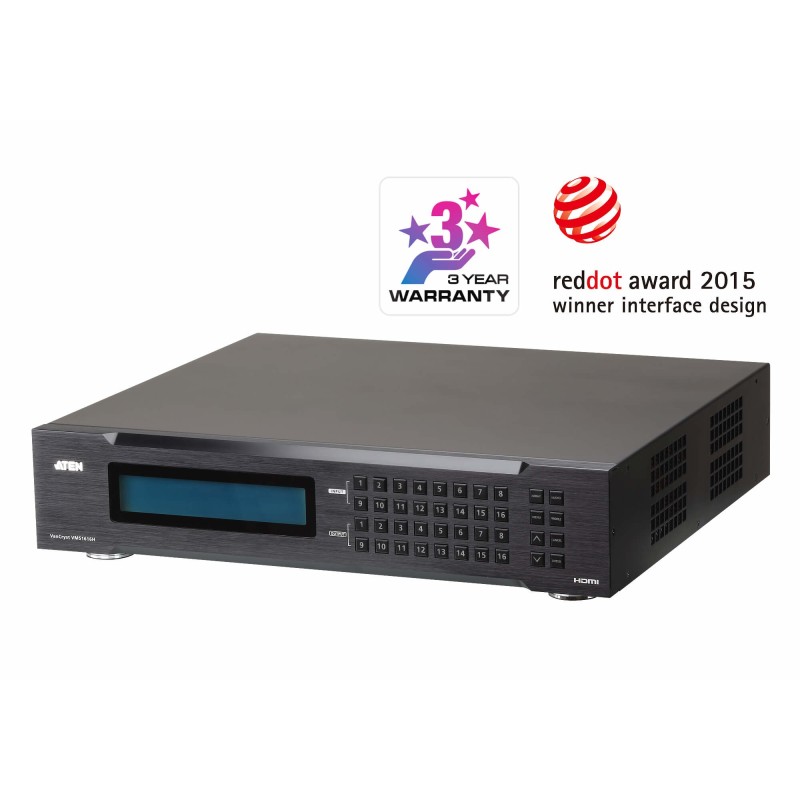

The VM51616H is a 16 x 16 HDMI Matrix Switch that offers an easy and affordable way to route any of 16 HDMI video and audio sources to 16 HDMI displays, with a quick view of all port connections via the front panel LCD or local HDMI output for multiple source preview.
1x VM51616H 16 x 16 HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x Rack Mounting Kit
1x User Instructions
ATEN VM51616H. Product type: Scaling matrix switcher, Data transfer rate: 6.75 Gbit/s, Maximum resolution: 1920 x 1080 pixels. Housing color: Black, Housing material: Metal, Rack capacity: 2U. Power consumption (max): 124.5 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Quantity per master (outer) case: 1 pc(s), Master (outer) case weight: 21.6 lbs (9.79 kg), Master (outer) case length: 22.6" (575 mm). Width: 15" (381.8 mm), Depth: 17" (432.4 mm), Height: 3.46" (88 mm)
1x VM51616H 16 x 16 HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x Rack Mounting Kit
1x User Instructions
ATEN VM51616H. Product type: Scaling matrix switcher, Data transfer rate: 6.75 Gbit/s, Maximum resolution: 1920 x 1080 pixels. Housing color: Black, Housing material: Metal, Rack capacity: 2U. Power consumption (max): 124.5 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Quantity per master (outer) case: 1 pc(s), Master (outer) case weight: 21.6 lbs (9.79 kg), Master (outer) case length: 22.6" (575 mm). Width: 15" (381.8 mm), Depth: 17" (432.4 mm), Height: 3.46" (88 mm)
| Product type | Scaling matrix switcher |
| Data transfer rate | 6.75 Gbit/s |
| Maximum resolution | 1920 x 1080 pixels |
| HDCP | Yes |
| HDCP version | 1.4 |
| 3D | Yes |
| Extended display identification data (EDID) | Yes |
| EDID management | Yes |
| Housing color | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Rack capacity | 2U |
| LED indicators | Yes |
| HDMI input ports quantity | 16 |
| HDMI output ports quantity | 16 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| Power consumption (max) | 124.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Quantity per master (outer) case | 1 pc(s) |
| Master (outer) case weight | 21.6 lbs (9.79 kg) |
| Master (outer) case length | 22.6" (575 mm) |
| Master (outer) case width | 19.9" (505 mm) |
| Master (outer) case height | 6.89" (175 mm) |
| Master (outer) case net weight | 17.8 lbs (8.09 kg) |
| Harmonized System (HS) code | 85299097 |
| Compliance certificates | RoHS |
| Width | 15" (381.8 mm) |
| Depth | 17" (432.4 mm) |
| Height | 3.46" (88 mm) |
| Weight | 17.8 lbs (8.09 kg) |
| Package width | 19.9" (505 mm) |
| Package depth | 22.6" (575 mm) |
| Package height | 6.89" (175 mm) |
| Package weight | 21.6 lbs (9.79 kg) |
| Cables included | AC |
| Rack mount kit | Yes |
Product Details
2025-12-29
New
Data sheet
- Weight
- 17.8 lbs (8.09 kg)
- Harmonized System (HS) code
- 85299097
- AC input frequency
- 50 - 60 Hz
- Maximum resolution
- 1920 x 1080 pixels
- Width
- 15" (381.8 mm)
- Height
- 3.46" (88 mm)
- Data transfer rate
- 6.75 Gbit/s
- AC input voltage
- 100 - 240 V
- Depth
- 17" (432.4 mm)
- Package weight
- 21.6 lbs (9.79 kg)
- Master (outer) case width
- 19.9" (505 mm)
- Master (outer) case length
- 22.6" (575 mm)
- Master (outer) case height
- 6.89" (175 mm)
- Master (outer) case weight
- 21.6 lbs (9.79 kg)
- Quantity per master (outer) case
- 1 pc(s)
- Package width
- 19.9" (505 mm)
- Package depth
- 22.6" (575 mm)
- Package height
- 6.89" (175 mm)
- Product type
- Scaling matrix switcher
- LED indicators
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
- Cables included
- AC
- 3D
- Yes
- Input current
- 1 A
- Rack capacity
- 2U
- Housing material
- Metal
- Compliance certificates
- RoHS
- HDCP
- Yes
- Power consumption (max)
- 124.5 W
- Master (outer) case net weight
- 17.8 lbs (8.09 kg)
- Housing color
- Black
- HDCP version
- 1.4
- Extended display identification data (EDID)
- Yes
- HDMI input ports quantity
- 16
- HDMI output ports quantity
- 16
- Rack mounting
- Yes
- Rack mount kit
- Yes
- RJ-45 input ports
- 1
- RS-232 ports
- 1
- EDID management
- Yes
Specific References
- ISBN
- 978-1-23456-789-0
- EAN13
- 4719264646072
- MPN
- VM51616H-AT-G
ATEN VM51616H, Scaling matrix switcher, 6.75 Gbit/s, 1920 x 1080 pixels, Black, Metal, 2U
