OL1500HV-AT-G

Name: OL1500HV-AT-G
Brand: Aten
SKU: OL1500HV-AT-G
Price: 723 CHF
Availability: BackOrder

Reference OL1500HV-AT-G

Brand Aten

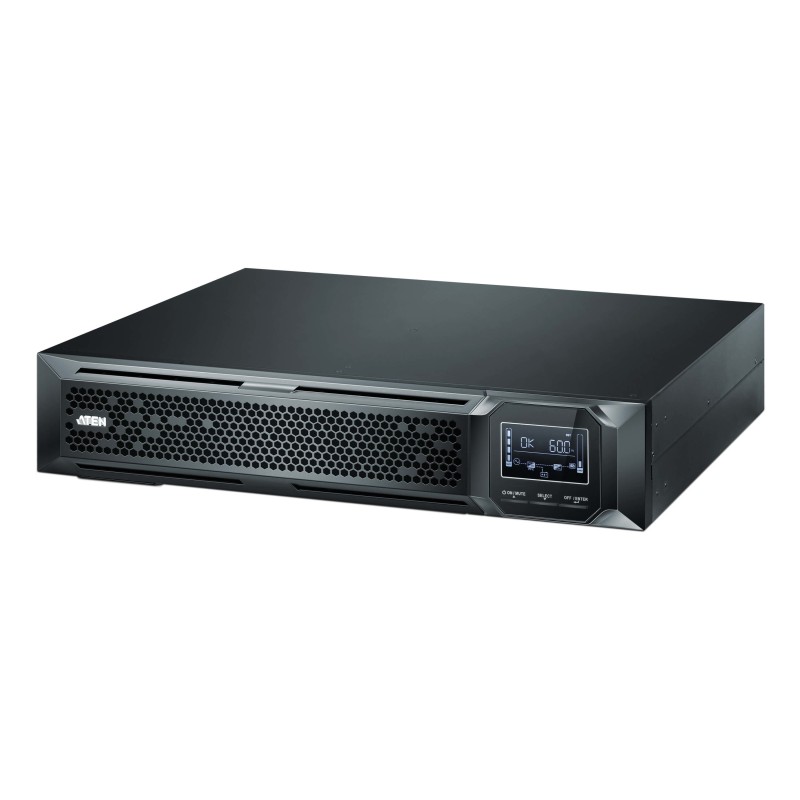

ATEN OL1500HV-AT-G, Double-conversion (Online), 1.5 kVA, 1500 W, Sine, 110 V, 300 V

CHF723.0

Tax included

CHF668.8 Tax excluded

Delayed delivery

Quantity

Will be ordered for you

Description
Product Details

Description

The ATEN Professional Online UPS is an exceptional and innovative electrical apparatus that provides emergency power to a load when the input power source, or the mains, fails. The basic technology of an online UPS is the same as in a standby or line-interactive UPS, however, the ATEN Professional Online UPS provides a much greater current of AC-to-DC battery-charger/rectifier where the rectifier and inverter are designed to run continuously with improved cooling systems.
1x Online UPS
1x Rack Mounting Kit
1x Rail Slide Kit
1x RS-232 Cable
1x USB Type A to B Cable
4x Power Cables
1x Tower Stand set
1x User Instructions

ATEN OL1500HV-AT-G. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 36 V. Form factor: Rackmount/Tower, Product color: Black, Rack capacity: 2U. Certification: CE RoHS

UPS topology	Double-conversion (Online)
Output power capacity	1.5 kVA
Output power	1500 W
Waveform	Sine
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Response time	4 ms
Efficiency	88%
Efficiency (ECO mode)	96%
Crest factor	3:1
ECO mode	Yes
Noise level	50 dB
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	1
USB port type	USB Type-B
Serial interface	Yes
Serial interface type	RS-232
Serial ports quantity	1
RS-232 ports	1
Ethernet LAN (RJ-45) ports	2
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	9 Ah
Battery voltage	36 V
Number of battery cells	3
Typical backup time at full load	2.96 min
Typical backup time at half load	10.3 min
Battery recharge time	3 h
Charging current	2 A
Cold start	Yes
Form factor	Rackmount/Tower
Product color	Black
Rack capacity	2U
Cooling type	Active
Built-in fan	Yes
LED indicators	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	10 - 95%
Certification	CE RoHS
Cables included	Output power cable, Power load cable, RS-232, USB cable
Manual	Yes
Width	3.46" (88 mm)
Depth	17.2" (438 mm)
Height	16.1" (410 mm)
Weight	35.1 lbs (15.9 kg)
Package width	3.46" (88 mm)
Package depth	17.2" (438 mm)
Package height	16.1" (410 mm)
Package weight	46.1 lbs (20.9 kg)
Master (outer) case net weight	35.1 lbs (15.9 kg)
Harmonized System (HS) code	85078000
Master (outer) case width	9.45" (240 mm)
Master (outer) case length	19.7" (500 mm)
Master (outer) case height	23.6" (600 mm)
Master (outer) case weight	46.1 lbs (20.9 kg)
Quantity per master (outer) case	1 pc(s)

Product Details

Reference OL1500HV-AT-G

Availability date: 2025-12-22

Condition New

Data sheet

Product color: Black
USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Weight: 35.1 lbs (15.9 kg)
Harmonized System (HS) code: 85078000
Output power: 1500 W
Input frequency: 40 - 70 Hz
Serial ports quantity: 1
Battery technology: Sealed Lead Acid (VRLA)
Number of battery cells: 3
Battery capacity: 9 Ah
Width: 3.46" (88 mm)
Height: 410 mm
Certification: CE
RoHS
Depth: 17.2" (438 mm)
Battery voltage: 36 V
Package weight: 46.1 lbs (20.9 kg)
Format: Rackmount/Tower
Master (outer) case width: 9.45" (240 mm)
Master (outer) case length: 19.7" (500 mm)
Master (outer) case height: 23.6" (600 mm)
Master (outer) case weight: 46.1 lbs (20.9 kg)
Quantity per master (outer) case: 1 pc(s)
Package width: 3.46" (88 mm)
Package depth: 17.2" (438 mm)
Package height: 16.1" (410 mm)
LED indicators: Yes
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 20 - 90%
Storage relative humidity (H-H): 10 - 95%
Cables included: Output power cable, Power load cable, RS-232, USB cable
Efficiency: 88%
Battery recharge time: 3 h
Cooling type: Active
Rack capacity: 2U
USB port: Yes
Manual: Yes
AC outlets quantity: 8 AC outlet(s)
Response time: 4 ms
Master (outer) case net weight: 35.1 lbs (15.9 kg)
AC outlet types: C13 coupler
Built-in fan: Yes
Power plug: C14 coupler
Noise level: 50 dB
UPS topology: Double-conversion (Online)
Output power capacity: 1.5 kVA
Waveform: Sine
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Typical backup time at full load: 2.96 min
Typical backup time at half load: 10.3 min
USB port type: USB Type-B
RS-232 ports: 1
Serial interface type: RS-232
Input operation voltage (min): 110 V
Input operation voltage (max): 300 V
Efficiency (ECO mode): 96%
Crest factor: 3:1
ECO mode: Yes
Serial interface: Yes
Charging current: 2 A
Cold start: Yes

Specific References

ISBN: 978-1-23456-789-0
EAN13: 4719264647970
MPN: OL1500HV-AT-G
