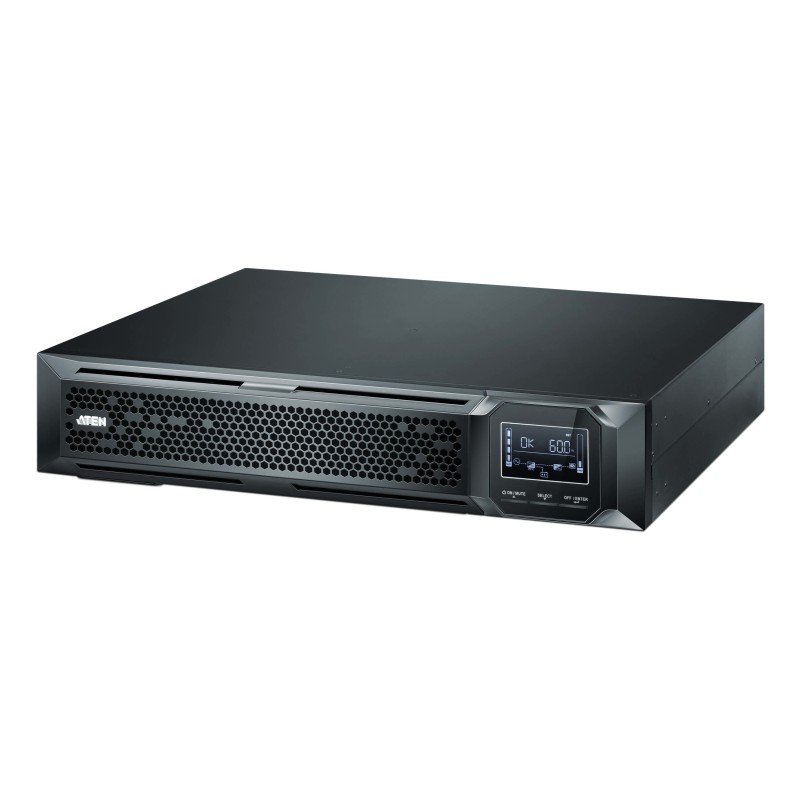

OL1000HV-AT-G

Data sheet

Product color

Black

USB 2.0 ports quantity

1

Ethernet LAN (RJ-45) ports

2

Weight

29.5 lbs (13.4 kg)

Harmonized System (HS) code

85078000

Output power

1000 W

Input frequency

40 - 70 Hz

Serial ports quantity

1

Battery technology

Sealed Lead Acid (VRLA)

Number of battery cells

2

Battery capacity

9 Ah

Width

3.46" (88 mm)

Height

410 mm

Certification

CE
RoHS

Depth

17.2" (438 mm)

Battery voltage

12 V

Package weight

40.8 lbs (18.5 kg)

Format

Rackmount/Tower

Master (outer) case width

9.45" (240 mm)

Master (outer) case length

19.7" (500 mm)

Master (outer) case height

23.6" (600 mm)

Master (outer) case weight

40.8 lbs (18.5 kg)

Quantity per master (outer) case

1 pc(s)

Package width

3.46" (88 mm)

Package depth

17.2" (438 mm)

Package height

16.1" (410 mm)

LED indicators

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 50 °C

Operating relative humidity (H-H)

20 - 90%

Storage relative humidity (H-H)

10 - 95%

Cables included

Output power cable, Power load cable, RS-232, USB cable

Efficiency

88%

Battery recharge time

3 h

Cooling type

Active

Rack capacity

2U

USB port

Yes

Manual

Yes

AC outlets quantity

8 AC outlet(s)

Response time

4 ms

Master (outer) case net weight

29.5 lbs (13.4 kg)

AC outlet types

C13 coupler

Built-in fan

Yes

Power plug

C14 coupler

Noise level

50 dB

UPS topology

Double-conversion (Online)

Output power capacity

1 kVA

Waveform

Sine

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Typical backup time at full load

2.95 min

Typical backup time at half load

10.1 min

USB port type

USB Type-B

RS-232 ports

1

Serial interface type

RS-232

Input operation voltage (min)

110 V

Input operation voltage (max)

300 V

Efficiency (ECO mode)

96%

Crest factor

3:1

ECO mode

Yes

Serial interface

Yes

Charging current

2 A

Cold start

Yes

Specific References

ISBN

978-1-23456-789-0

EAN13

4719264647963

MPN

OL1000HV-AT-G
