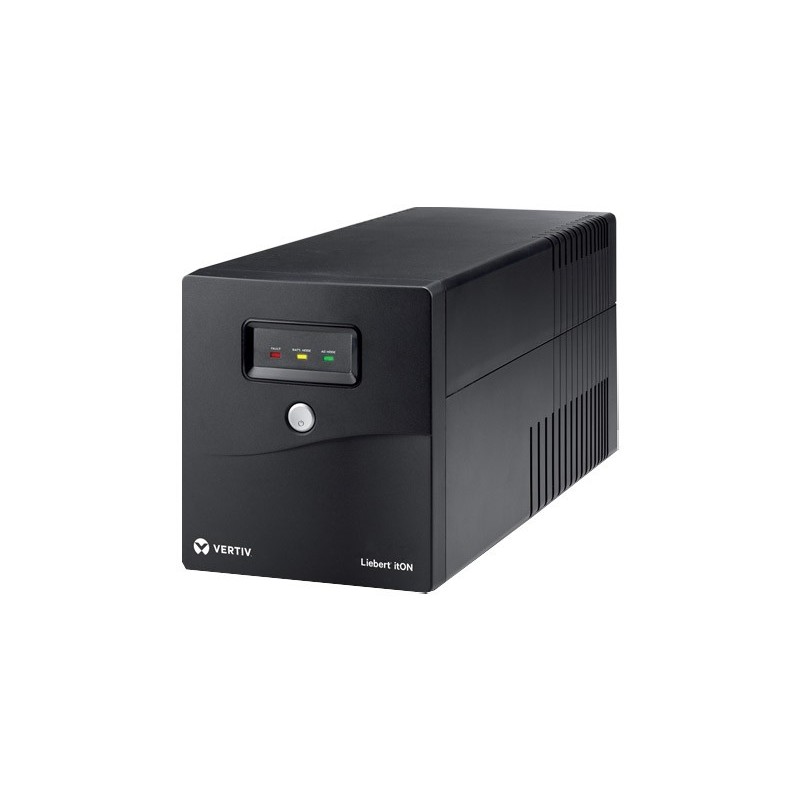

LI32151CT20

Data sheet

Product color

Black

USB 2.0 ports quantity

1

Weight

25.4 lbs (11.5 kg)

Harmonized System (HS) code

85078000

Output power

1200 W

Input frequency

50/60 Hz

Output voltage

230 V

Serial ports quantity

1

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

9 Ah

Width

5.75" (146 mm)

Height

8.07" (205 mm)

Certification

CE

Depth

15.4" (391 mm)

Battery voltage

12 V

Package weight

27.6 lbs (12.5 kg)

Format

Tower

Package width

9.25" (235 mm)

Package depth

19.5" (495 mm)

Package height

11.7" (297 mm)

LED indicators

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 5 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 90%

Battery type

VRLA

Battery recharge time

6 h

Dimensions (WxDxH)

5.75 x 15.4 x 8.07" (146 x 391 x 205 mm)

USB port

Yes

AC outlets quantity

6 AC outlet(s)

Overload protection

Yes

Compliance certificates

RoHS

Package dimensions (WxDxH)

9.25 x 19.5 x 11.7" (235 x 495 x 297 mm)

Number of batteries supported

2

Response time

6 ms

Output frequency

50/60 Hz

Input connection type

IEC320 C14

Operating altitude

0 - 59055.1" (0 - 1500 m)

Nominal output voltage

230 V

International Protection (IP) code

IP20

AC outlet types

C13 coupler, Type F

Nominal input voltage

230 V

Safety

IEC/EN/AS 62040-1-1

Power plug

C14 coupler

Power factor

0.6

UPS topology

Line-Interactive

Output power capacity

2 kVA

Waveform

Stepwise

Audible alarm(s)

Yes

Typical backup time at half load

3 min

Input operation voltage (min)

170 V

Input operation voltage (max)

280 V

Number of input phases

1

Number of output phases

1

Output power factor

0.6

Number of type F outputs

3

Non-operating relative humidity (non-condensing)

0 - 90%

Specific References

ISBN

978-1-23456-789-0

UPC

813829015878

EAN13

0813829015878

MPN

LI32151CT20
