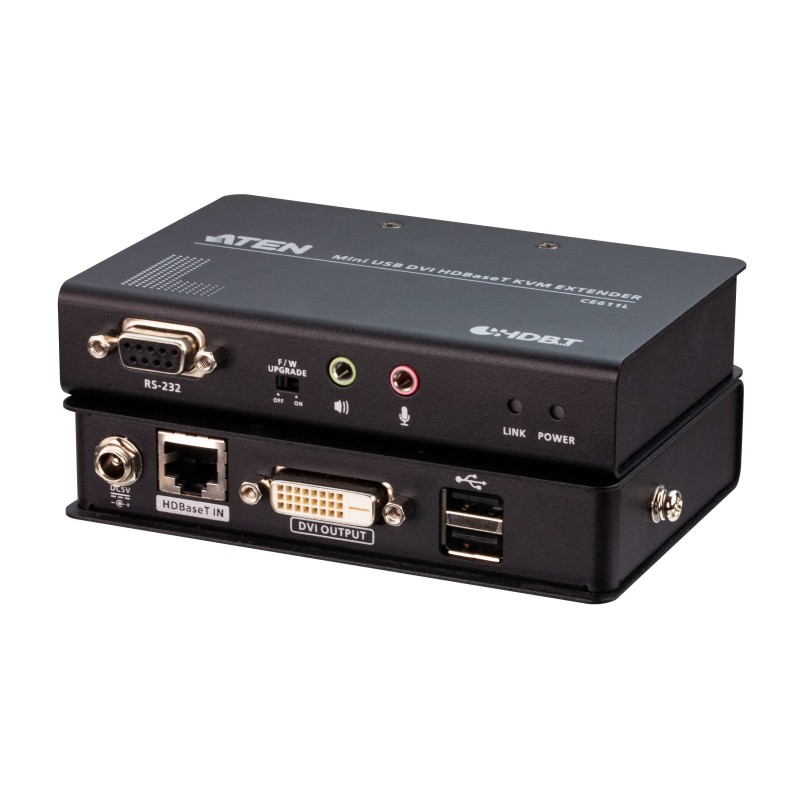

CE611-AT-G

Data sheet

Type

Transmitter & receiver

Product color

Black

Connectivity technology

Wired

USB 2.0 ports quantity

2

Weight

2.31 lbs (1.05 kg)

Harmonized System (HS) code

84733080

Certification

RoHS

Package weight

2.6 lbs (1.18 kg)

Material

Metal

Master (outer) case width

11.5" (292 mm)

Master (outer) case length

20.4" (517 mm)

Master (outer) case height

7.64" (194 mm)

Master (outer) case weight

13.9 lbs (6.32 kg)

Quantity per master (outer) case

5 pc(s)

Package width

3.94" (100 mm)

Package depth

11.1" (283 mm)

Package height

6.81" (173 mm)

LED indicators

Yes

Maximum digital resolution

1920 x 1200 pixels

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 80%

AC adapter included

Yes

Manual

Yes

Receiver weight

12 oz (340 g)

Maximum transfer distance

3937" (100 m)

Firmware upgradeable

Yes

Master (outer) case net weight

11.6 lbs (5.25 kg)

RJ-45 ports quantity

2

Cable types supported

Cat6, Cat6a

RJ-45 ports quantity (transmitter)

1

RJ-45 ports quantity (receiver)

1

USB data transfer rates

480 Mbit/s

Transmitter video port type

DVI-D

Transmitter width

5.04" (12.8 cm)

Transmitter depth

3.42" (8.69 cm)

Transmitter height

0.984" (2.5 cm)

Transmitter weight

12.3 oz (350 g)

Supported resolutions

1920x1200
1920x1080
1600x1200

Receiver local video port type

DVI-D

Receiver local keyboard/mouse port type

USB

PC Audio in

Yes

PC Audio out

Yes

Power consumption (transmitter) (max)

2.494 W

Transmitter local keyboard/mouse port type

USB

Receiver width

5.04" (12.8 cm)

Receiver depth

3.42" (8.69 cm)

Receiver height

0.984" (2.5 cm)

RS-232 ports

2

Power consumption (receiver) (max)

4.816 W

Specific References

ISBN

978-1-23456-789-0

EAN13

4719264648427

MPN

CE611-AT-G
