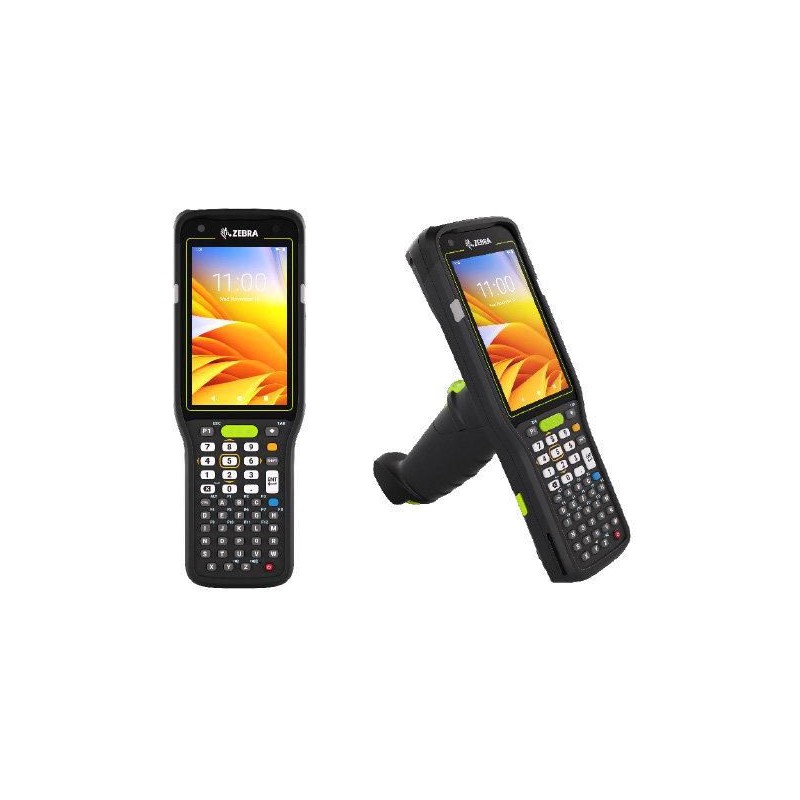

MC3401-0G1R63SS-A6
LAN, WIFI 6E, Gun, Bluetooth, NFC, 4.0" Display, Vibrator, Android GMS, SE58 Imager, 5MP FF + 13MP RF Camera, 6GB RAM / 128GB UFS, 38 Key, 7000mAh Standard Battery, Rest of World
Description
This Item:
* MC34, LAN, WIFI 6E, GUN, BT, NFC, 4.0" DISPLAY, VIBRATOR, GMS, SE58 IMAGER, 5MP FFC, 13MP RFC, 6GB RAM/128GB UFS, 38 KEY, 7000 MAH STD BATTERY, ROW
* This product is available only to resellers that have completed product qualification training.
______________________________________________________________________
The MC3400, an evolution of the MC3000 series, is a rugged mobile computer built for the 24x7 e-commerce economy. It offers four scanning engine variants for job-specific flexibility and features the latest Wi-Fi 6E connectivity. With three keypad options and an improved keyboard design, it enhances efficiency and accuracy. Available in straight shooter or gun form factor, it includes dual cameras, biometric authentication, and device tracking. Pre-installed with Ivanti Velocity and Staylinked’s SmartTE, it boosts data capture and workflow efficiency, empowering workforces across diverse tasks.
* Achieve full-shift productivity with two models: gun and straight-shooter
* Choose the right scanner for the job - 4 scan engine options (SE4710 for standard range, SE4770 for indoor/outdoor applications, SE55 from near up to 40 ft, for long range scanning use the SE58 that scans up to 100 ft)
* Choose from three keypads with improved design, that offer larger keys with optimized spacing for faster, accurate data entry—even with gloves
* High-resolution front and rear cameras are NOW available in both the gun and straight shooter form factors
* Backward compatibility to MC3300 chargers and batteries
* MC34, LAN, WIFI 6E, GUN, BT, NFC, 4.0" DISPLAY, VIBRATOR, GMS, SE58 IMAGER, 5MP FFC, 13MP RFC, 6GB RAM/128GB UFS, 38 KEY, 7000 MAH STD BATTERY, ROW
* This product is available only to resellers that have completed product qualification training.
______________________________________________________________________
The MC3400, an evolution of the MC3000 series, is a rugged mobile computer built for the 24x7 e-commerce economy. It offers four scanning engine variants for job-specific flexibility and features the latest Wi-Fi 6E connectivity. With three keypad options and an improved keyboard design, it enhances efficiency and accuracy. Available in straight shooter or gun form factor, it includes dual cameras, biometric authentication, and device tracking. Pre-installed with Ivanti Velocity and Staylinked’s SmartTE, it boosts data capture and workflow efficiency, empowering workforces across diverse tasks.
* Achieve full-shift productivity with two models: gun and straight-shooter
* Choose the right scanner for the job - 4 scan engine options (SE4710 for standard range, SE4770 for indoor/outdoor applications, SE55 from near up to 40 ft, for long range scanning use the SE58 that scans up to 100 ft)
* Choose from three keypads with improved design, that offer larger keys with optimized spacing for faster, accurate data entry—even with gloves
* High-resolution front and rear cameras are NOW available in both the gun and straight shooter form factors
* Backward compatibility to MC3300 chargers and batteries
Specifications
Audio
| Built-in microphone | Yes |
| Speakers | Mono |
Camera
| Auto focus | Yes |
| Built-in camera | Yes |
| Built-in flash | Yes |
| Front camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Rear camera resolution (numeric) | 13 MP |
Display
| Display diagonal | 4 " |
| Display glass type | Gorilla Glass |
| Display resolution | 800 x 480 pixels |
| Touch technology | Dual-touch |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Memory
| Compatible memory cards | MicroSD (TransFlash) |
| Flash memory | 128 GB |
| Flash memory type | UFS |
| Internal memory | 6 GB |
| Maximum memory card size | 2 |
Network
| Bluetooth | Yes |
| Data network | Not supported |
| Near Field Communication (NFC) | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Performance
| Drop proof | 180 cm |
| Phone function | No |
| Product colour | Black |
| Push-to-Talk (PTT) | Yes |
| Scanner type | 1D/2D |
| Vibrating alert | Yes |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Power
| Battery voltage | 3.6 V |
Processor
| Number of cores | 8 |
| Processor frequency | 2.4 GHz |
| Processor model | 4490 |
Sensors
| Accelerometer | Yes |
| Ambient light sensor | Yes |
| Gyroscope | Yes |
| Magnetometer | Yes |
Software
| Operating system installed | Android |
Vendor information
| Brand Name | Zebra |
| Warranty | 1 |
Product Details
2026-03-18
New
Data sheet
- Touch technology
- Dual-touch
- Front camera resolution (numeric)
- 5 MP
- Accelerometer
- Yes
- Ambient light sensor
- Yes
- Gyroscope
- Yes
- Flash memory
- 128 GB
- Auto focus
- Yes
- Vibrating alert
- Yes
- Flash memory type
- UFS
- Data network
- Not supported
- Betriebssystem installiert
- Android
- Prozessormodell
- 4490
- Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-C Anschlüsse
- 1
- Prozessorfrequenz
- 2.4 GHz
- Speakers
- Mono
- Magnetometer
- Yes
- Near Field Communication (NFC)
- Yes
- Bluetooth
- Yes
- Wi-Fi
- Yes
- Eingebautes Mikrophon
- Yes
- Wi-Fi-Standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
- Kompatible Speicherkarten
- MicroSD (TransFlash)
- Maximum Speicherkartengröße
- 2
- Berührungssensitiver Bildschirm
- Yes
- Bildschirmauflösung
- 800 x 480 Pixel
- Diagonale anzeigen
- 4 "
- Brand Name
- Zebra
- Warranty
- 1
- Betriebstemperatur (TT)
- -20 - 50 °C
- Lagertemperatur (TT)
- -40 - 70 °C
- Relative Luftfeuchtigkeit im Betrieb (HH)
- 5 - 95 %
- Interner Speicher
- 6 GB
- Batteriespannung
- 3.6 V
- Produktfarbe
- Black
- Auflösung der Rückfahrkamera (numerisch)
- 13 MP
- Vordere Kamera
- Yes
- Eingebaute Kamera
- Yes
- Touchscreen-Typ
- Capacitive
- Scanner type
- 1D/2D
- Zahl der Kerne
- 8
- Glastyp anzeigen
- Gorilla Glass
- Drop proof
- 180 cm
- Push-to-Talk (PTT)
- Yes
- Eingebautes Blitzlicht
- Yes
- Phone function
- No
Specific References
- MPN
- MC3401-0G1R63SS-A6
