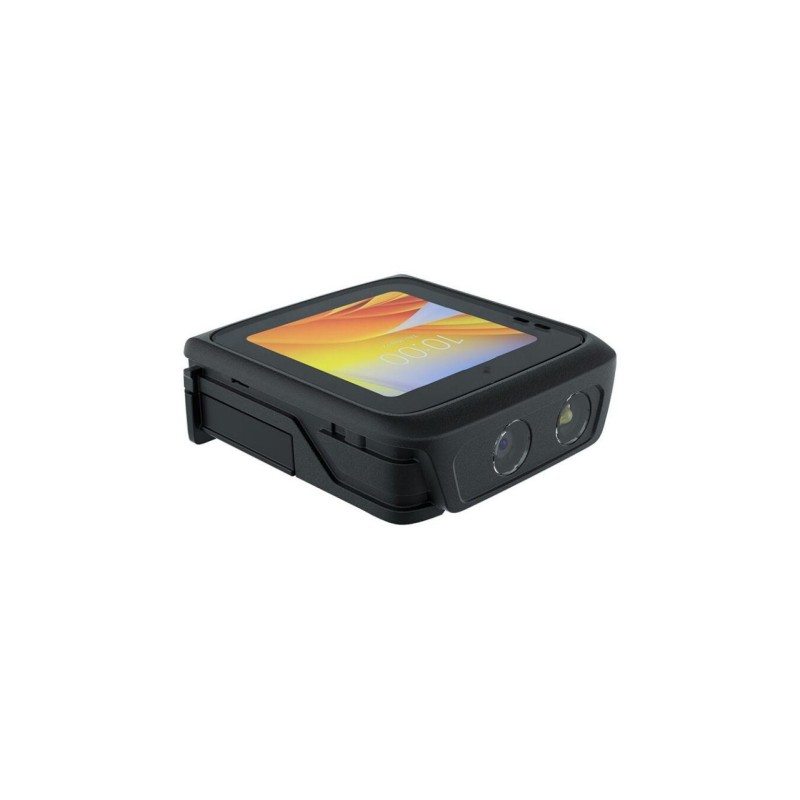

WS5001-0F2J302PEA6

UNPARALLELED FUNCTIONALITY AND FLEXIBILITY IN THE WORLD’S SMALLEST ALL-IN-ONE ANDROID ENTERPRISE-CLASS WEARABLE MOBILE COMPUTER
Every task worker without mobile access to relevant information and the rest of your workforce is forced to take more steps and more time to complete tasks, eroding operational efficiency. Now, connecting your disconnected workers is easy with Zebra’s WS50 — the world’s smallest Android enterprise-class wearable mobile computer. It’s rugged, modular and at home everywhere — from manufacturing and warehousing to retail and hospitality. It’s versatile — this flexible computing core is modular, allowing you to choose the mount that’s right for the job: wrist, back of hand or two-finger. It’s small but mighty, packed with powerful business class voice and data features that drive productivity and accuracy into every task. It’s lightweight and ergonomic, comfortable and never in the way. And with no host device required, it’s the first of its kind, offering powerful data capture with single device simplicity.

DESIGNED FOR MAXIMUM FLEXIBILITY
True ‘no-host’ one-piece wearable
With the all-in-one WS50, workers only need to wear one device to capture and access data instead of a host mobile computer and ring scanner, providing a true converged wearable solution. And push-to-talk (PTT) support eliminates the need for separate voice devices.

Wear it your way with modular mounting options
With three different wearing styles, the adaptable WS50 is ideal for virtually any task worker in practically any industry. The WS50 can be worn on a wrist, two fingers or the back of the hand.

ALL THE KEY FEATURES OF A FULL-SIZE MOBILE COMPUTER
Better connect your workforce with push-to-talk (PTT) and task management applications
All models are PTT ready, enabling managers and workers to instantly collaborate for faster issue resolution and increased staff productivity. All models also support task-management applications, enabling better staff utilization and management.

High-resolution camera for light barcode scanning and photo capture
A 13 MP camera in the wrist-mounted model supports occasional barcode scanning and can capture detailed photos to document proof of condition and more.

Advanced enterprise-class scanner for intense barcode scanning
The converged two-finger-and back-of-hand mount WS50 models include Zebra’s SE4770 imager, delivering superior data capture performance. Scan virtually any barcode in practically any condition, as fast as you can press the trigger — even if they are damaged or poorly printed. Superior motion tolerance enables the capture of barcodes, even if scanner and barcode are in motion. No need to depress the trigger for every scan — scan continuously with an optional integrated proximity sensor.

Zebra WS50. Display diagonal: 2", Display resolution: 460 x 460 pixels. Internal memory: 1 GB, Flash memory: 8 GB. Processor frequency: 2 GHz, Processor manufacturer: Qualcomm, Processor family: Snapdragon. Operating system installed: Android. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Barcode reader

Display diagonal	2"
Display resolution	460 x 460 pixels
Touchscreen	Yes
Display	AMOLED
Touchscreen type	Capacitive
Display glass type	Gorilla Glass
Internal memory	1 GB
Flash memory	8 GB
Compatible memory cards	Not supported
Processor frequency	2 GHz
Processor family	Snapdragon
Processor manufacturer	Qualcomm
Number of cores	4
Built-in processor	Yes
Wi-Fi	Yes
Bluetooth	Yes
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Bluetooth version	4.2
Bluetooth Low Energy (BLE)	Yes
Security algorithms	EAP-PWD, EAP-TLS, EAP-TTLS, PEAP, WEP, WPA, WPA-Enterprise, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-TKIP, WPA3, WPA3-SAE
Near Field Communication (NFC)	Yes
GPS (satellite)	No
Built-in camera	Yes
Rear camera resolution (numeric)	13 MP
Built-in microphone	Yes
Speakers	Yes
USB 2.0 ports quantity	1
Product color	Black
Barcode reader	Yes
Phone function	No
Scanner type	1D/2D
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, Industrial 2 of 5, MSI, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
International Protection (IP) code	IP65
Handle(s)	Yes
Drop proof	Yes
Drop proof	47.2" (120 cm)
Ambient light sensor	Yes
Accelerometer	Yes
Proximity sensor	Yes
Gyroscope	Yes
Operating system installed	Android
Operating system version	11
Battery capacity	1300 mAh
Weight	2.47 oz (70 g)
Width	2.44" (62 mm)
Depth	2.32" (59 mm)
Height	0.709" (18 mm)
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-10 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
