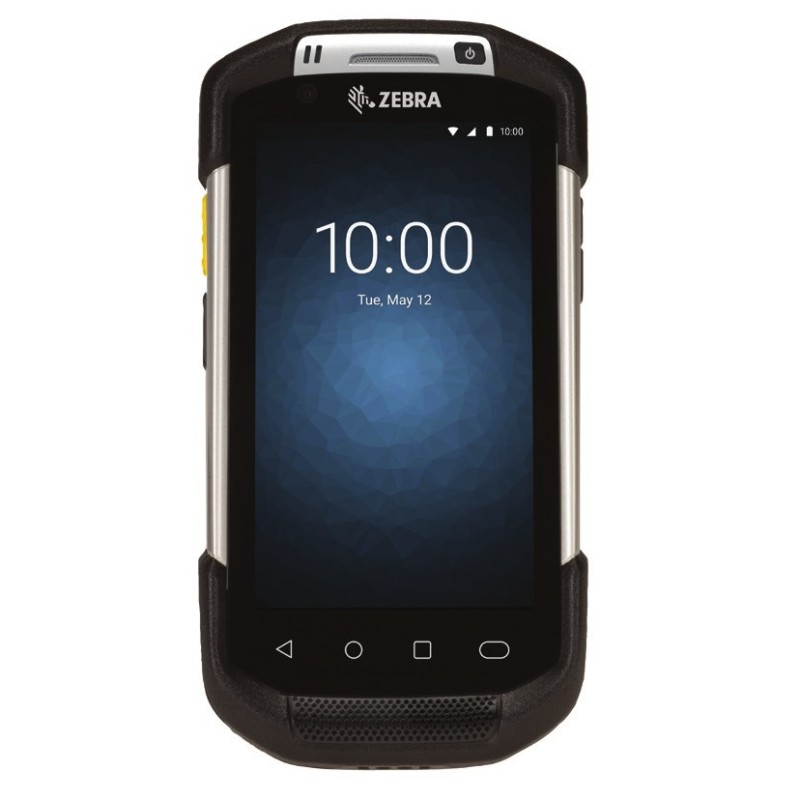

TC75FK-22F22AD-A6

YOUR FRONT LINE TO A SMARTER ENTERPRISE
Your field workforce needs a mobile computer to access the people and information required to maximize efficiency and better serve your customers. You want to give them an enterprise-class handheld built for life out in the field — yet your workers expect a device that is every bit as refined and easy-to-use as their own consumer smartphone. The TC75 Series is the Android™ enterprise touch computer that delivers it all. A choice of Android OS, fortified for use in the enterprise. A rugged design that delivers reliable everyday operation.

Anywhere anytime access to virtually any information in your back-end systems. The ability to capture more types of data faster than ever before. Instant push-to-talk communications with co-workers out in the field as well as supervisors, dispatch and more back in the office. 4G LTE support for a robust wireless connection on the world’s fastest cellular networks. And a full complement of accessories meets the unique needs of virtually any mobile worker. The TC75 Series — the easy way to empower your field teams with a true mobile office.

Mx — Making Android a More Robust Enterprise OS
Every TC75 Series ships with Mobility Extensions (Mx), a series of features that make Android a more robust enterprise- class operating system. Mx minimizes IT support time and maximizes worker productivity and device uptime by providing better control of your mobile devices, application access and Wi-Fi performance and security. Standard Configuration TC75 and TC75x devices come with Google Mobile Services (GMS) which provides integrated Google applications such as Gmail and Google Maps. Professional Configuration TC75 and TC75x devices ship without GMS, removing GMS applications and services. Both configurations are based on Android Open Source (AOSP) and ship with respective Android Enterprise functionality.

World-class Data Capture
An integrated enterprise-class imager offers Zebra’s proprietary PRZM Intelligent Imaging technology, a megapixel sensor and advanced optics, enabling the lightning-fast capture of 1D and 2D barcodes in virtually any condition. The rear-facing color camera enables the easy capture of high-resolution photos, signatures, videos and more, so workers can capture more types of business intelligence to streamline more business processes.

The front camera allows workers to place a video call to get the on-the-spot assistance they need. And Near Field Communications automates identity verification at facility entry points.

Maximum Data Entry Flexibility with an Industry Leading Dual Mode Touch Panel
Let your users choose their preferred data input pair: finger and gloved finger or finger and stylus — ideal for crisp signature capture. The intelligent 4.7 in. display automatically adjusts as needed, unlike competitive devices that require setting adjustments every time the user switches data input method.

Automatically Capture Data and Process Entire Documents
With SimulScan Document Capture, your workers can simultaneously capture barcodes, text fields, phone numbers, images, signatures and even check boxes in the time it takes to press a button, improving invoicing speed, order speed and more.

Superior Audio Quality and Functionality for a New Level of Voice Flexibility
Up to four times the loudness of popular smartphones and noise cancelling technology provides crystal clear audio on both ends of every call. Support for Workforce Connect Push-to-Talk (PTT)
Express and Pro provides an instant connection to co-workers in the field, plus supervisors and other support staff back in the office.

Zebra TC75x. Display diagonal: 4.7", Display resolution: 1280 x 720 pixels, Touch technology: Multi-touch. Internal memory: 2 GB, Flash memory: 16 GB, Compatible memory cards: MicroSD (TransFlash), SDXC. Processor frequency: 1.8 GHz, Processor manufacturer: Qualcomm, Processor family: Snapdragon, Processor model: 650. Operating system installed: Android. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac). Barcode reader

Display diagonal	4.7"
Display resolution	1280 x 720 pixels
Touchscreen	Yes
Touch technology	Multi-touch
Display glass type	Gorilla Glass
Internal memory	2 GB
Flash memory	16 GB
Compatible memory cards	MicroSD (TransFlash), SDXC
Maximum memory card size	128 GB
Processor frequency	1.8 GHz
Processor family	Snapdragon
Processor model	650
Processor manufacturer	Qualcomm
Number of cores	6
Wi-Fi	Yes
Bluetooth	Yes
Data network	Edge, GPRS, GSM, HSPA, HSPA+, LTE, UMTS
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Bluetooth Low Energy (BLE)	Yes
Bluetooth profiles	HFP
SIM card type	NanoSIM
GSM bands supported	850,900,1800,1900 MHz
Security algorithms	40-bit WEP, 104-bit WEP, AES, EAP-FAST, EAP-GTC, EAP-LEAP, EAP-TLS, EAP-TTLS, FIPS 140-2, MSCHAPv2, PEAP, TKIP, WPA, WPA2
Near Field Communication (NFC)	Yes
GPS (satellite)	Yes
Assisted GPS (A-GPS)	Yes
GLONASS	Yes
BeiDou	Yes
Galileo	Yes
Built-in camera	Yes
Rear camera resolution (numeric)	13 MP
Front camera	Yes
Front camera resolution (numeric)	1.3 MP
Auto focus	Yes
Built-in microphone	Yes
Speakers	Yes
USB 2.0 ports quantity	1
Product color	Black, Gray
Barcode reader	Yes
Phone function	Yes
Scanner type	1D/2D
2D (matrix & stacked) barcodes supported	Code 39
Vibrating alert	Yes
International Protection (IP) code	IP65, IP67
Drop proof	Yes
Drop proof	0.945" (2.4 cm)
Push-to-Talk (PTT)	Yes
Operating system installed	Android
Operating system version	6.0
Battery capacity	4620 mAh
Battery technology	Lithium-Ion (Li-Ion)
Battery voltage	3.7 V
Weight	13.3 oz (376 g)
Width	3.31" (84 mm)
Depth	1.1" (28 mm)
Height	6.34" (161 mm)
Operating relative humidity (H-H)	5 - 85%
Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
