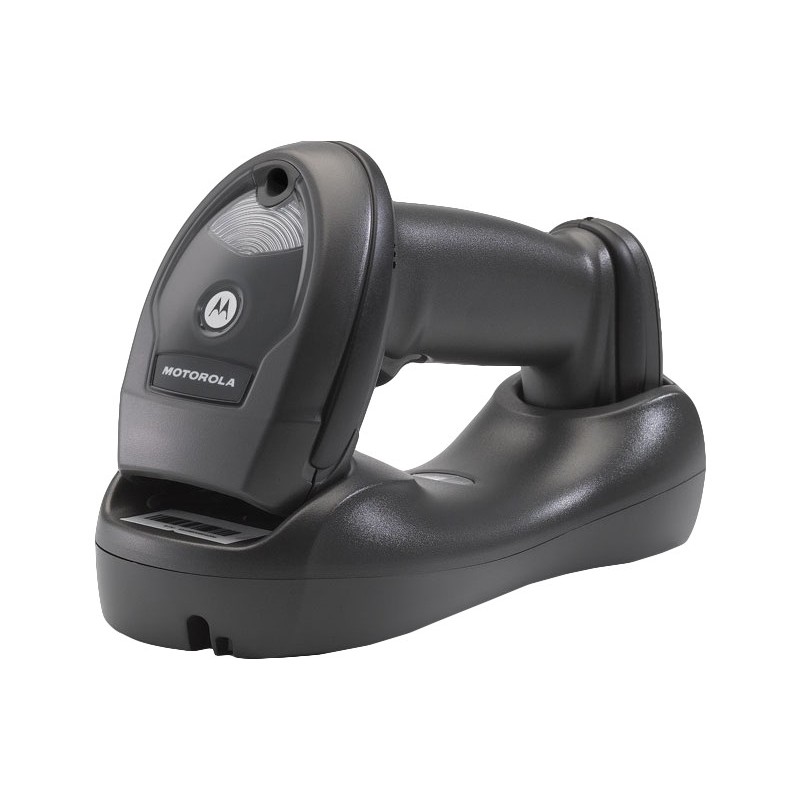

LI4278-TRBU0100ZWR

The LI4278 takes 1D bar code scanning to the next level, allowing workers to scan faster and farther as they can capture virtually any 1D bar code. Built for all day and everyday use, the LI4278 offers cordless freedom with Bluetooth compatibility. It also offers better encryption for improved security and better overall wireless performance. The LI4278 is backward compatible with its key accessory — the cradle — which works with its cousins, the LS4278 and DS6878. Superior battery power management delivers the largest number of scans per battery charge to support scan intensive applications. You can use it in dusty and wet environments and it can survive a 6 foot/1.8 m drop.

Excellent 1D scanning performance
Delivers superior scanning speed and a wide data capture range

Captures virtually all 1D bar codes on any surface — including mobile phone displays
Capture labels printed on traditional paper labels as well as mobile bar codes that may be displayed on a mobile phone, tablet or computer screen

Wide working range
Reads UPC barcodes from 1 in./2.54 cm to 30 in./76.2 cm as well as high density codes at extended ranges for application flexibility

Superior motion and angular tolerance
Bar codes can be captured faster, and there is no need to pause between scans or align scanner and bar code

Built-in rechargeable battery
Provides largest number of scans per charge – easily provides a full day of service in the highest usage profiles; replaceable battery ensures long lifecycle

Compatible with 123Scan2 and Remote Scanner Management (RSM)
Dramatically reduces management time and cost, from initial configuration to day-to-day management

Withstands 100 consecutive drops to concrete
Protects against downtime from breakage due to everyday drops

Flexible mounting — vertical or horizontal
Desktop cradle provides versatility to accommodate your unique environment

Bluetooth 2.1
Provides better security, better performance, better energy management and much easier pairing over the Bluetooth wireless connection

Backward compatible
Works with LS4278 cradles, providing a very cost-effective upgrade path

Motorola LI4278. Scanner type: 1D, Read rate (max): 547 reads/s, Wavelength: 617 nm. Standard interfaces: Bluetooth, USB. Weight: 7.9 oz (224 g), Width: 2.76" (70 mm), Depth: 7.32" (186 mm)

Scanner type	1D
Read rate (max)	547 reads/s
Wavelength	617 nm
Tilt reading angle	-45 - 45°
Pitch reading angle	-65 - 65°
Yaw reading angle	-65 - 65°
Maximum scan width	30" (76.2 cm)
Decoding standards	UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13
Standard interfaces	Bluetooth, USB
Bluetooth	Yes
Weight	7.9 oz (224 g)
Width	2.76" (70 mm)
Depth	7.32" (186 mm)
Height	3.86" (98 mm)
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Harmonized System (HS) code	84716070
