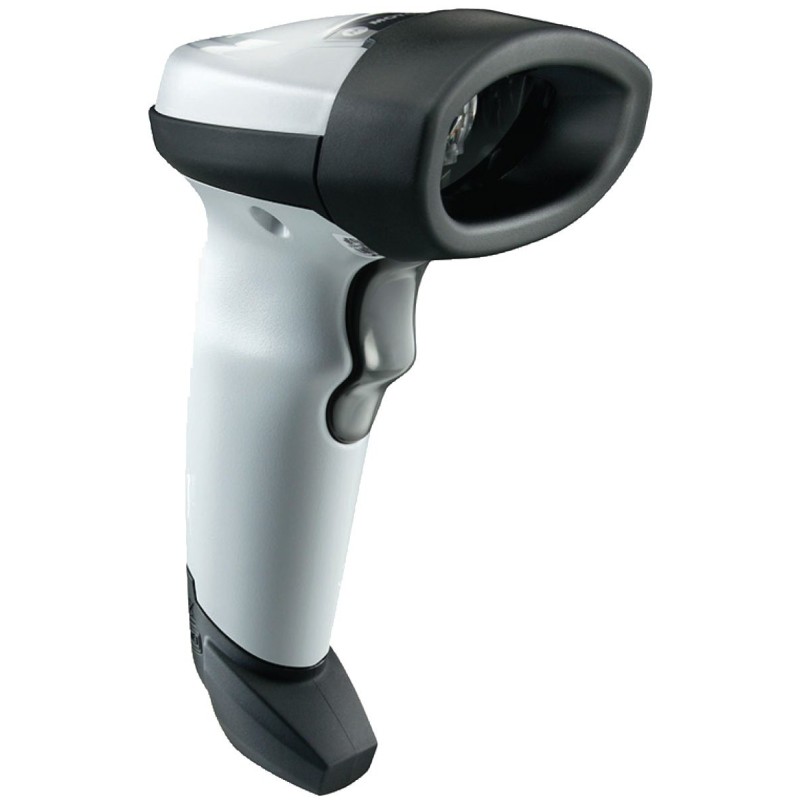

LI2208-SR6U2100AZW - 13-LI2208-SR6U2100AZW

Whether your workers are scanning bar codes printed on paper labels or electronic bar codes displayed on the screen of a mobile phone, tablet or computer, the best-in-class LI2208 linear imager delivers unparalleled performance, every time.The next generation in 1D scanning, the LI2208 provides the same reliability and ergonomics of our most popular scanner, the LS2208, with enhanced features that let you scan more types of bar codes at a greater distance. From the retail POS to shipping/receiving and hotel check-in, the LI2208 allows your workers to better meet the needs of your business.

Excellent 1D scanning performance
Delivers superior scanning speed and a wide data capture range

Captures virtually all 1D bar codes on any surface — including mobile phone displays
Capture bar codes printed on traditional paper labels or displayed on the screen of a mobile phone, tablet or computer

Industry-leading working range
Reads 13 mil 100% UPC bar codes from 1 in./2.54 cm to over 30 in./76.2 cm as well as high density codes and extended ranges for greater application flexibility

Patented single circuit board construction
Maximizes durability and reduces downtime by removing the most common points of failure

Compatible with 123Scan² and Scanner Management Service (SMS)
Dramatically reduces management time and cost, from initial configuration to day-to-day management; SDK available for custom development

Superior motion and angular tolerance
Bar codes can be captured faster, and there is no need to pause during scans

International keyboard support
Support for over 90 international keyboards enables easy deployment anywhere in the world

Withstands 100 consecutive drops to concrete and 1,000 consecutive 1.64 ft./0.5 m tumbles
Ensures reliable operation despite the inevitable everyday drops to help maximize uptime

Flexible modes — handheld and presentation
Gooseneck Intellistand enables presentation scanning and automatic switching between hands-free and handheld operation

Motorola LI2208. Type: Handheld bar code reader, Scanner type: 1D, Sensor type: Linear. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 82.7" (2.1 m). Product color: White, International Protection (IP) code: IP42, Certification: EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC.... Power source type: DC, Input voltage: 5 V, Power consumption: 165 mA. Weight: 4.94 oz (140 g), Width: 2.64" (67 mm), Depth: 3.9" (99 mm)

Type	Handheld bar code reader
Scanner type	1D
Sensor type	Linear
Linear (1D) barcodes supported	Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, JAN
Read rate (max)	547 reads/s
Light levels (direct sunlight)	0 - 108000 lx
Wavelength	617 nm
Pitch reading angle	-45 - 45°
Connectivity technology	Wired
Standard interfaces	USB
Cable length	82.7" (2.1 m)
Product color	White
International Protection (IP) code	IP42
Certification	EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1 LED Class 1
Power source type	DC
Input voltage	5 V
Power consumption	165 mA
Weight	4.94 oz (140 g)
Width	2.64" (67 mm)
Depth	3.9" (99 mm)
Height	6.3" (160 mm)
Cables included	USB
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Compliance certificates	RoHS
Harmonized System (HS) code	84716070
